1MP 720P Ov9726 Sensor Laptop Camera Module advertising machine Camera Module

Product category:

USB Camera Board

SKU:

216720

Price:

$4.80

Description

Product Name	Laptop & advertising machine Camera Module
Module No	BMNB20231W V33-66

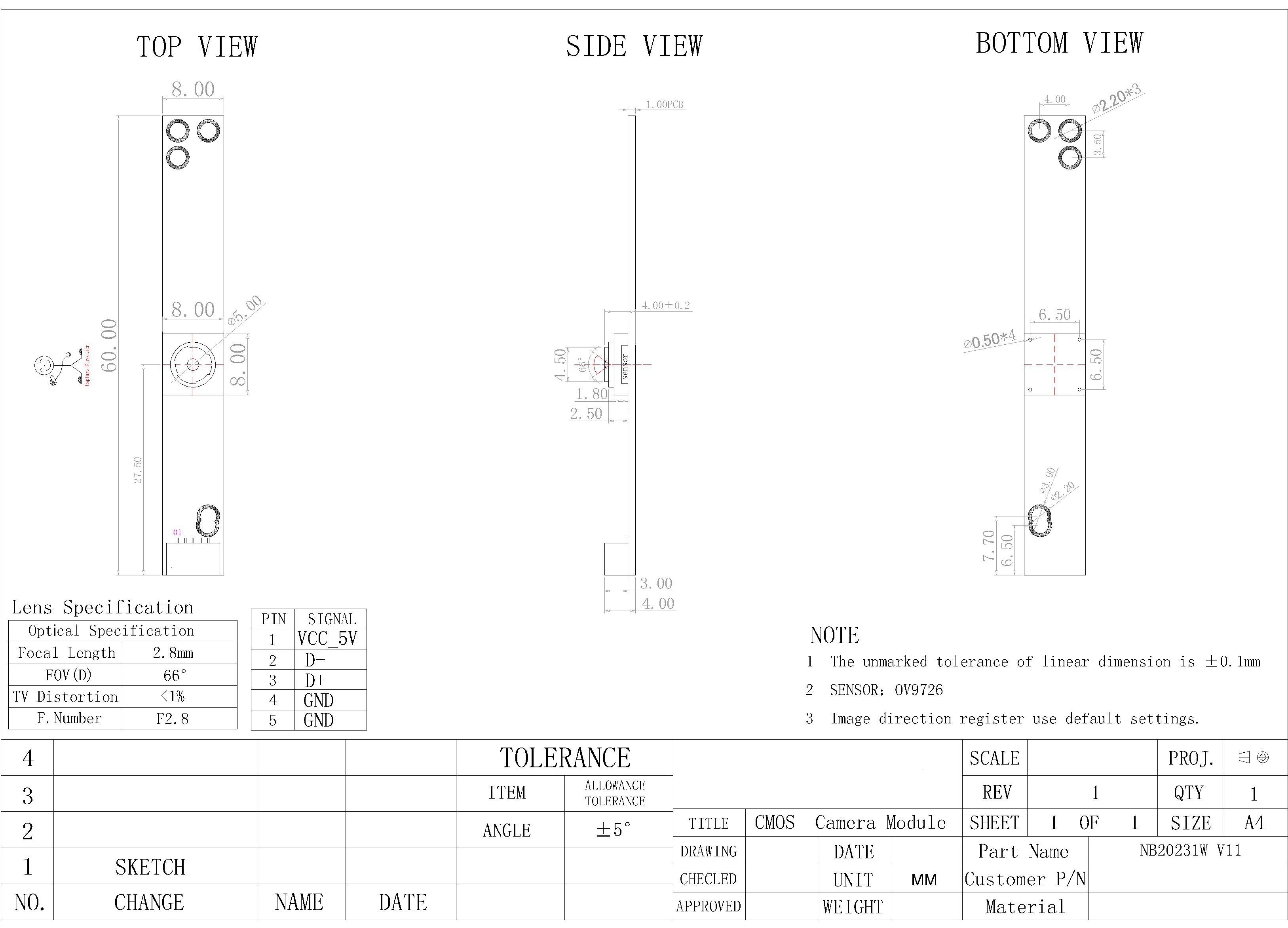

Module Size	60mm × 8mm × 4.0mm±0.2MM
Features	1. Standard advertising machine all-in-one machine structure, hole position 2. The product is cost-effective
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	640 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9726 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	1300mV /（lux-sec）
Pixel Size	1.75µm x 1.75µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS
S/N Ratio	36 db
Max Dynamic Range	70 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	3P
F/No	2.8
EFL	2.8 mm
FOV	66°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
