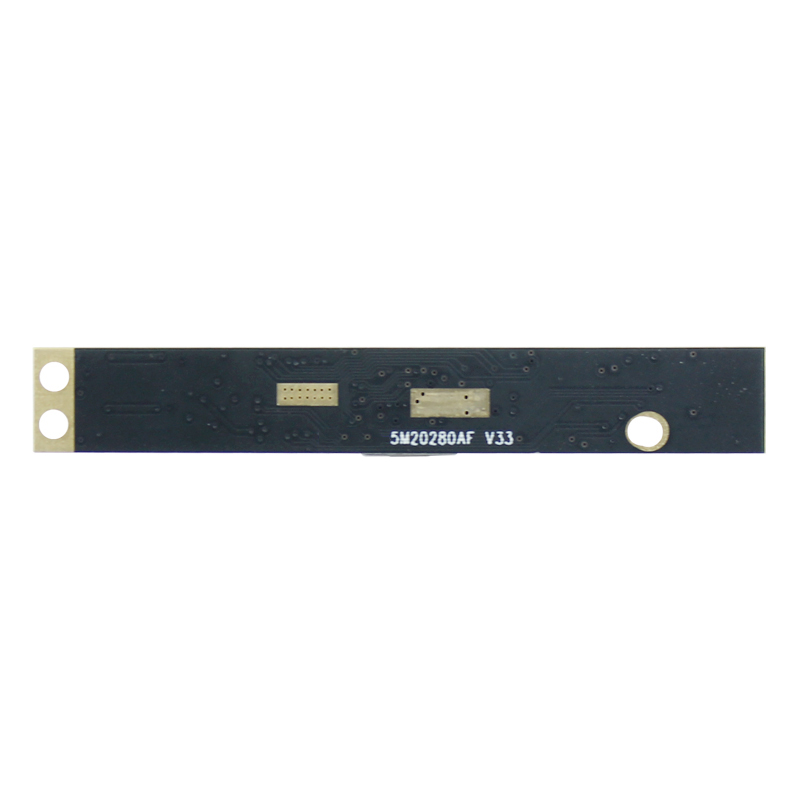

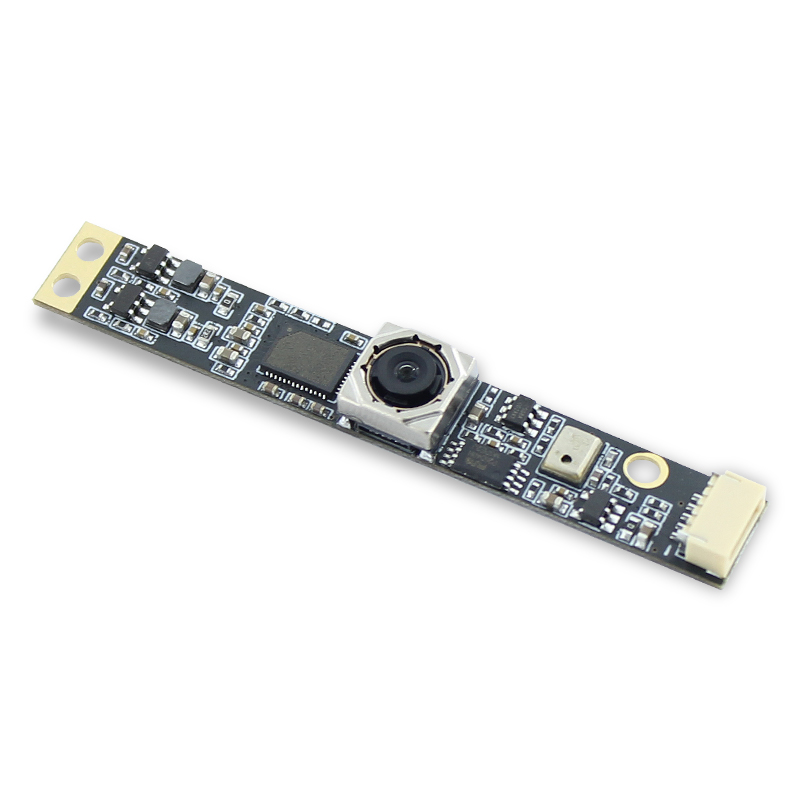

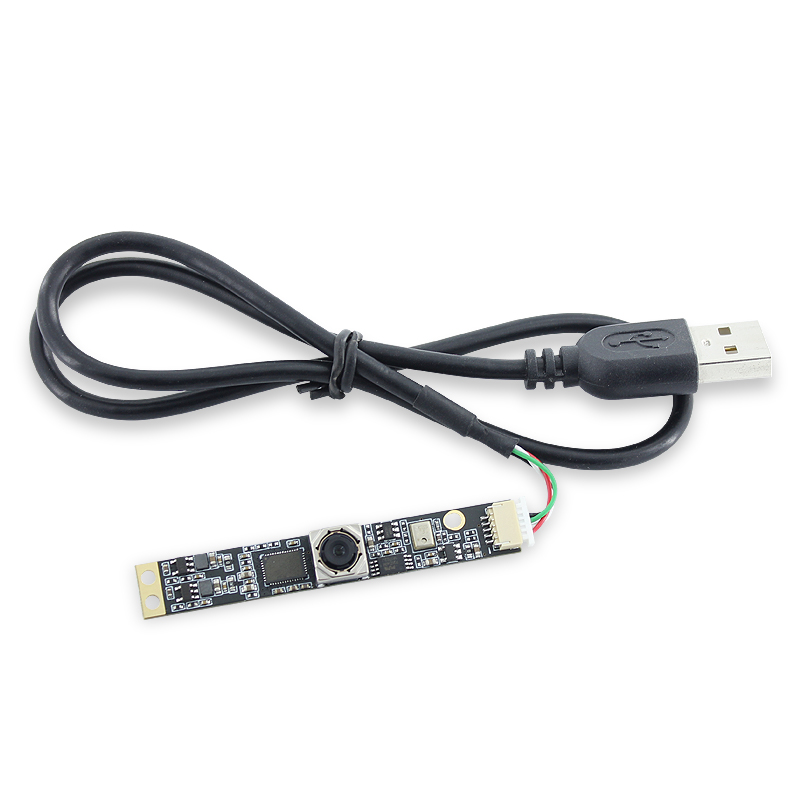

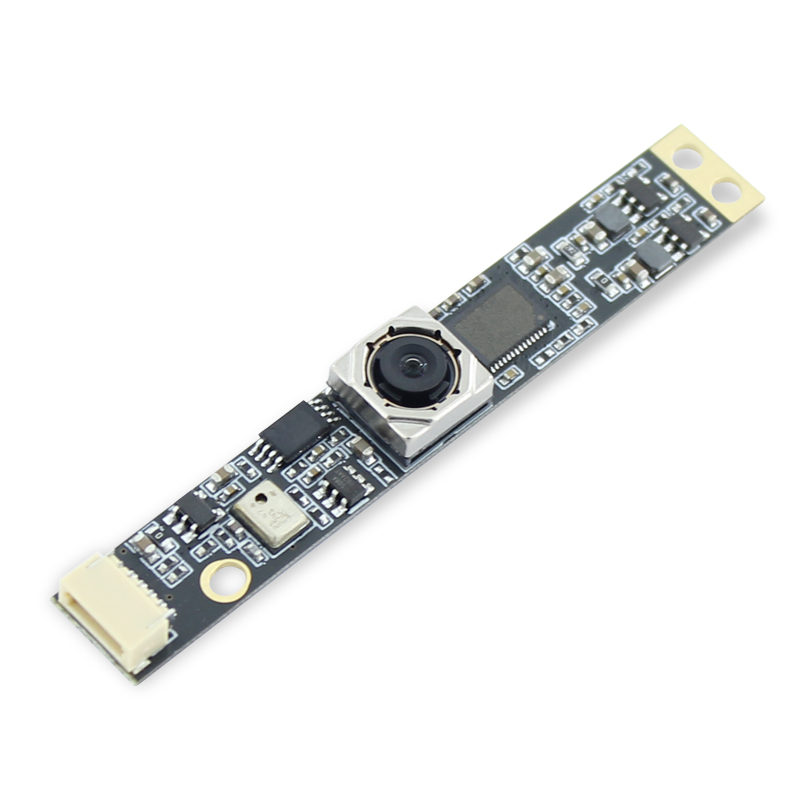

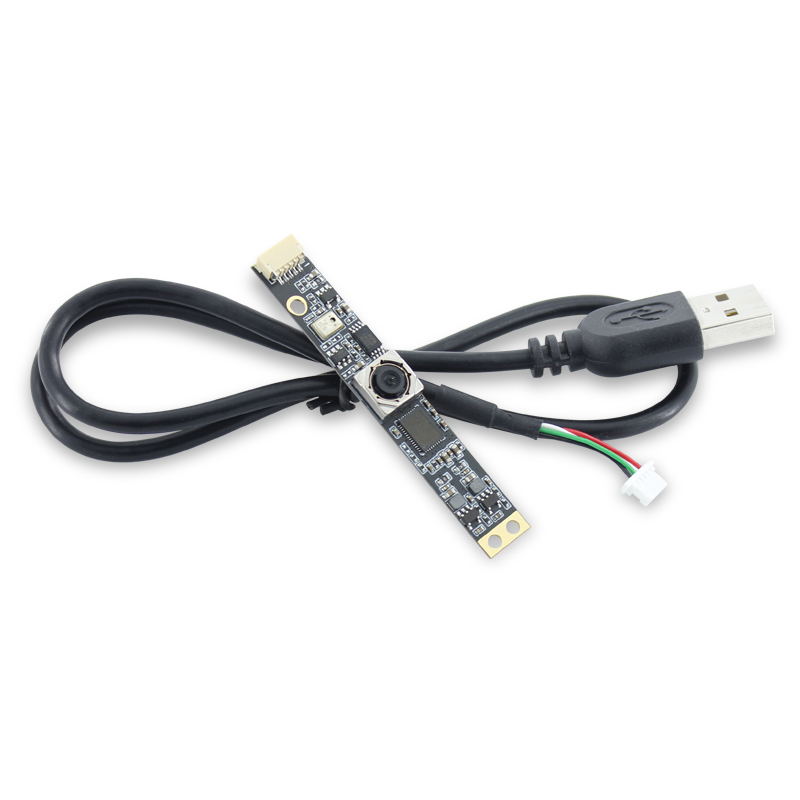

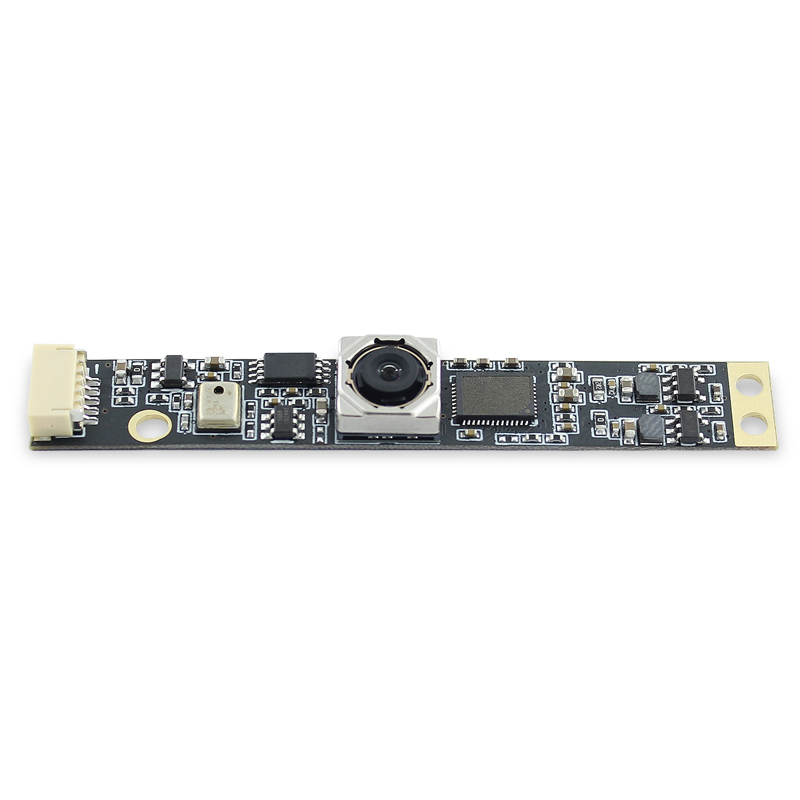

5MP 2K Camera Module FOV 120 Degree Desktop PC Camera Module

Product category:

USB Camera Board

SKU:

216591

Price:

$18.00

Description

Product Name	5MP 2K Desktop Computers Camera Module
Module No	BM5M20280AF V33 - 120
Module Size	62mm × 9mm × 5.30mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	740 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5647 (1/4" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
S/N Ratio	34db
Max Dynamic Range	67db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	6P
F/No	2.4
EFL	1.573 mm
FOV	120°
TV Distortion	<-6.75%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
