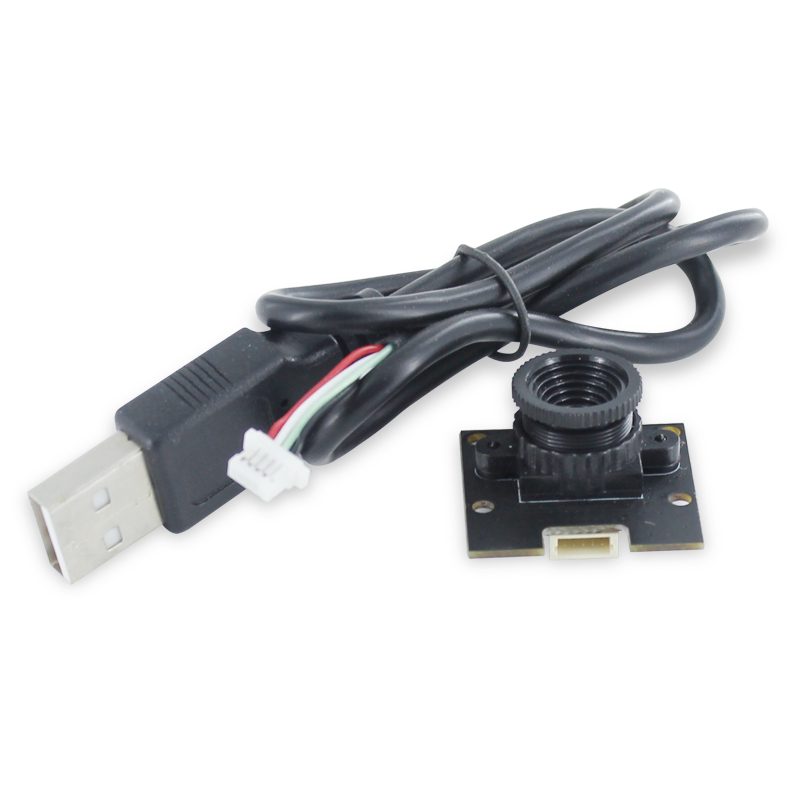

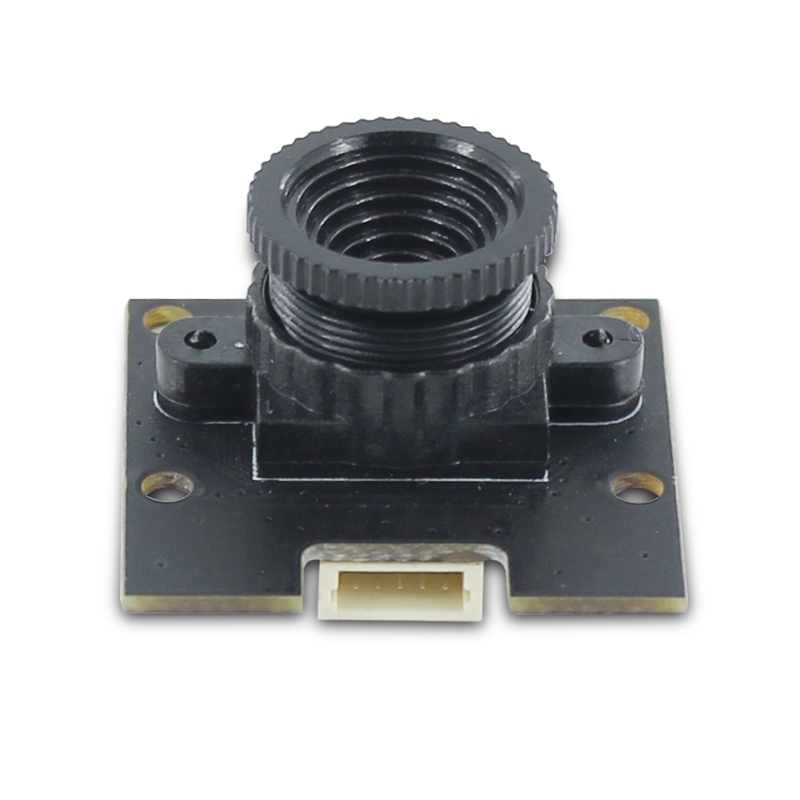

1mp 720P HD usb raspberry pi 720p Mini usb Camera face recognition cmos camera module

Product category:

USB Camera Board

SKU:

216879

Price:

$6.00

Description

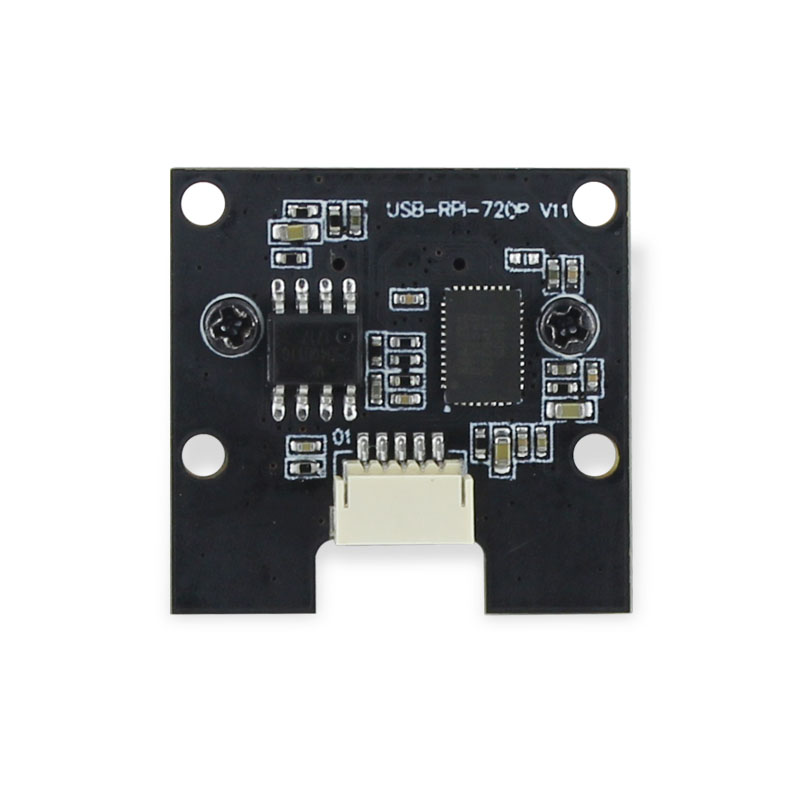

Module No.	BMUSB-PRI-720P V11
Module Size	25mm × 24mm × 4.25mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9726 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	1300mv /（lux-sec）
Pixel Size	1.75µm x 1.75µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x720 30FPS / YUY2 960x720 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 30FPS
FOV	56°
Certifications	FCC/CE/ROSH
