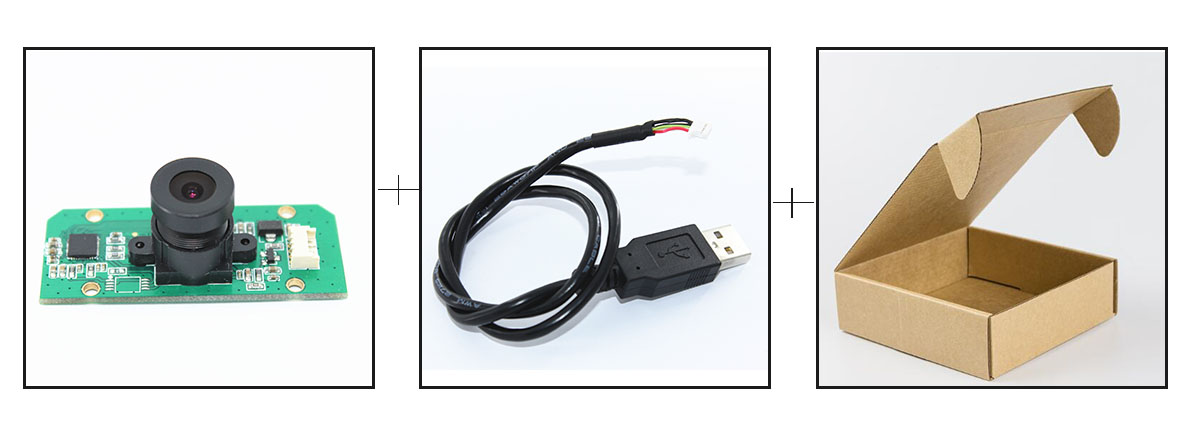

Qr Code Scanner for 0.3 MP HD Miniature Digital Camera Module

Error message

Notice: Undefined index: #formatter in imagewebp_preprocess_field() (line 195 of sites/all/modules/imagewebp/imagewebp.module).

Product category:

SKU:

216771

Price:

$12.00

Description

Module No.	1302 S1.0
Module Size	52.2mm × 21.2mm × 18.75mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Green
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	600 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV7725 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	3.0V /（lux-sec）
Pixel Size	6.0µm x 6.0µm
Maximum Image Transfer Rate	MJPEG 160x120 60FPS / YUY2 160x120 60FPS MJPEG 320x240 60FPS / YUY2 320x240 60FPS MJPEG 352x288 60FPS / YUY2 352x288 60FPS MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 15FPS
S/N Ratio	50db
Max Dynamic Range	60db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4G+IR
F/No	2.0
EFL	2.6 mm
FOV	120°
TV Distortion	<-50%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
