Ov9281 720P Global Shutter Black And White USB3.0 Dual Camera Module For 3D Applications

Product category:

USB Camera Board

SKU:

216773

Price:

$67.20

Quantity	Price
1 - 499	$67.20
500 - 999	$63.25
1000 - Unlimited	$59.40

full product footer

Description

Specification

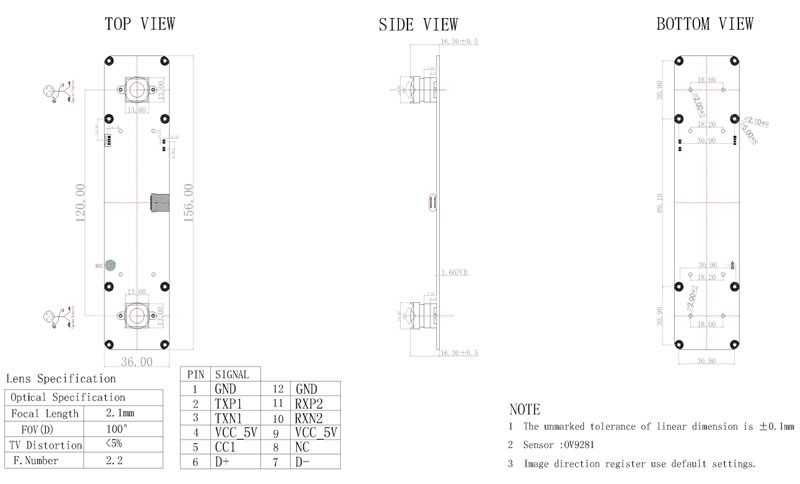

Module No.	BMW2237-2 V11
Module Size	156mm × 36mm × 16.30mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9281 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2560*720
Sensitivity	1300mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 1280x400 120FPS / YUY2 1280x400 120FPS MJPEG 1280x480 100FPS / YUY2 1280x480 100FPS MJPEG 1600x600 100FPS / YUY2 1600x600 100FPS MJPEG 2560x720 60FPS / YUY2 2560x720 60FPS
S/N Ratio	38 db
Max Dynamic Range	68 db
Shutter type	Global shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.2
EFL	2.1 mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

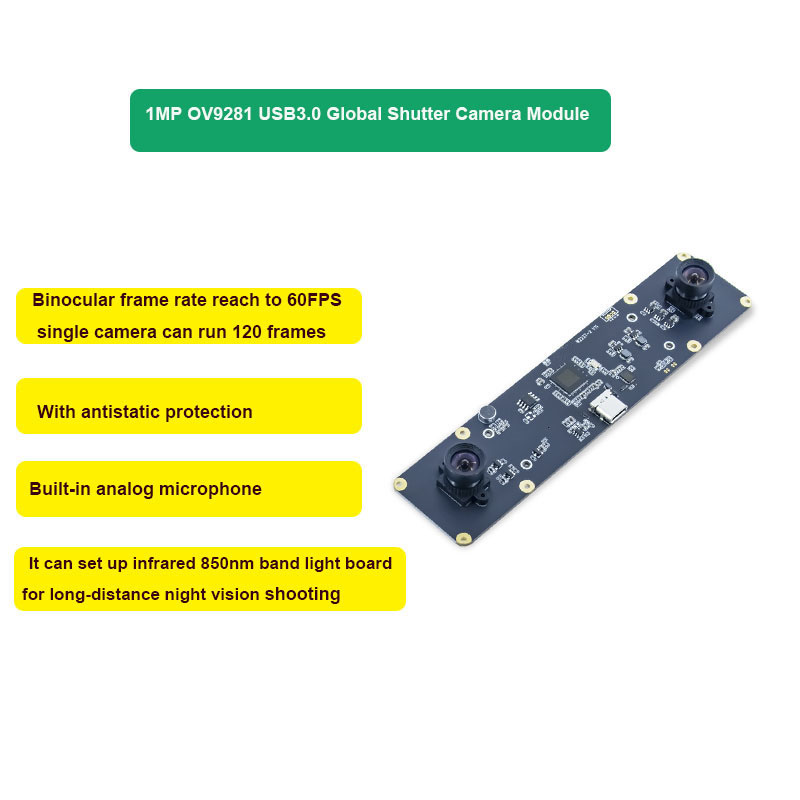

* Product performance description

1. Global exposure black and white camera module

2. New generation USB3.0 binocular camera module: YUY2 has the same frame rate as
MJPEG, the color consistency of the left and right cameras is optimized and improved, and the attribute parameters can be adjusted
at the same time

3. High frame rate binocular 60 frames, single head running 120 frames

4. Can set up infrared 850nm band light
board, long-distance night vision shooting

5. Built-in analog microphone

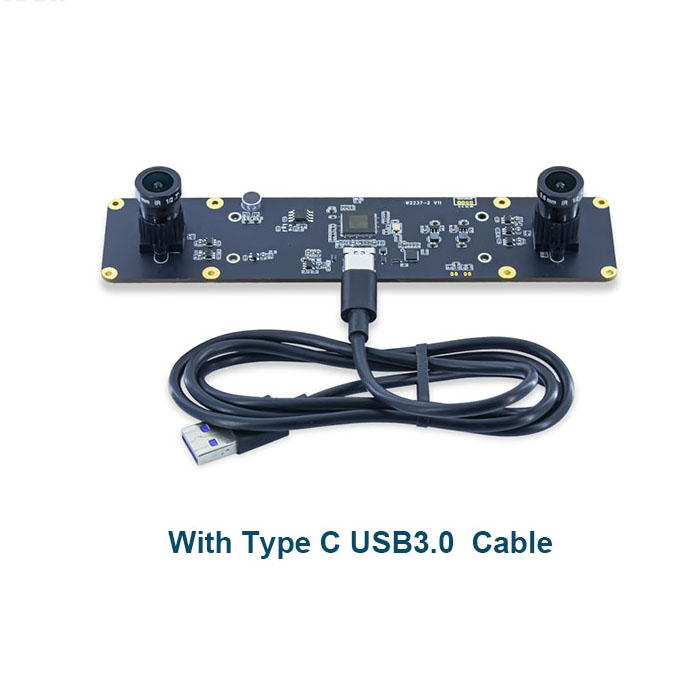

6. Do not use other cables and mobile phone charging data
cables at will - otherwise run USB2.0-YUY2 without high frames

7. This model comes with antistatic protection
