OV3640 Auto Focus Usb Microphone Cmos 3Mp Camera Module For Advertising Equipment

Product category:

USB Camera Board

SKU:

216927

Price:

$10.80

Description

Product Description

Module No.	BM3M20278 V11

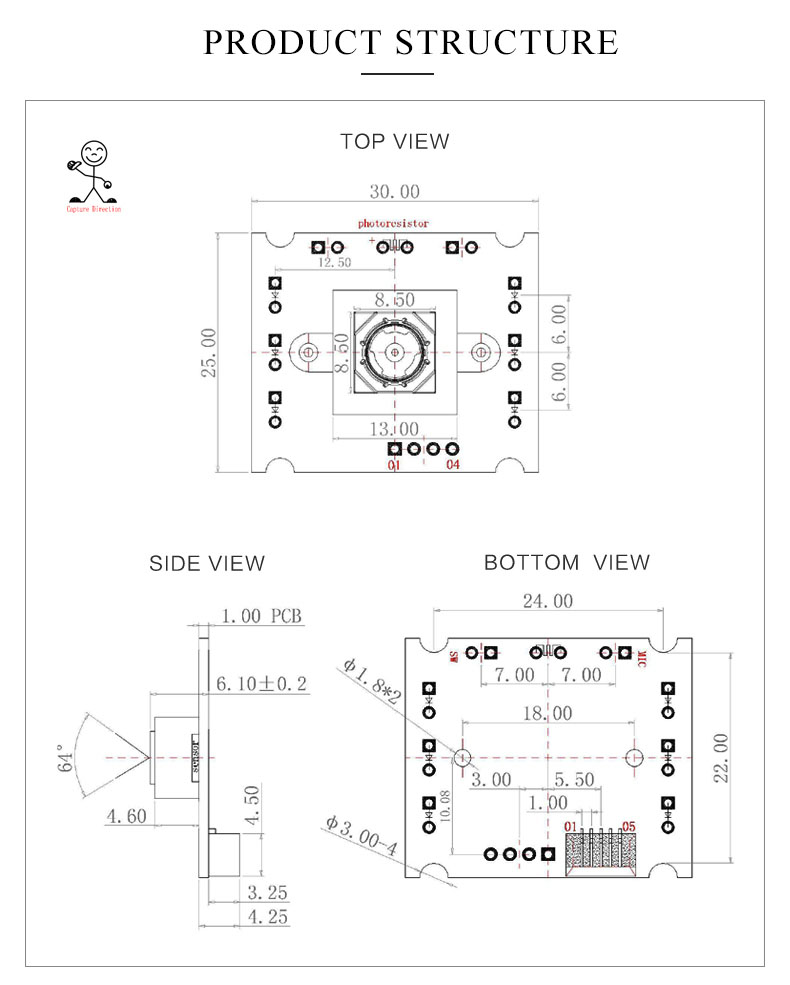

Module Size	30mm × 25mm × 6.1mm±0.2MM
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	750mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV3640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2048*1536
Sensitivity	670mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 320x240 15FPS / YUY2 320x240 17FPS
	MJPEG 352x288 15FPS / YUY2 352x288 17FPS
	MJPEG 640x480 15FPS / YUY2 640x480 17FPS
	MJPEG 1280x1204 5FPS / YUY2 1280X1204 3FPS
	MJPEG 1600x1200 5FPS / YUY2 1600X1200 3FPS
	MJPEG 2048x1536 5FPS / YUY2 2048x1536 3FPS
S/N Ratio	34 db
Max Dynamic Range	70 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.4
EFL	3.5 mm
FOV	64°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

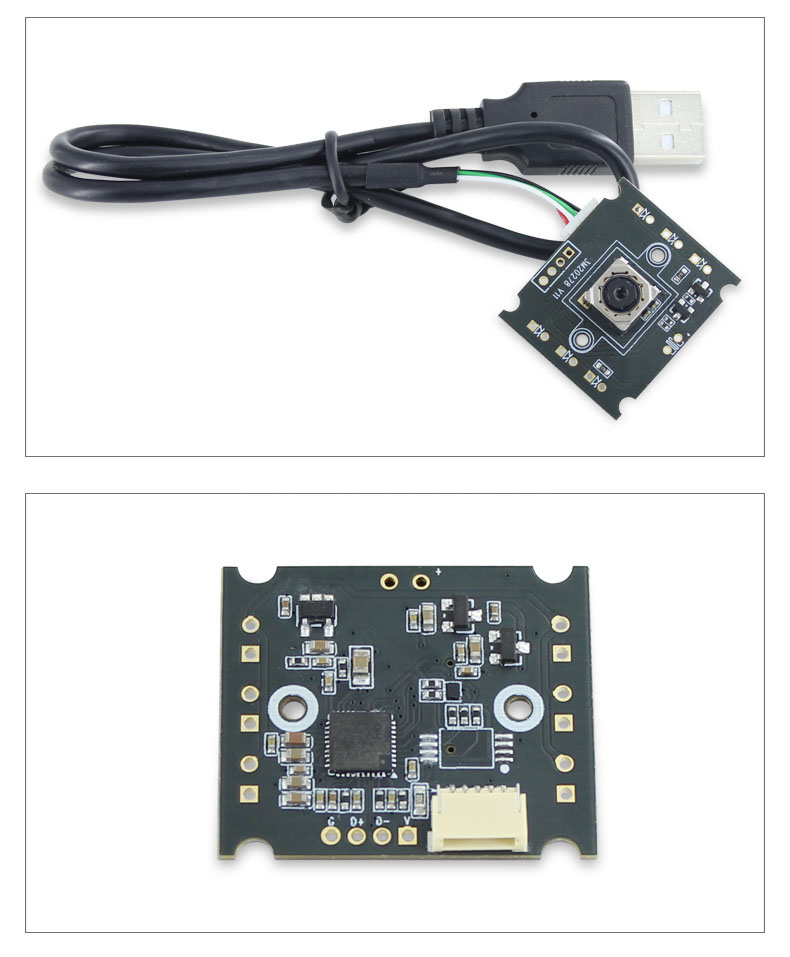

Detailed Images

216927-desc-OV3640-Auto-Focus-Usb-Microphone-Cmos-3Mp-Camera-Module-For-Advertising-Equipment-3.jpg
