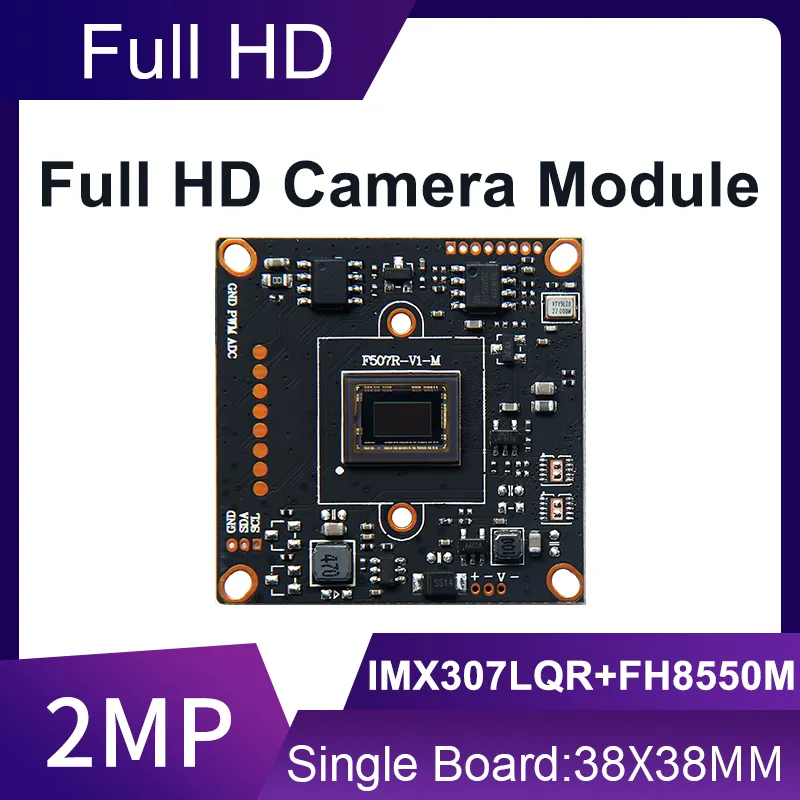

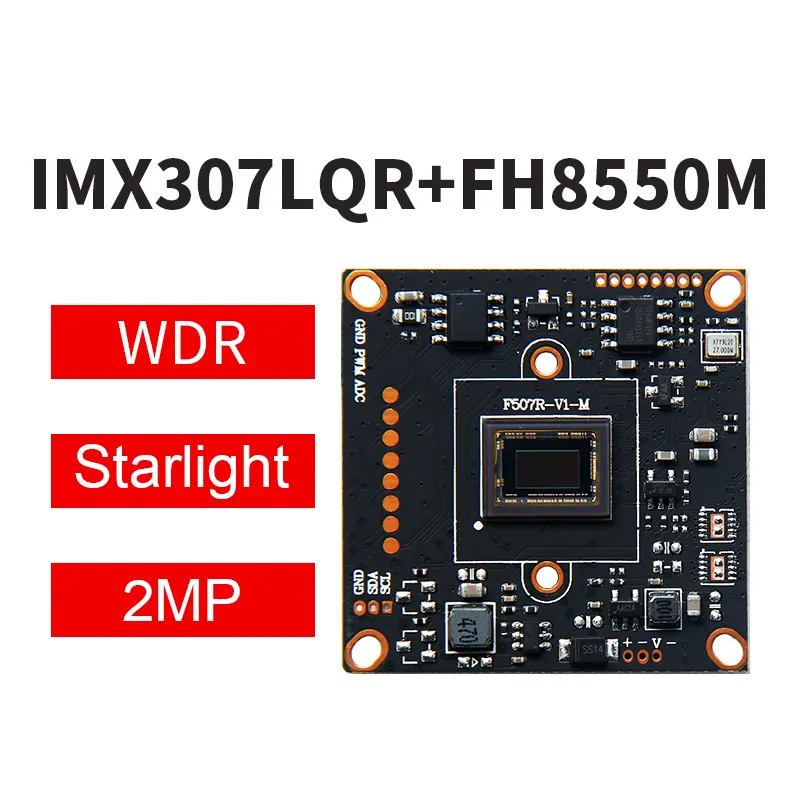

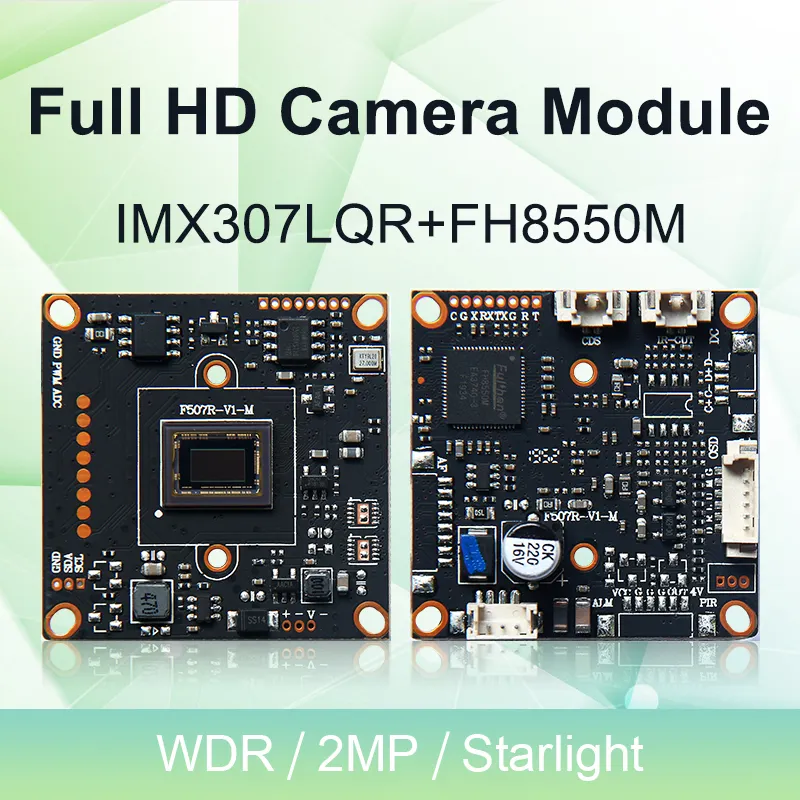

IMX307 Auto Focus 2MP AHD Camera Board Ytot Motorized Zoom Lenses Starlight WDR Support TVI CVI CVBS

Product category:

Camera Board

SKU:

200825

Price:

$17.50

Quantity	Price
1 - 999	$17.50
1000 - Unlimited	$17.00

Description

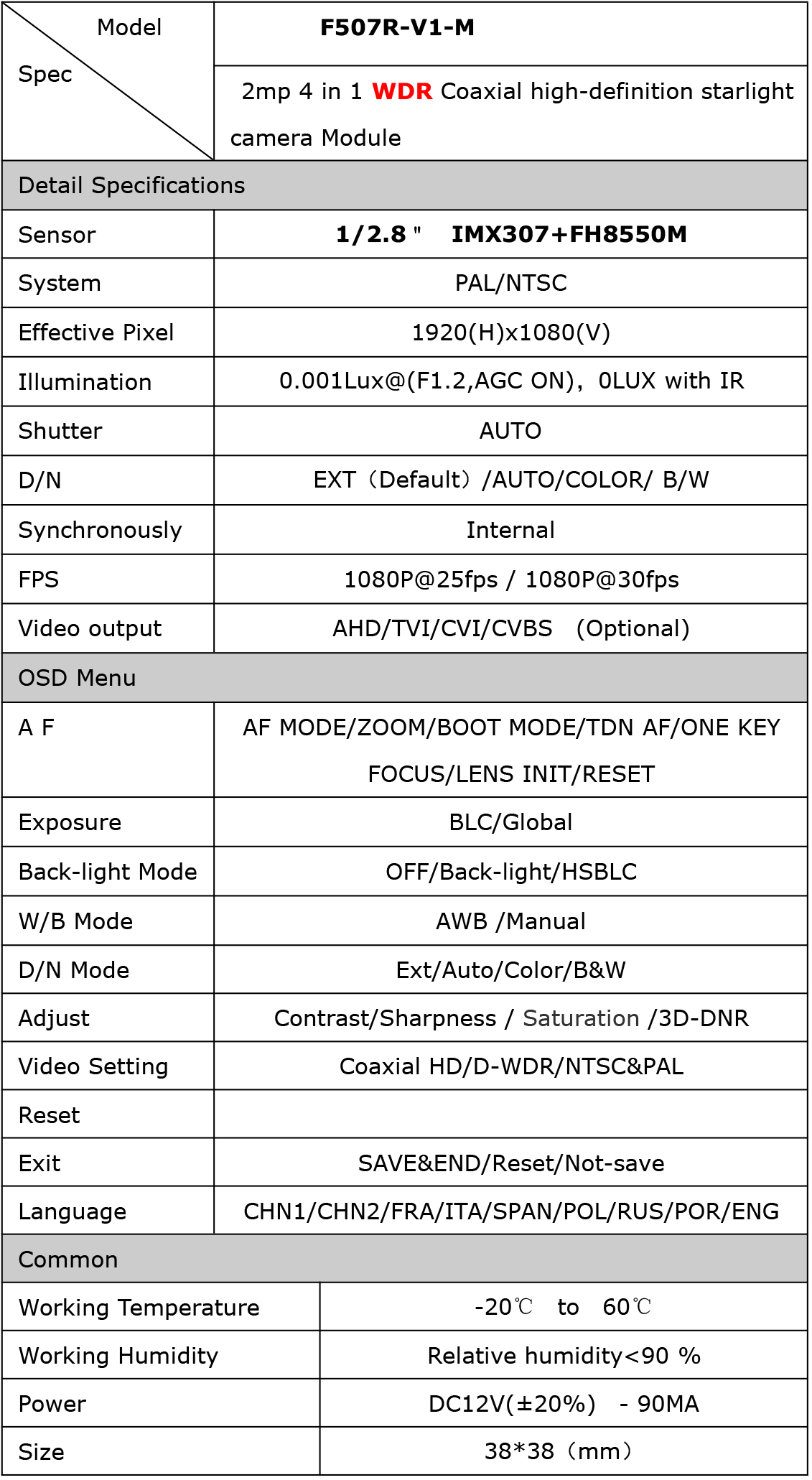

Model No.	F507R-V1-M2.7
Spec	2mp 4 in 1 WDR Coaxial high-definition starlight camera Module
Sensor	1/2.8＂ IMX307+FH8550M

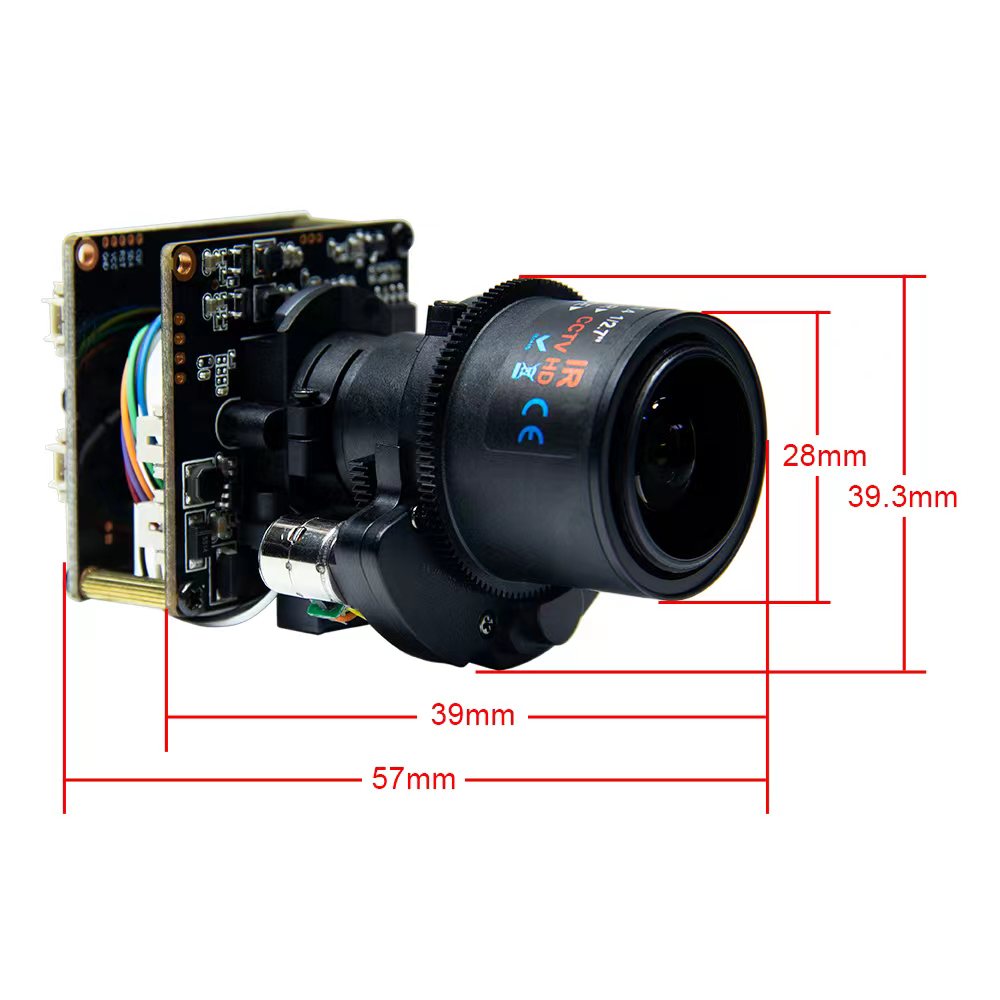

Motorized	2.7mm-13.5mm
System	PAL/NTSC
Effective Pixel	1920(H)x1080(V)
Illumination	0.001Lux@(F1.2,AGC ON)，0LUX with IR
Shutter	AUTO
D/N	EXT（Default）/AUTO/COLOR/ B/W
Synchronously	Internal
FPS	1080P@25fps / 1080P@30fps
Video output	AHD/TVI/CVI/CVBS (Optional)
A F	AF MODE/ZOOM/BOOT MODE/TDN AF/ONE KEY FOCUS/LENS INIT/RESET
Exposure	BLC/Global
Back-light Mode	OFF/Back-light/HSBLC
W/B Mode	AWB /Manual
D/N Mode	Ext/Auto/Color/B&W
Adjust	Contrast/Sharpness / Saturation /3D-DNR
Video Setting	Coaxial HD/D-WDR/NTSC&PAL
Reset	Support
Exit	SAVE&END/Reset/Not-save
Language	CHN1/CHN2/FRA/ITA/SPAN/POL/RUS/POR/ENG
Working Temperature	-20℃ to 60℃
Working Humidity	Relative humidity<90 %
Power	DC12V(±20%) - 90MA

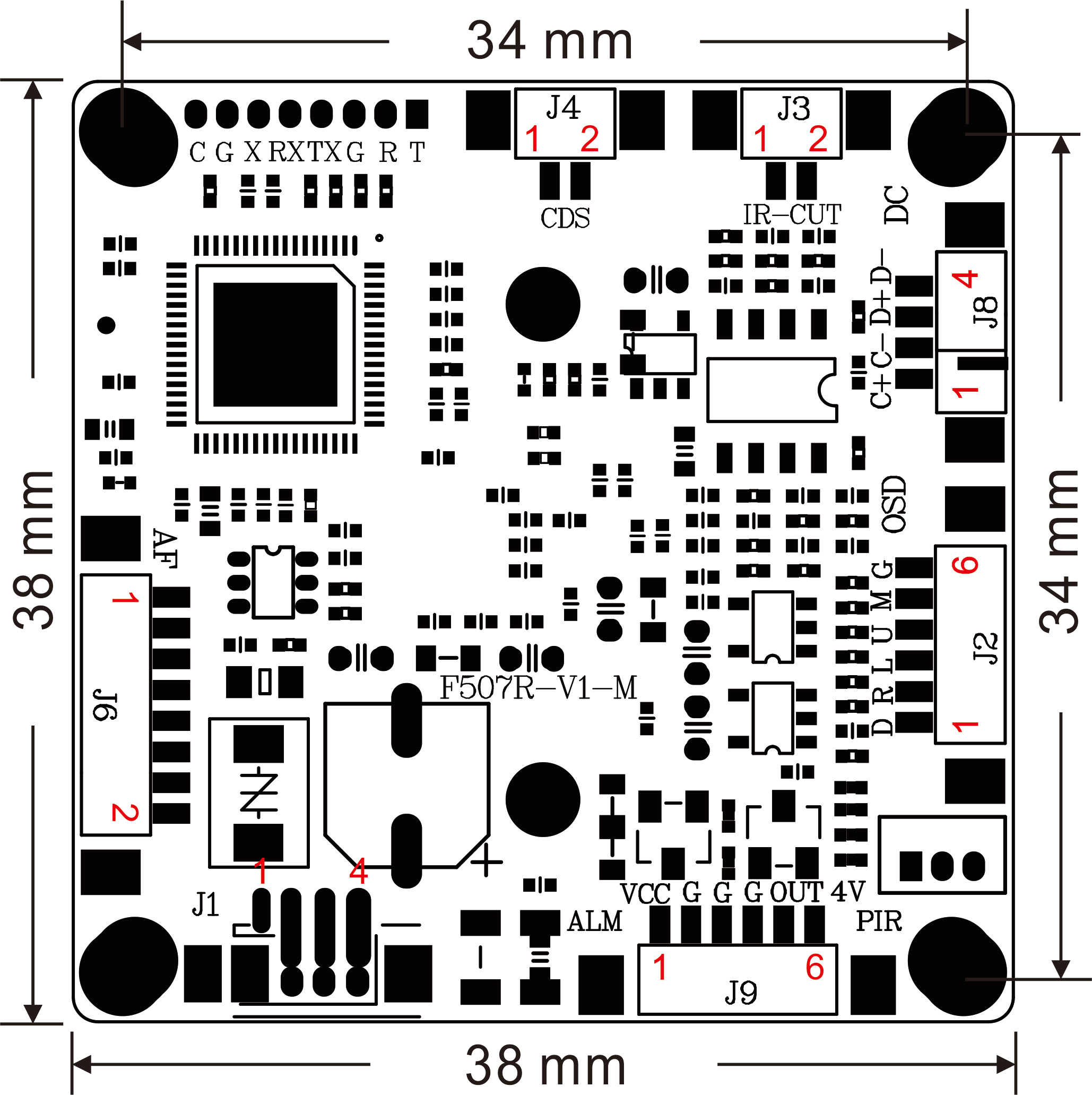

Size	38*38（mm）
