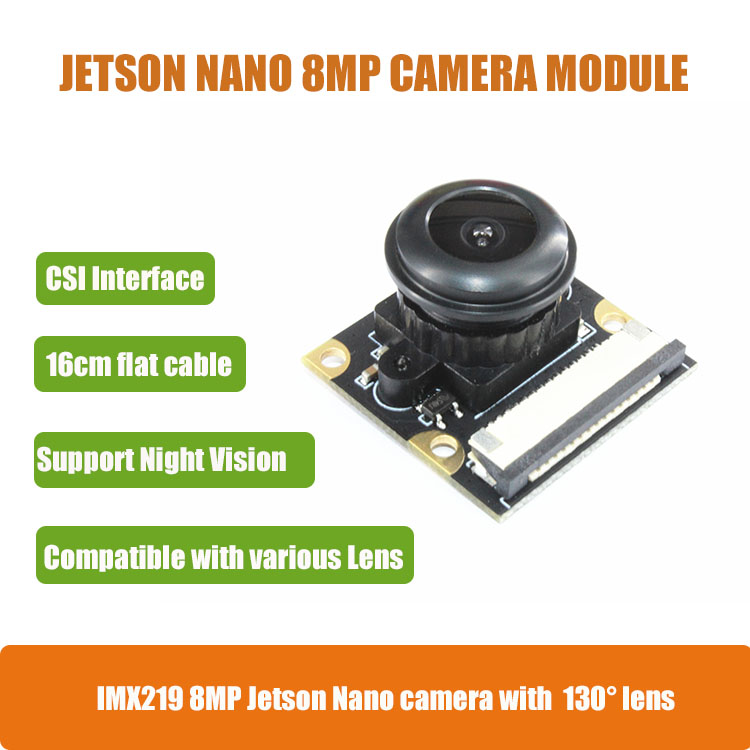

Imx219 8Megapixel Nano Camera With 130 Fov Wide Angle Lens

Product category:

USB Camera Board

SKU:

216928

Price:

$22.80

Description

Product Description

Module No.	BMHPLCC-8M
Module Size	25mm × 24mm ×14±0.5mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-∞
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	15p-1.0 mipi
Working power supply	3.3v(pin15)
Operating system	Raspberry Pi
Package	Anti-electrostatic tray
Certifications	FCC and CE
Sensor Type	IMX219 (1/4" )
Active Array Size	3296*2512
Sensitivity	600mV/Lux-sec
Pixel Size	1.12µm x1.12µm
Maximum Image Transfer Rate	30 fps for QSXGA;
Output formats	8/10bit RGB RAW output
S/N Ratio	39db
Dynamic Range	69db
Package	PLCC,Bare Die
Lens Type
Lens Construction	4E+IR
F/No	2.4
EFL	1.85 mm
BFL(Optical)	1.95mm
FOV	130°
TV Distortion	<7.6%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
DSP Type
AGC/AEC/Whiter balance
Output Formats
Fixed Pattern Noise
Package

Detailed Images
