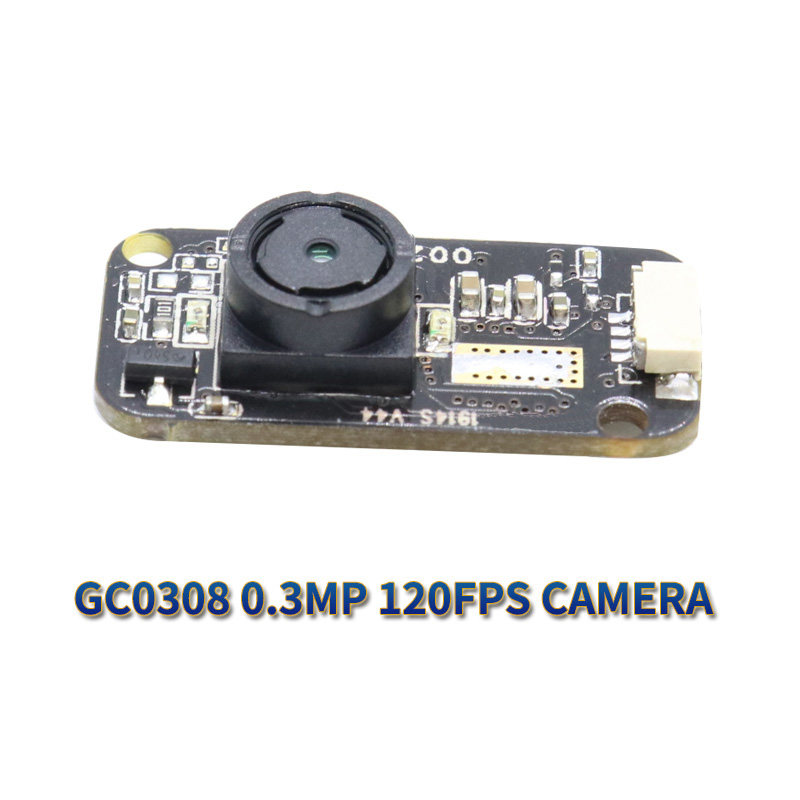

GC0308 Mini USB Camera for Spycamera 120fps Night Vision Hidden CMOS Sensor & ODM Supported

Product category:

USB Camera Board

SKU:

216783

Price:

$8.40

Description

Product Description

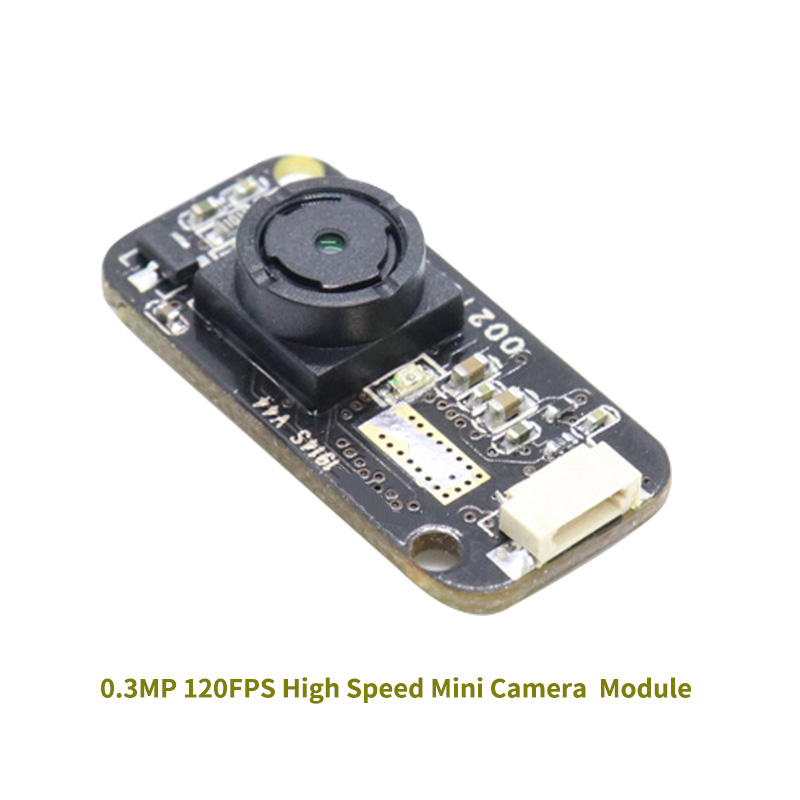

Module No.	BM1914S V44

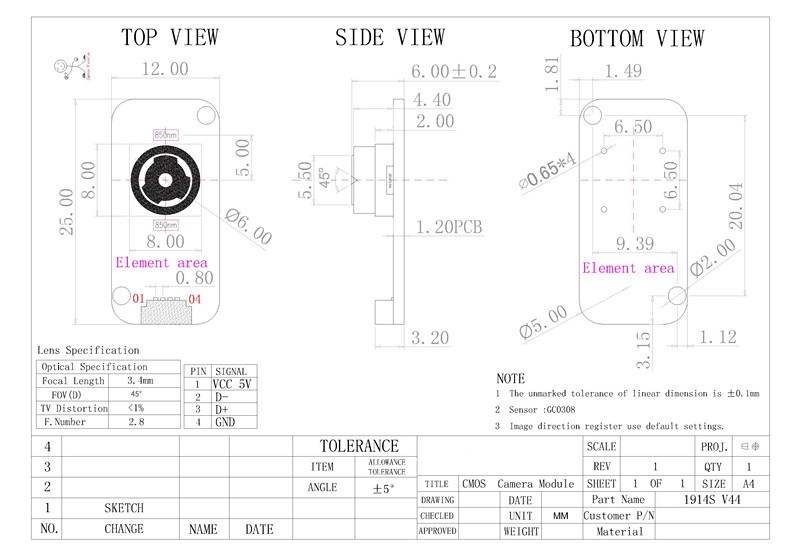

Module Size	25mm × 12mm × 6mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	5CM
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GC0308 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	2.5V /(lux-sec)
Pixel Size	3.4µm x 3.4µm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS
S/N Ratio	42 db
Max Dynamic Range	58 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.8
EFL	3.4mm
FOV	DFOV 45° HFOV 35° VFOV 27 °
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	NO IR
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
