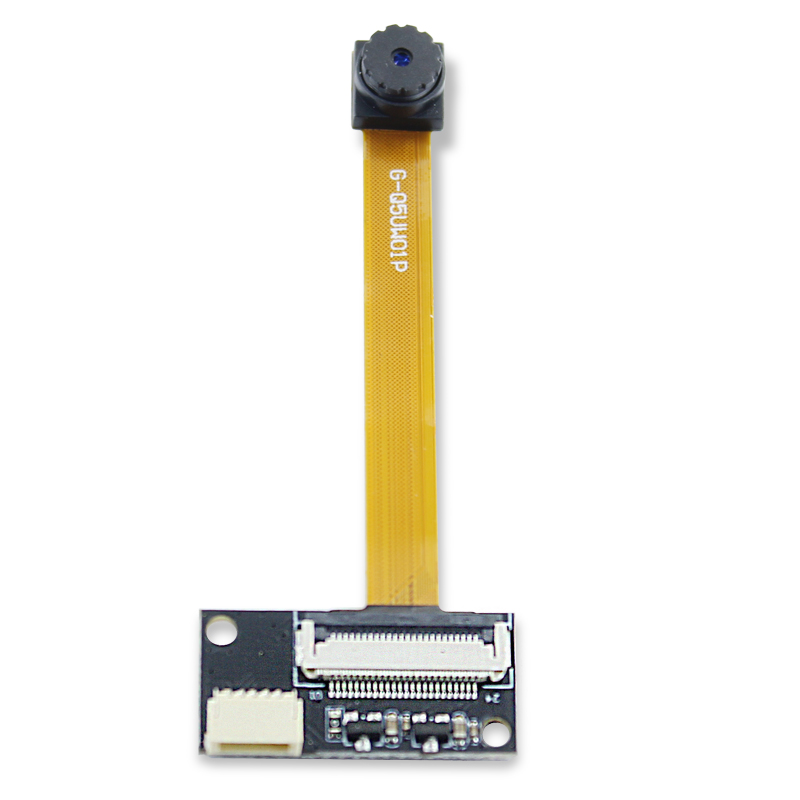

free driver fixed focus 5MP 2592*1944 15fps CMOS ov5640 FPC Mini camera module for kiosk webcam

Product category:

USB Camera Board

SKU:

217036

Price:

$24.00

Description

Module No.	BM1466FF S1.0
Module Size	68.2mm × 26mm × 6mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	940 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mv /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1024x768 30FPS / YUY2 160x120 30FPS MJPEG 1280x720 40FPS / YUY2 320x240 30FPS MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS MJPEG 1920x1080 15FPS / YUY2 800x600 30FPS MJPEG 2048x1536 15FPS / YUY2 1024x768 15FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
S/N Ratio	36 db
Max Dynamic Range	68 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.8
EFL	3.3 mm
FOV	60°
TV Distortion	<-1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

product drawing
