Free Driver 0.3 MP Hd Infrared Camera Module GC0308 Sensor Cmos Camera Pcb Board Module Mini Usb Camera Board

Product category:

USB Camera Board

SKU:

217090

Price:

$9.60

Description

Product Description

Product name	0.3MP PC, device embedded built-in camera module
Module No.	BMV2101 V11
Module Size	30mm × 25mm × 11.3mm±0.3MM
Features	1. Conventional standard 30X25mm, great structural versatility 2. 6 plug-in lights can be added for welding (infrared white light), which can be turned on and off, and photosensitive control
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GC0308 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	2.5v /(lux-sec)
Pixel Size	3.4µm x 3.4µm
Maximum Image Transfer Rate	YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS
		S/N Ratio	42 db
		Max Dynamic Range	58 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	3P+IR
		F/No	2.8
EFL	3.0mm
FOV	50°
TV Distortion	<-1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

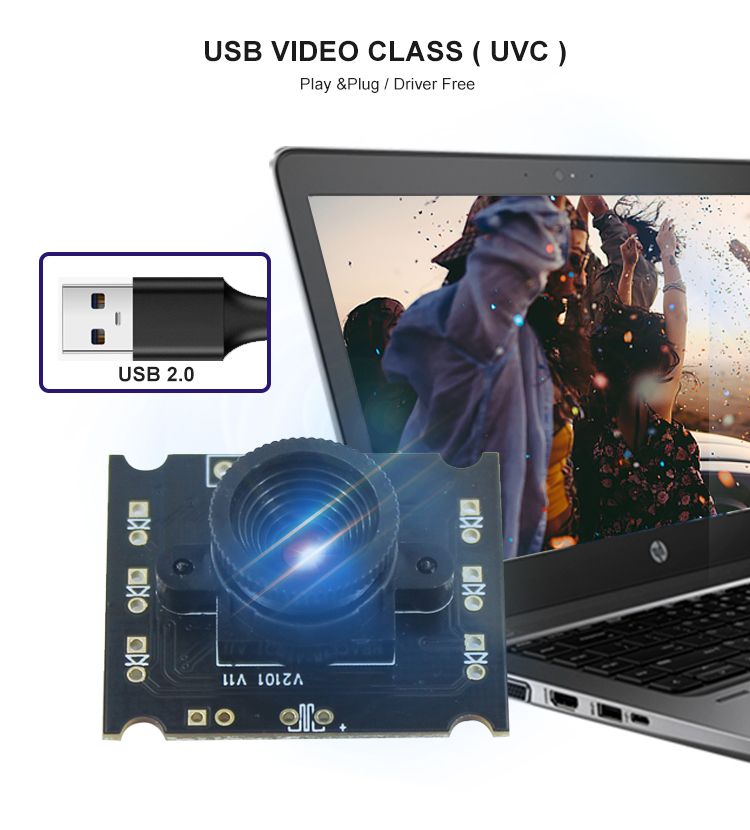

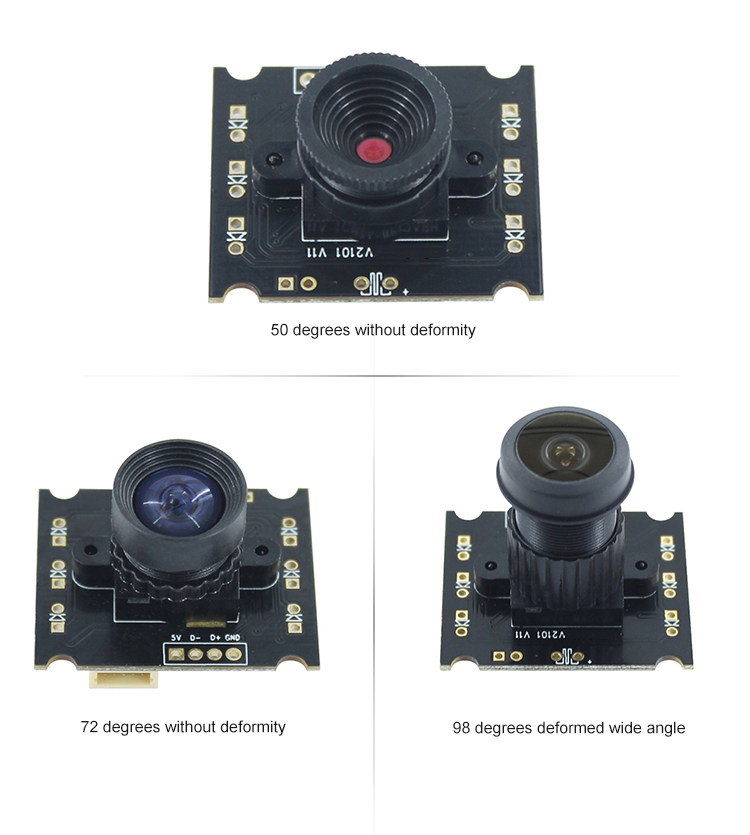

Effect Picture
