Fov 100 Degree Ip Module Camera 5Mp Usb Industrial Control Ir Camera Module Depth Sensing Camera

Product category:

USB Camera Board

SKU:

217052

Price:

$30.00

Description

Product name	5 MP 2K industrial control industrial camera, advertising machine, equipment embedded built-in camera module
Module No.	BM5M2134 V11

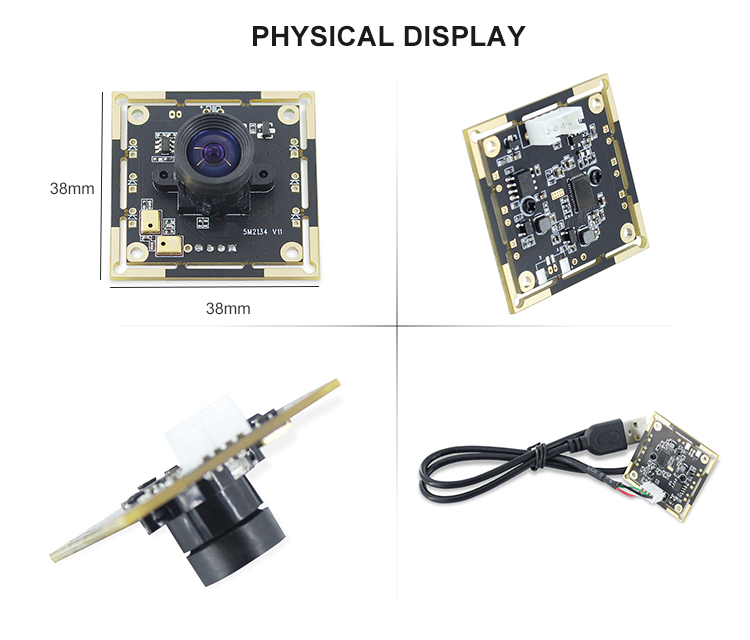

Module Size	38mm × 38mm × 16mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	920 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5693 (1/4" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	780mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
		S/N Ratio	36db
		Max Dynamic Range	71.6db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	2G2P
		F/No	2.4
EFL	3.7mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
