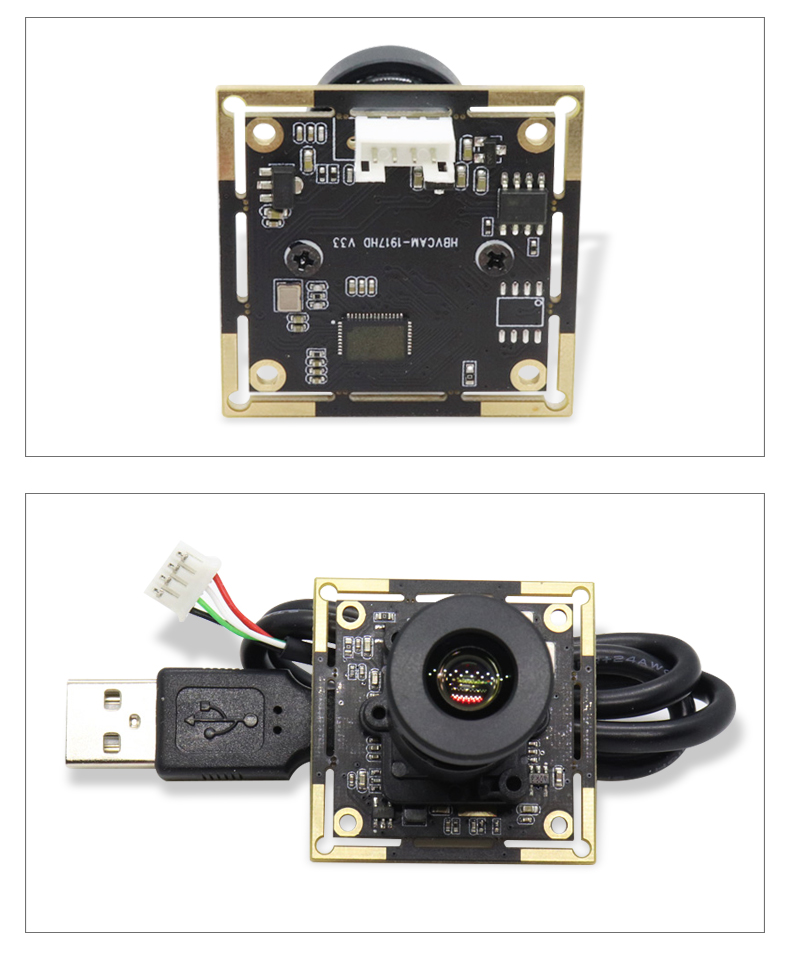

fixed focus IMX291 (1/2.8 )Sensor USB mini cmos camera module support Microphone

Product category:

USB Camera Board

SKU:

217142

Price:

$51.60

Description

UVC fixed focus IMX291 (1/2.8 )Sensor USB mini cmos camera module support Microphone

Model No.	BM1917HD V33
Model Size	38mm × 38mm × 37.7mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	IMX291 (1/2.8" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	3300mv /(lux-sec)
Pixel Size	2.9m x 2.9μm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / MJPEG 1920x1080 30FPS /
S/N Ratio	42db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4G
F/No	1.0
EFL	6.0 mm
FOV	71°
TV Distortion	<-20%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
