F1.0 4mm 1/2.7" super starlight M16 Lens for cctv ip ahd camera

Quantity	Price
1 - 9	$13.50
10 - Unlimited	$10.10

SKU:

L4-M16F1-HIC

Product category:

Resolution:

full product footer

Description

Optical Specifications

Item		Specification
F No.		0.95±5%
Focal Length		4mm±5%
TTL		31.88mm (in air)
IR-CUT glass + Cover glass Thickness		0.8mm
Optical Back Focal Length		5.72mm±0.1 (in air)
Mechanical BackFocal Length		5.58±0.2 (in air)
Image circle		Φ6.9mm (1/2.7") (MAX)
Lens structure		5G4P
Mount		M16*P0.5
Torque of lens and Holder		60-600gf.cm
FOV 16:9	Image	H	V	D
	1/2.7"	92.3°	48.7°	109.9°
	1/2.8"	88.4°	47°	105.2°
	1/2.9"	84.8°	45.3°	100.5°
Optical Distortion		1/2.7" -40.8%	1/2.8" -37.5%	1/2.9" -34.4%
CRA		1/2.7" 8.3°	1/2.8" 8.1°	1/2.9" 7.8°
Relative illumination		1/2.7" 59%	1/2.8" 60%	1/2.9" 63%
Spectral Transmission		>83% @436~550nm
		>85% @650nm
		>70% @850nm
Focus Range		0.2m ~ ∞
Resolution		Center:	160LP/mm
		0.7y:	125LP/mm
		0.9y:	80LP/mm(2MP)
Weight
Operation		Focus	Manual
		Iris	Fix
Operating temperature		-20°C ~ +60°C

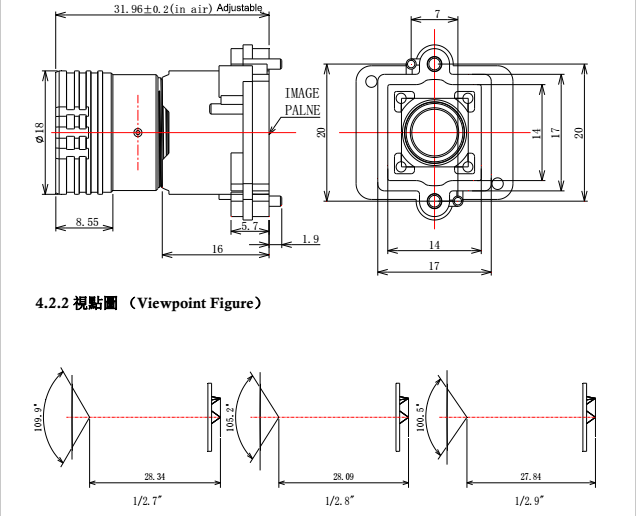

Dimension Figure:
