D14 mount 2.8-12mm auto iris adjustable motorized cctv lens

Product category:

Lens

SKU:

208831

Price:

$7.00

Quantity	Price
1 - 4999	$7.00
5000 - 9999	$6.50
10000 - Unlimited	$6.10

full product footer

Description

D14 mount 2.8-12mm auto iris adjustable motorized cctv lens

Resolution	3MP
Image format	1/2.7"
Focal length	2.8~12mm
Aperture	F1.8
Mount	D14
Field Angel D H V(°)		1/2.7		1/3		1/4
		Short-focus	Long-focus	Short-focus	Long-focus	Short- focus	Long-focus
	D	140	40	120	36	82.6	27.2
	H	100	32	89	29	64	21.6
	V	72	24	64	21.6	27	16.2
Optical Distortion		-64.5~-4.3%		-48~-3.5%		-24.1~-1.95%
CRA	≤6.53°(Short-focus) ≤6.13°(Long-focus)
M.O.D.	0.3m

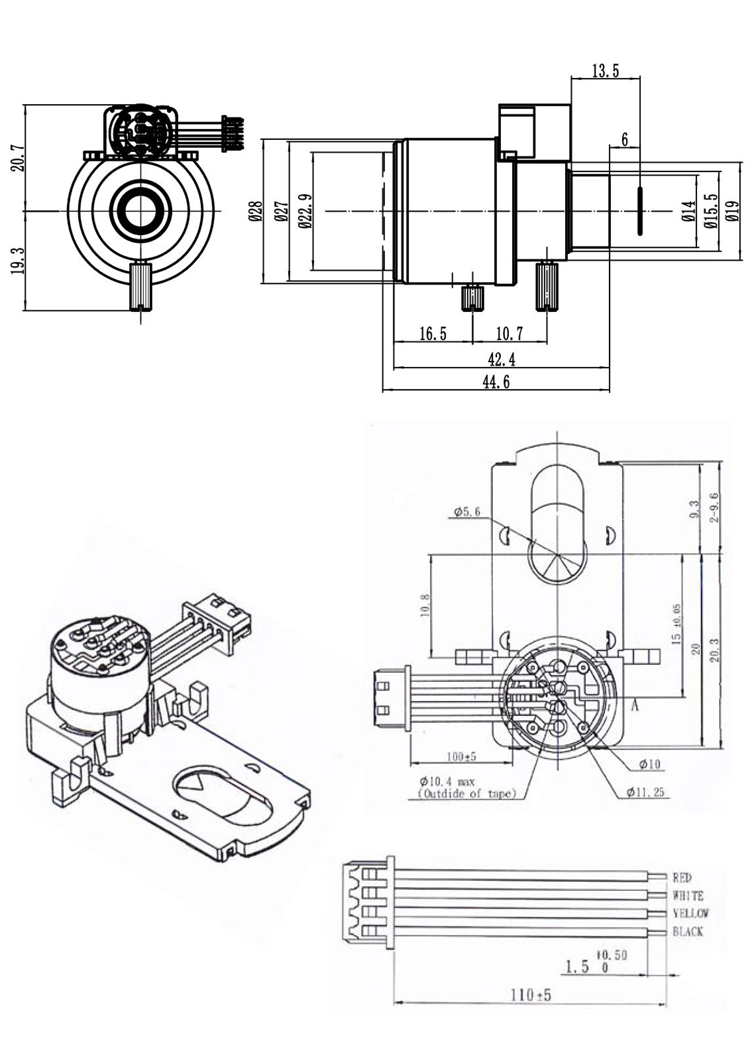

Dimension	ø28*44.6mm
Weight	33±2g
Flange BFL	13.5mm
BFL	7.1~13.6mm
MBF	6mm
IR Correction	Yes
Operation	Iris				Fixed
	Focus				Manual
	Zoom				Manual
Operating temperature	-20℃~+60℃
