Custom 1Mp Hd Cmos Small Camera Module Can be equipped with a microphone

Product category:

USB Camera Board

SKU:

216693

Price:

$16.80

Description

Product Description

Module No.	BM1515 V33
Module Size	38mm × 22mm × 14.85mm±0.3MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	NT99141 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	3300mV /(lux-sec)
Pixel Size	3.0µm x 3.0µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 320x240 30FPS
	MJPEG 1280x720 30FPS / YUY2 352x288 30FPS
	YUY2 640x480 30FPS
	YUY2 1280x720 10FPS
S/N Ratio	38db
Max Dynamic Range	69db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	2.54 mm
FOV	82°
TV Distortion	<-7.49%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

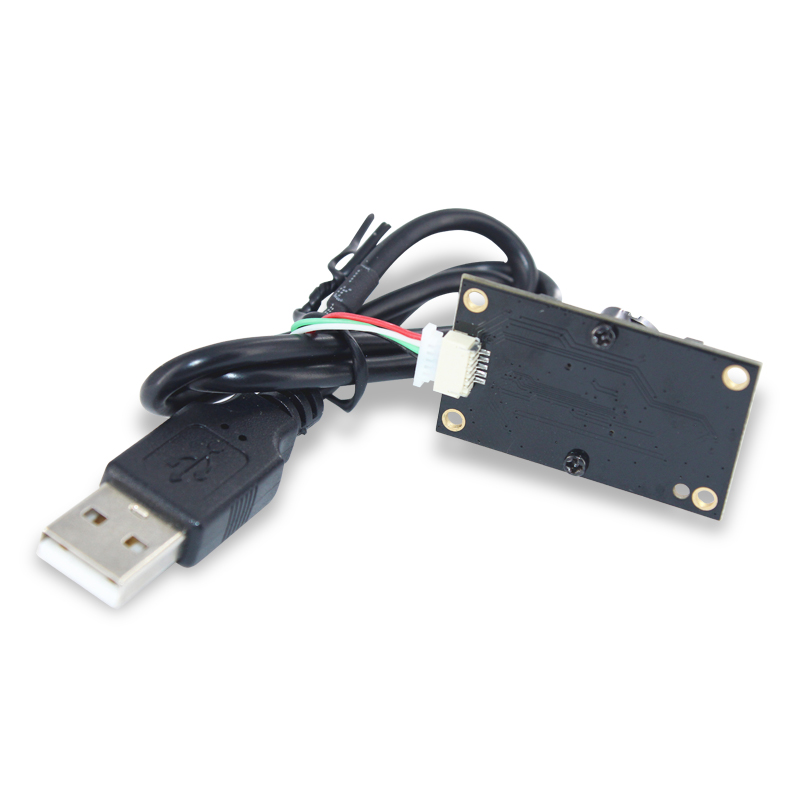

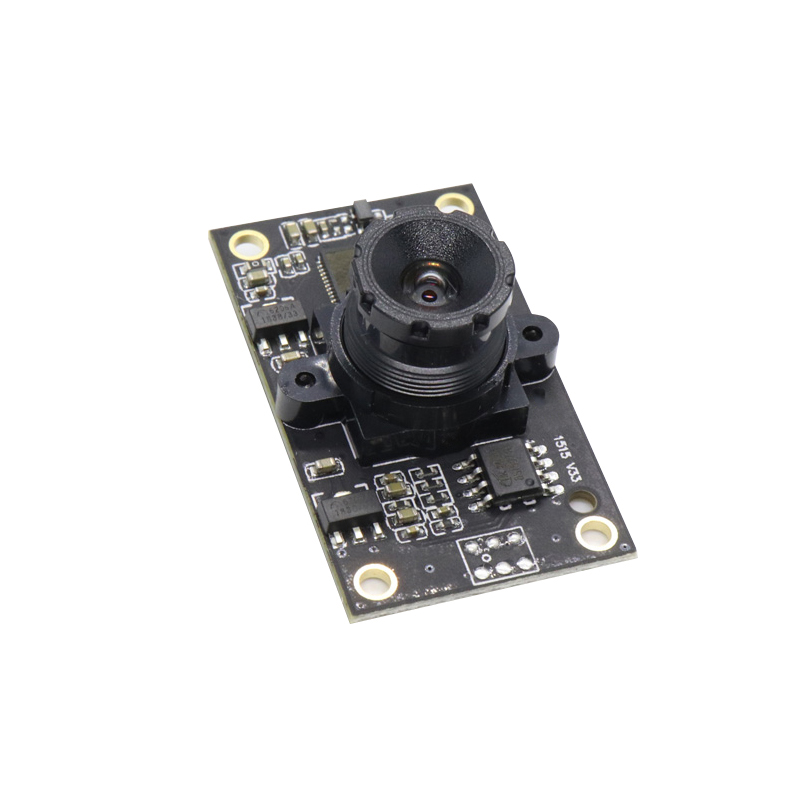

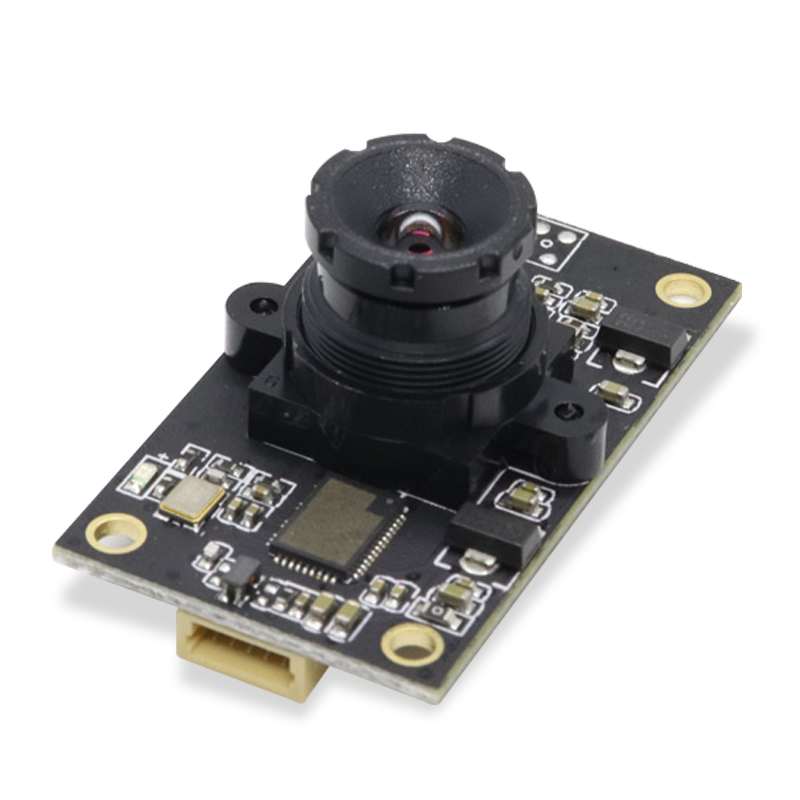

Detailed Images
