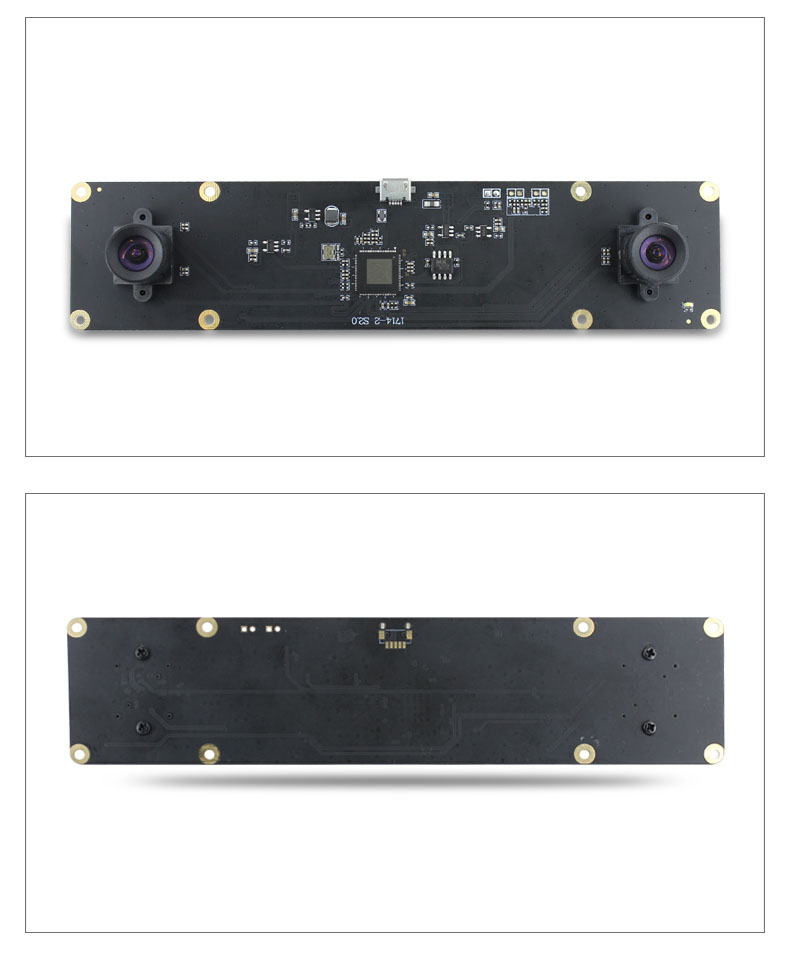

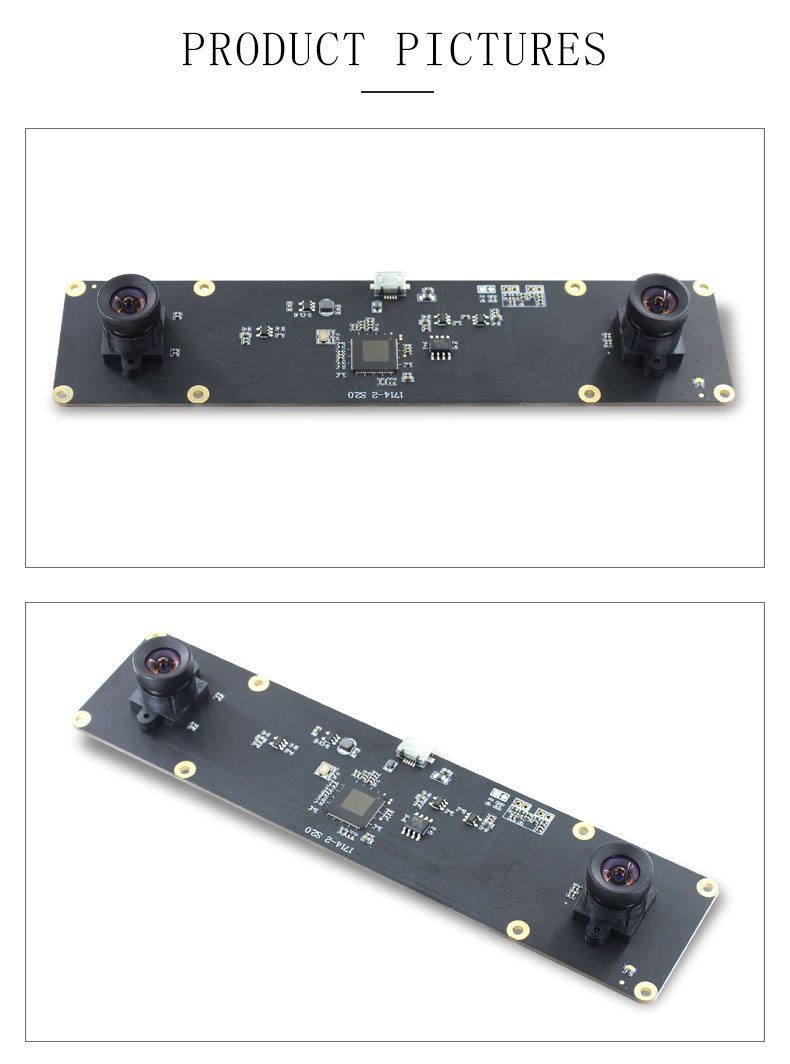

custom 1.3mp external HD Dual Lens 2560 *960 60fps CMOS OV9750 small camera module

Product category:

USB Camera Board

SKU:

217133

Price:

$49.20

Description

1.3mp Dual Lens 60fps usb web camera module with USB interface free driver

Model No.	1714-2 S2.0

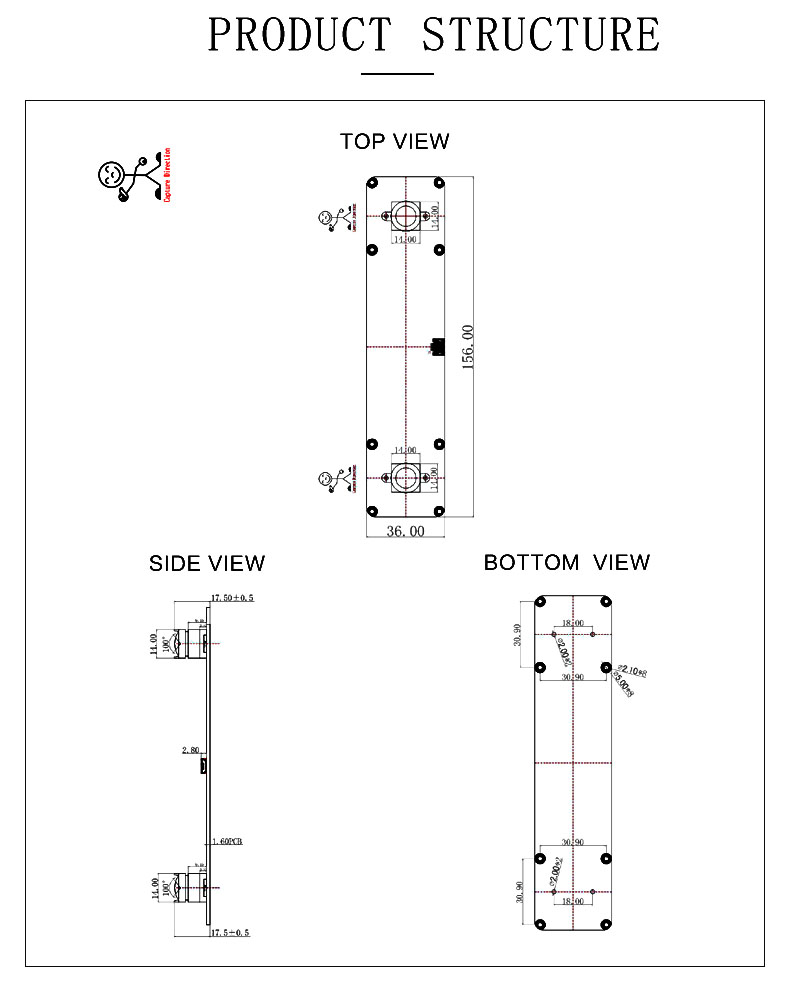

Model Size	156mm × 36mm × 17.5mm±0.3MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1460 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9750 (1/3" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*960
Sensitivity	1900mV /(lux-sec)
Pixel Size	3.75µm x 3.75µm
Maximum Image Transfer Rate	MJPEG 960x960 60FPS / YUY2 960x960 10FPS MJPEG 1280x480 60FPS / YUY2 1280x480 10FPS MJPEG 1280x720 60FPS / YUV2 1280x720 5FPS MJPEG 1280x960 60FPS / YUV2 1280x960 10FPS MJPEG 2560x720 60FPS / YUV2 2560x720 5FPS MJPEG 2560x960 60FPS / YUV2 2560x960 5FPS
S/N Ratio	39B
Max Dynamic Range	72B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	1G3P
F/No	2.4
EFL	3.7mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
