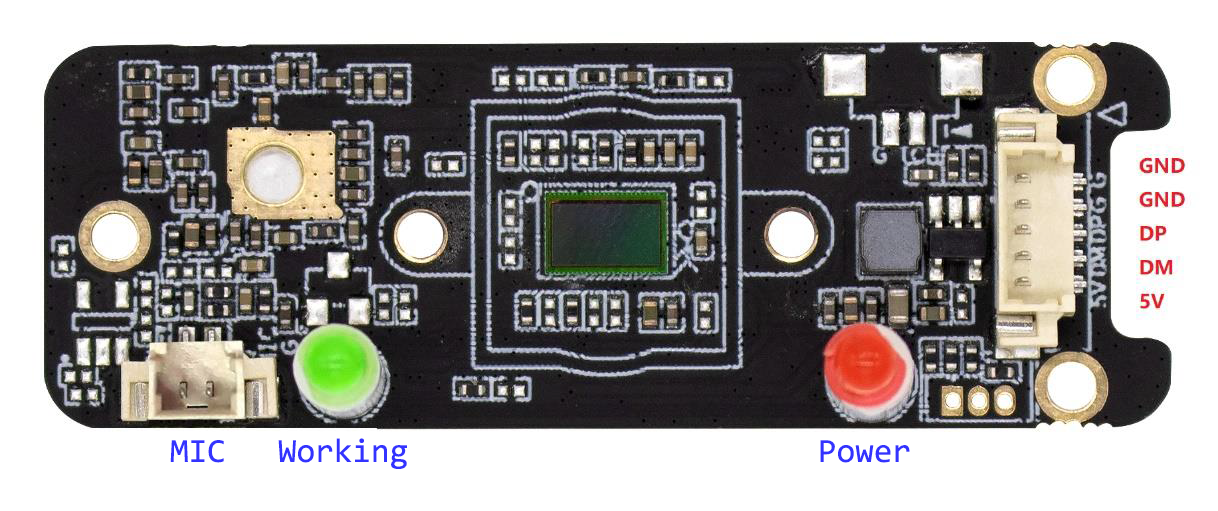

Cost Effective 2MP 1080P FH8852 1/3" GC2083 USB UVC Camera Module Board

Quantity	Price
1 - 9	$6.90
10 - Unlimited	$6.50

SKU:

UBG28F52

Sensor:

Resolution:

Video Coding:

full product footer

Description

1/2.9" 2MP 1080P GC2083 image sensor;

Standard UVC UAC protocol, free driver, plug and play;

Compitable with Windows / Android / Linux OS;

Supports MJPG, YUY2, H.264 compress format, Max 2MP 30fps resolution;

Can be used for online teaching, live broadcast, video conference, video chat, smart TV external equipment

Imaging Sensor	1/3" GC2083
Effective pixels	1920 (H) ×1080 (V)
Resolution	2MP
SoC	CPU+ISP Dual core 32bit RISC 750MHz + 32bit RISC 500MHz
OS	RTOS
Memory	RAM: 64M, ROM: 8MB
SNR	>37dB
Dynamic Range	74dB
video stream	MJPG: 25601440/19201080/1280720/640480 YUY2: 1280720/640480 H.264: 25601440/19201080/1280720/640480 H.265: 25601440/19201080/1280720/640480
Frame rate	30fps
Electronic shutter	auto
Protocol	UVC/UAC
USB	USB 2.0
Parameters	Brightness, Contrast, Hue, Sharpness, White Balance
Protocol	UVC 1.0, UAC 1.0
Audio	Format: PCM sensitivity: -36dB sampling rate: 16K 16bit Channel: Mono Audio noise reduction: intelligent noise reduction gain: Auto
Video output	USB video stream
Working voltage	DC5V / 160 mA ±6 mA
Working environment	- 20°C ~ 60°C
OS compatible	Windows XP/7/8/10/11, Android V5.0 and above (need driver supported) , Linux (need driver supported), MAC 10.10
Software compatible	QQ, Wechat, Dingding, Zoom, MS Teams, Skype, Google Metting, FaceTime for Mac, Faceboot, Youtube, MindLinker, OBS, WeLink, PotPlayer, Ecap etc.
