CCTV AHD camera 2MP CCTV camera pcb board module GC2053 TVI Audio

Product category:

Camera Board

SKU:

200748

Price:

$4.20

Quantity	Price
1 - Unlimited	$4.20

Description

Features:

l With 2MP CMOS,Capture moving images

l Support AHD/TVI/CVI ,excellent performance clear picture

l Support MIC input only for TVI format

l 0.01Lux@(F1.2,AGC ON),0LUX with IR

l Support IR-CUT,CDS external control ,D/N

l Support OSD/UTC

l Support DWDR

l Adaptive Digital Noise Reduction, 2D-DNR

l 6KV Lighting protection,with ECAP 220u

l Support DC 6-15V power

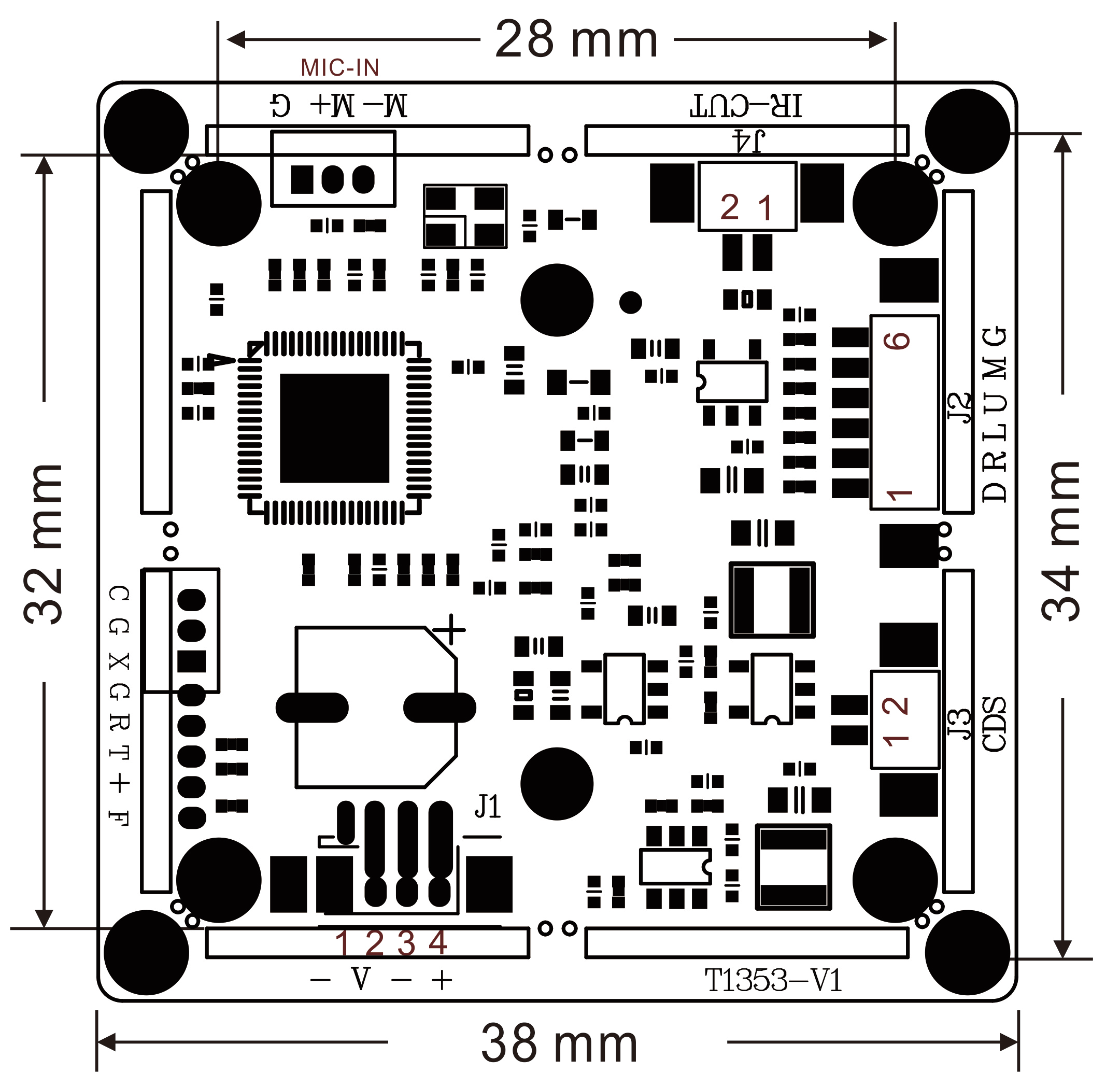

l 32x32/38x38(mm)

Specifications:

Model	T1353-V3
Spec.	2MP Audio Coaxial HD Camera Module
Detail Specifications
Sensor	1/2.9"GC2053
ISP	TP3813
System	PAL/NTSC
Effective Pixel	1920(H)x1080(V)
Illumination	0.01Lux@(F1.2,AGC ON),0LUX with IR
Shutter	AUTO
D/N	EXT(Default)/AUTO/COLOR/B/W
Synchronously	Internal
FPS	1080P@25fps / 1080P@30fps
Video output	AHD/TVI/CVI
OSD Menu
Exposure	BRIGHTNESS / EXPOSURE MODE / GAIN/DWDR
BW	ATW/MWB
D/N	EXT(Default)/AUTO/COLOR/B/W
Video Setting	Contrast/Sharpness/COLOR GAIN/DWDR/MIRRO
Language	ENG/CHN
Reset
Common
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 90 %
Power	DC12V(±20%) - 65mA
Size	3232/3838(mm)

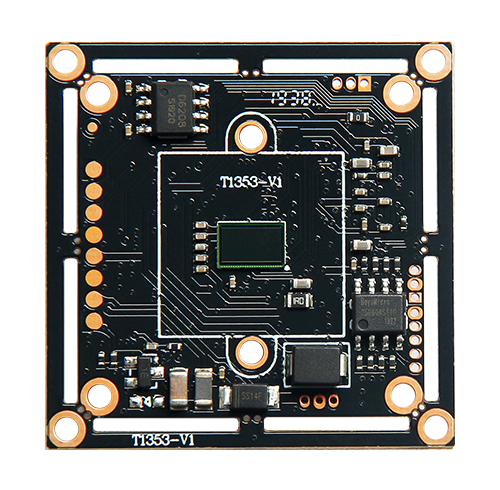

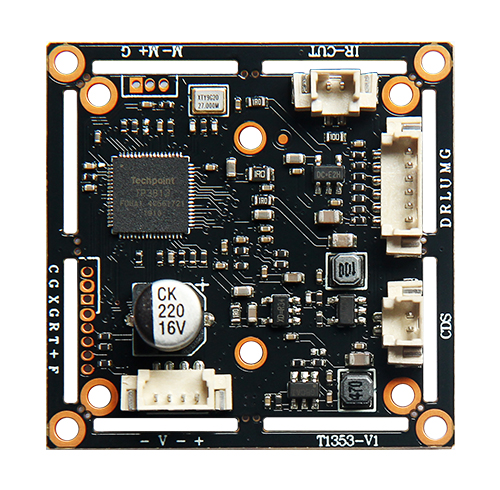

Picture Show:
