Auto Focus Wide Angle 120 degree 24pin gold finger OV5640 flexible camera module 4k camera module global shutter camera module

Auto Focus Wide Angle 120 degree 24pin gold finger OV5640 flexible camera module 4k camera module global shutter camera module

Product category:

USB Camera Board

SKU:

216792

Price:

$25.20

Quantity	Price
1 - 499	$25.20
500 - 999	$23.00
1000 - Unlimited	$19.80

full product footer

Description

5mp usb camera module

OV5640 5MP fisheyes lens USB fixed focus Camera Module support Windows 2000\ Windows XP\Windows 7

Model No.	BM20239 v11

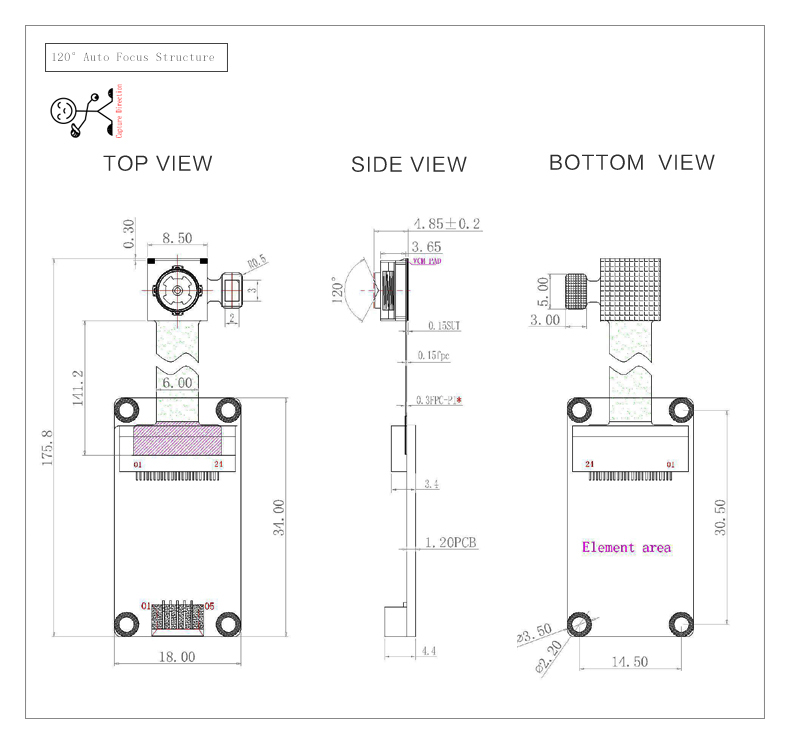

Model Size	175.8mm × 18mm × 4.85mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)

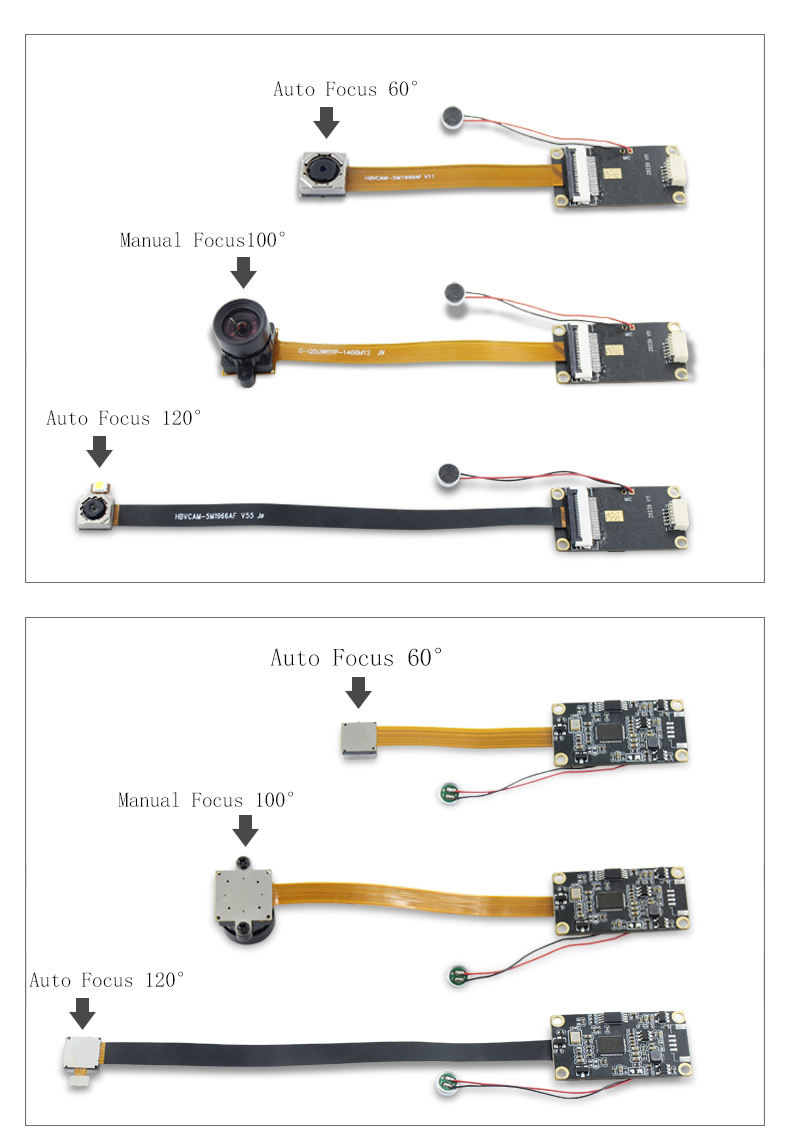

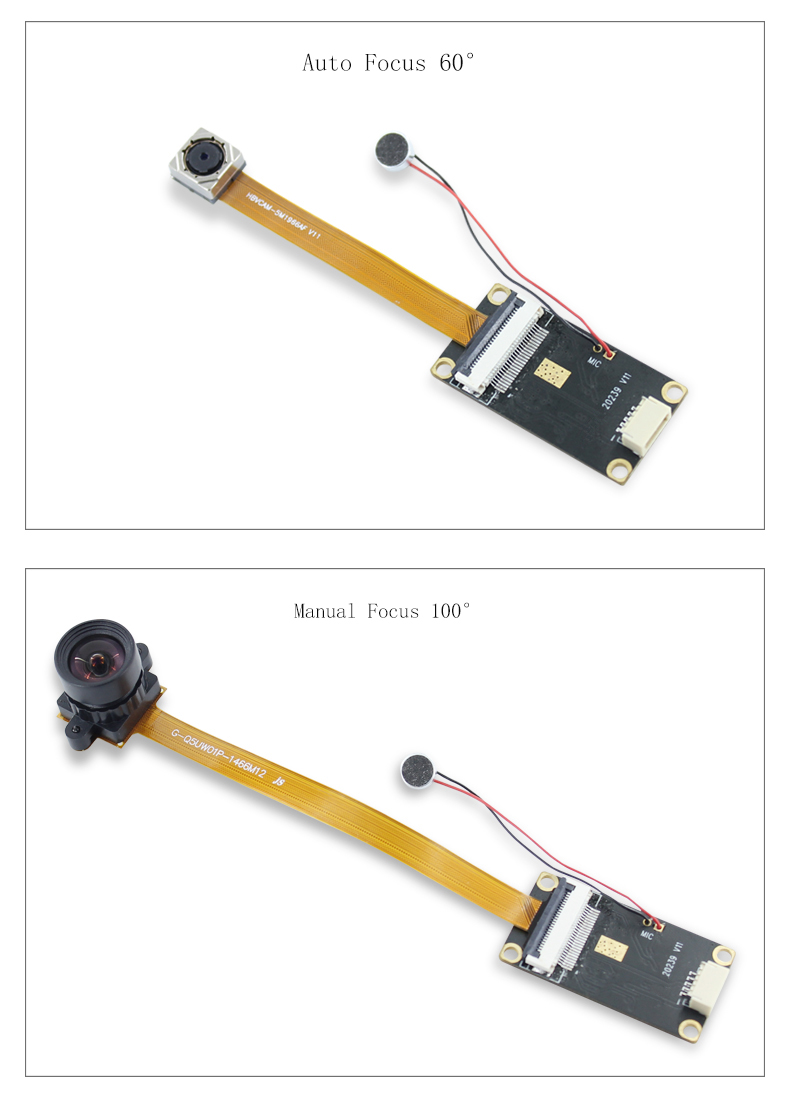

Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
Interface	USB 2.0
Power	USB bus power
Maximum Power consumption	920 mW
Package	Anti-electrostatic tray
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Certifications	FCC and CE
Active Array Size	2592*1944
Sensor	OV5640 (1/4" )
Sensitivity	600mv /(lux-sec)
Pixel Size	1.4µm x1.4µm
Maximum Image Transfer Rate	MJPEG 1280x720 30FPS / YUY21280x720 30FPS MJPEG 1600x1200 30FPS / YUY2600x1200 30FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 30FPS MJPEG 2048x1536 15FPS / YUY2 12048x1536 2FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
S/N Ratio	36db
Dynamic Range	68db
Package	CSP,Bare Die
Output Formats	YUY2/MJPEG
Microphone	YES
Lens Type
Lens Construction	4P+IR
F/No	2.4
EFL	2.4mm

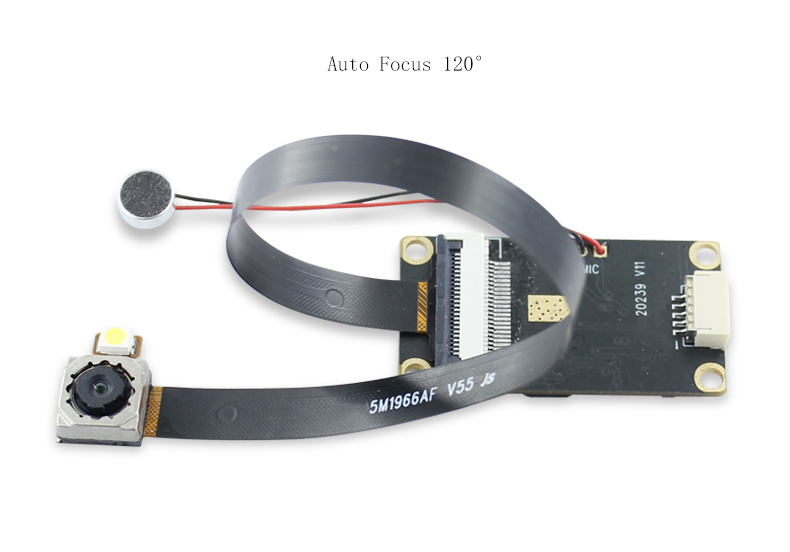

FOV	120°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
R Filter	650 ± 10nm
DSP Type	HBV5640
AGC/AEC/Whiter balance	Auto
Output Formats	USB suspend out
Fixed Pattern Noise	< 0.03% of V PEAK-TO-PEAK
Package	Anti-electrostatic tray

Packaging & Shipping

♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

♦Does the camera support OTG?
Most of our usb cameras support OTG function.

♦Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player

♦Can you supply the USB cable together with camera?

Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
