AHD 5MP Camera PCB BSI 1/2.9" Sensor Camera Module Support AHD/TVI/CVI/CVBS 5-15v Power Night Vision HD Security System

Product category:

Camera Board

SKU:

200788

Price:

$3.80

Quantity	Price
1 - 999	$3.80
1000 - Unlimited	$3.30

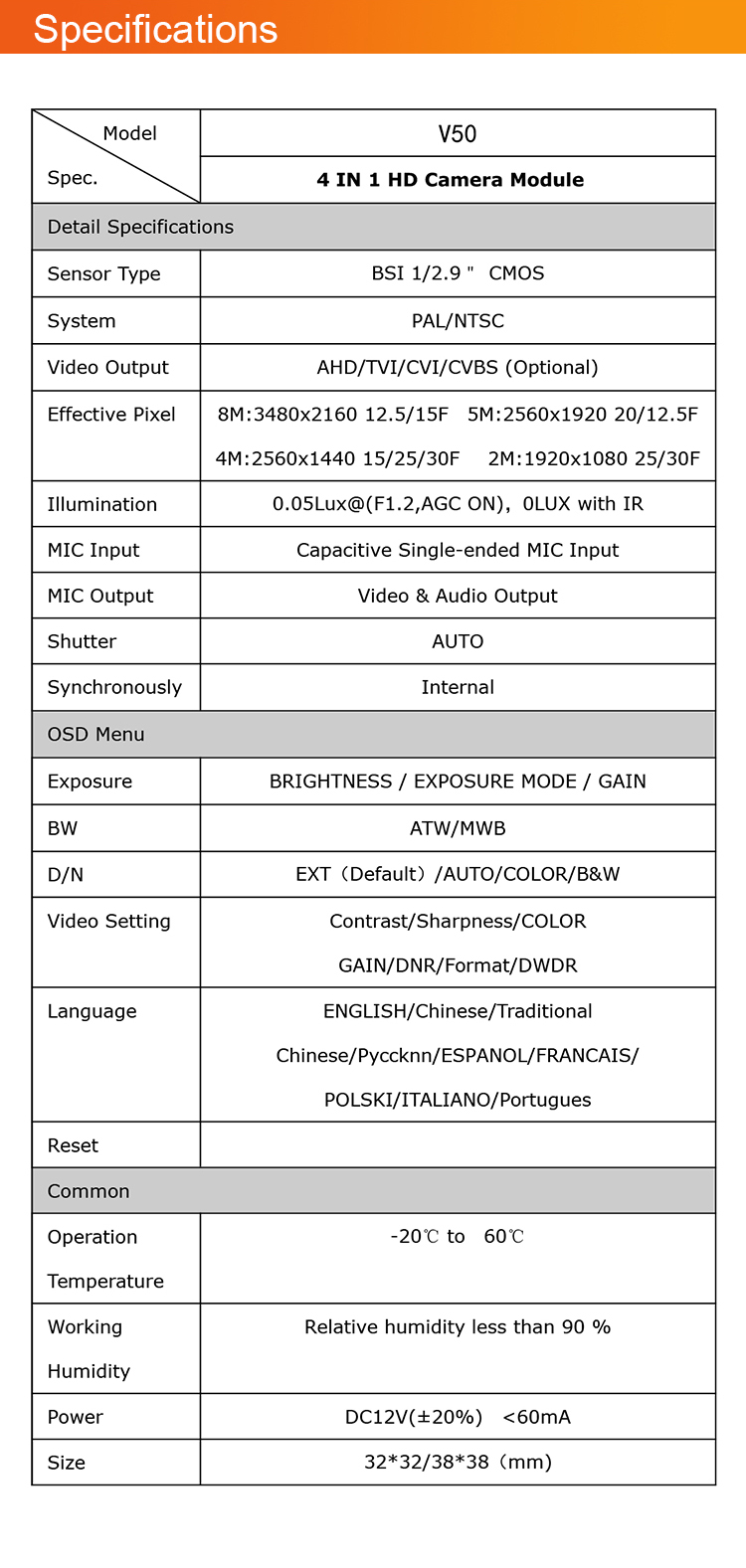

Description

Model No.	V10
Sensor	BSI 1/2.9＂CMOS
DSP	FH8536H
System	PAL/NTSC
Effective Pixel	8M:34802160 12.5/15F 5M:25601920 20/12.5F 4M:25601440 15/25/30F 2M:19201080 25/30F
Effective Pixel
Illumination	0.05Lux@(F1.2,AGC ON)，0LUX with IR
Shutter	AUTO
D/N	EXT（Default）/AUTO/COLOR/B/W
Synchronously	Internal

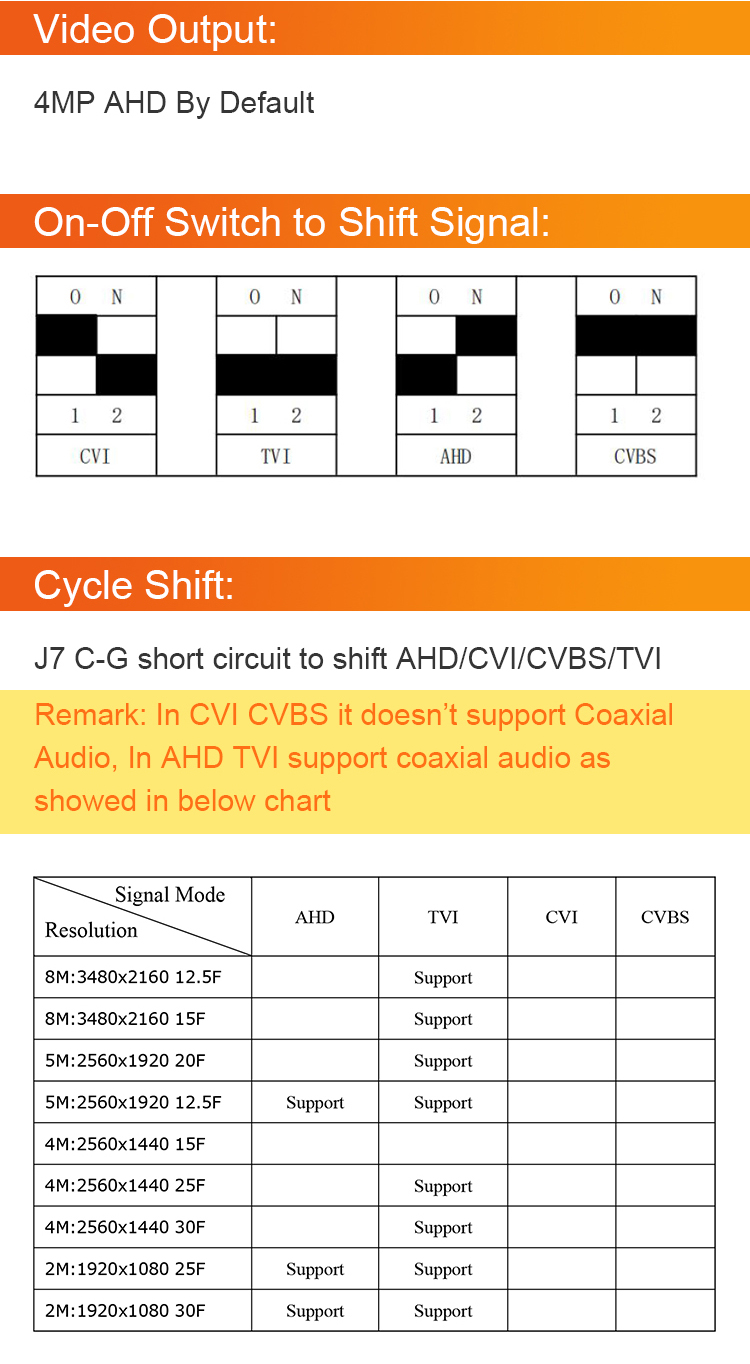

Video output	AHD/TVI/CVI/CVBS
Exposure	BRIGHTNESS / EXPOSURE MODE / GAIN
BW	ATW/MWB
D/N	EXT（Default）/AUTO/COLOR/B/W
Video Setting	Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR
Language	ENG/CHN1/ESP/FRA/CHN2/ RUS/ITA /POL/POR /KRO
Reset	Support
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 90 %
Power	DC12V(±20%) - 65mA

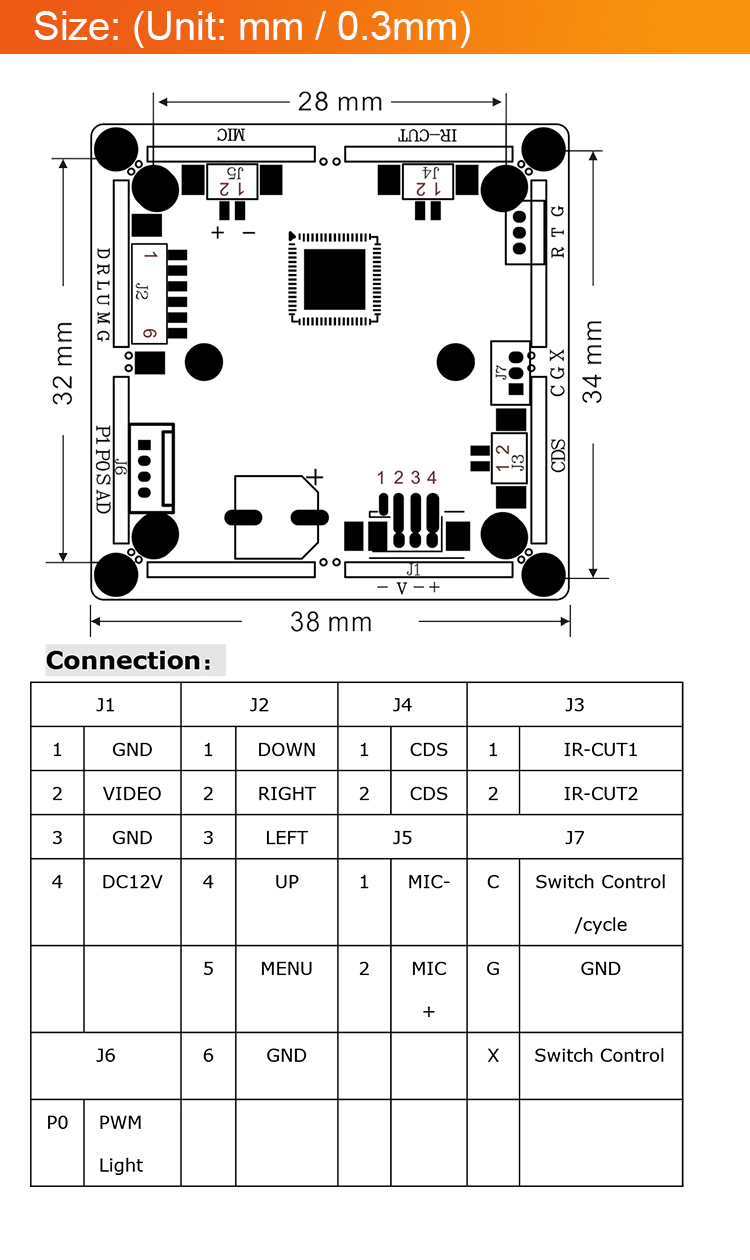

Size	3232/3838（mm)
