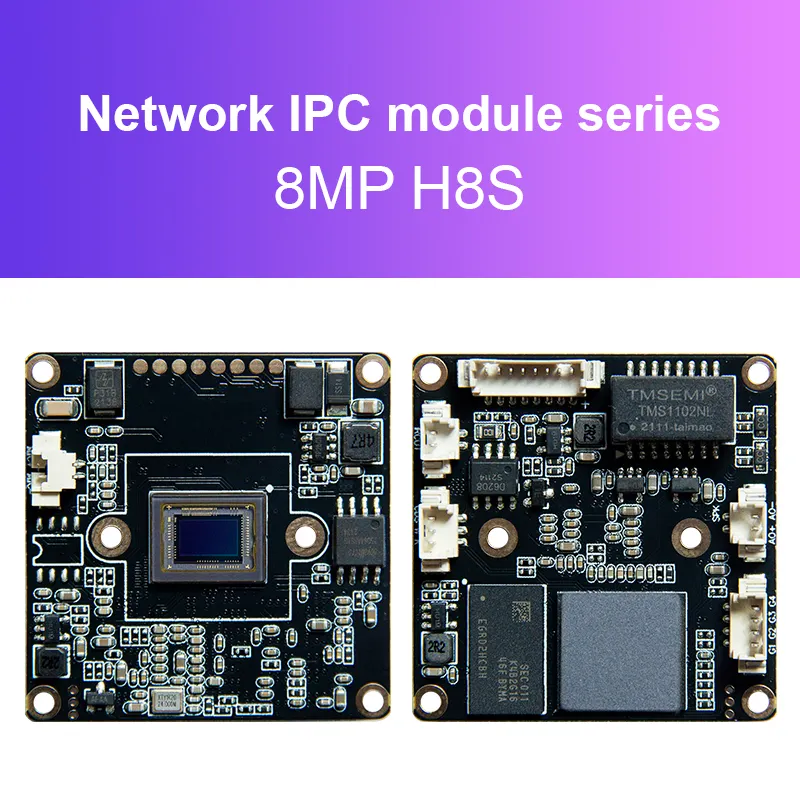

8MP IP Camera Module IMX415 Customized PCB Board Camera Board 4K CCTV Security IPC Board Camera PCB

Quantity	Price
1 - 999	$16.30
1000 - Unlimited	$15.80

SKU:

200696

Product category:

full product footer

Description

Model No.	H8S
Module	FH8858V200+1/2.8"SONY 8MP CMOS IMX415
LUX	COLOR 0.05Lux@F1.2;B/W 0.005Lux@F1.2
S/N	≥50db(AGC OFF)
WDR	DWDR；＞80db
Audio Input	1CHC MIC Input
Audio Output	Audio cable output ,with expandable built-in power amplifier circuit
LED Board Function	LED Board Driving Circuit, Dual Light PWM
IO port	RESET, IR CUT, Alarm Input/Output
Others	Support AF Motorized Lens
Coding Format	H.265&H.264
Mainstream	3840*2160,1-15FPS/S
Mainstream		28801664、25601440、23041296、19201080、1280*720，1-15FPS/S
Substream	704576,800448、640480、640360、352*288，1-15FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support channel name、Date、1 group of characters superposition adjustable
Data Record	Video,picture
Storage Method	Recycle and alarm video record
Alarm Transfer	Browser、management software、IO output
Protocol	ONVIF2.6、All Net Connect
Client Browser	Support IE6.0 and above browser、Client Browser
Mobile Client	Support IOS、Android
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V /150mA
Power	1.8W
Size	38* 38*10mm
Weight	12g
