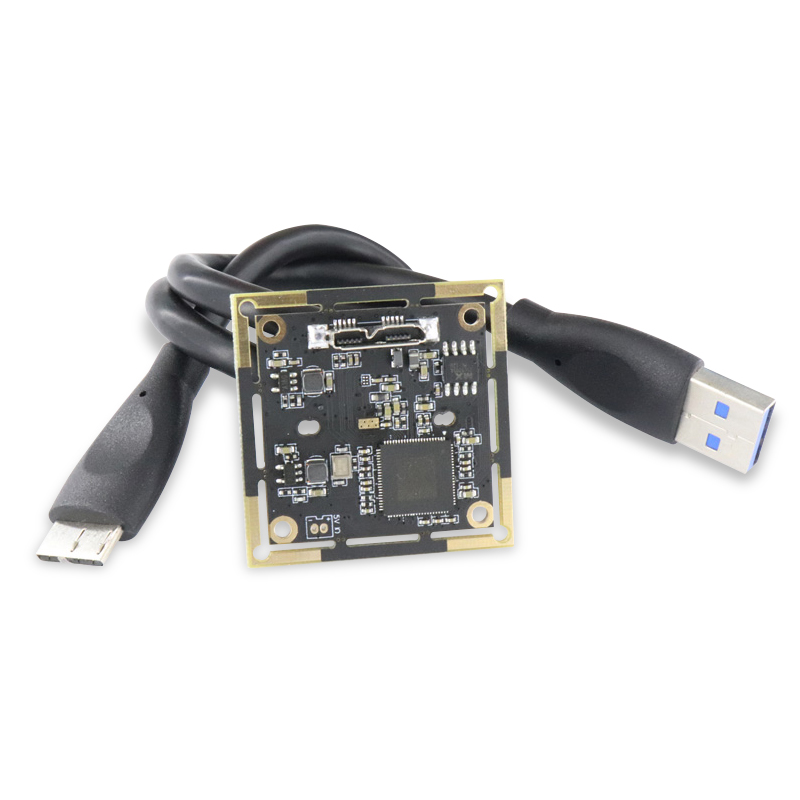

8Mp Imx179 Uvc Usb3.0 Auto Focus Mini Cmos Camera Module Android Micro Webcam

Product category:

USB Camera Board

SKU:

216994

Price:

$40.80

Description

Product Description

Model No.	BM8M1824U3 V11
Model Size	38mm × 38mm × 6.75mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	AUTO
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 3.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX179 (1/3.2" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3264*2448
Sensitivity	700mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS
	MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS
	MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
	MJPEG 2048x1536 20FPS / YUY2 2048x1536 3FPS
	MJPEG 2592x1944 20FPS / YUY2 2592x1944 2FPS
	MJPEG 3264x2448 20FPS / YUY2 3264x2448 1FPS
S/N Ratio	44 db
Max Dynamic Range	83 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5P
F/No	2.2
EFL	3.5 mm
FOV	77.2°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV.
2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thanks for your understanding.

Effect Picture
