8MP Auto Focus IMX179 Sensor CMOS Camera Module Resolution 3264*2448 Small USB Camera Module

Product category:

USB Camera Board

SKU:

217001

Price:

$36.00

Description

Module No.	BM8M1822 V22

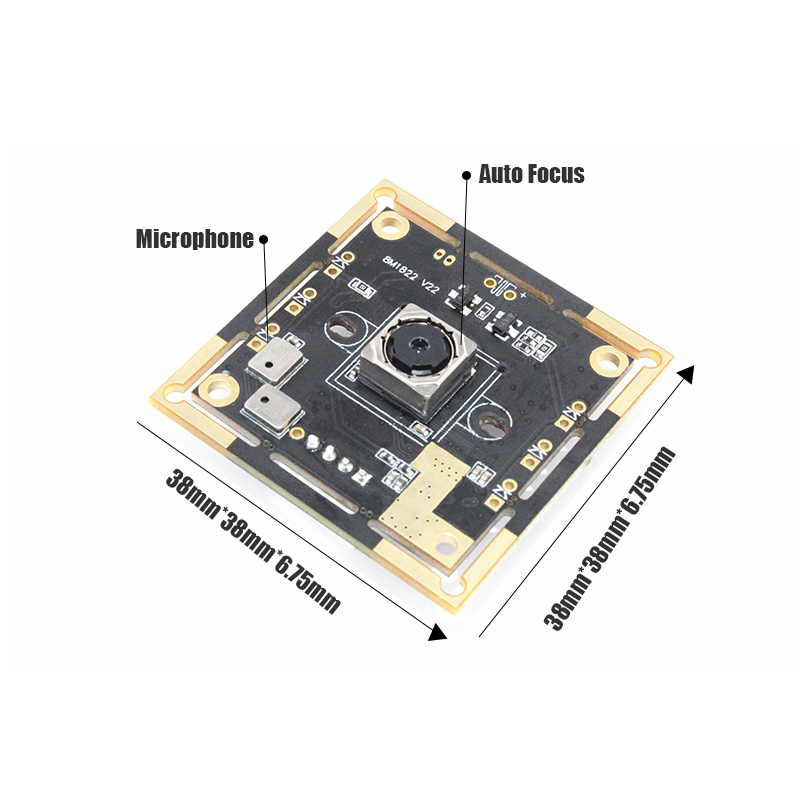

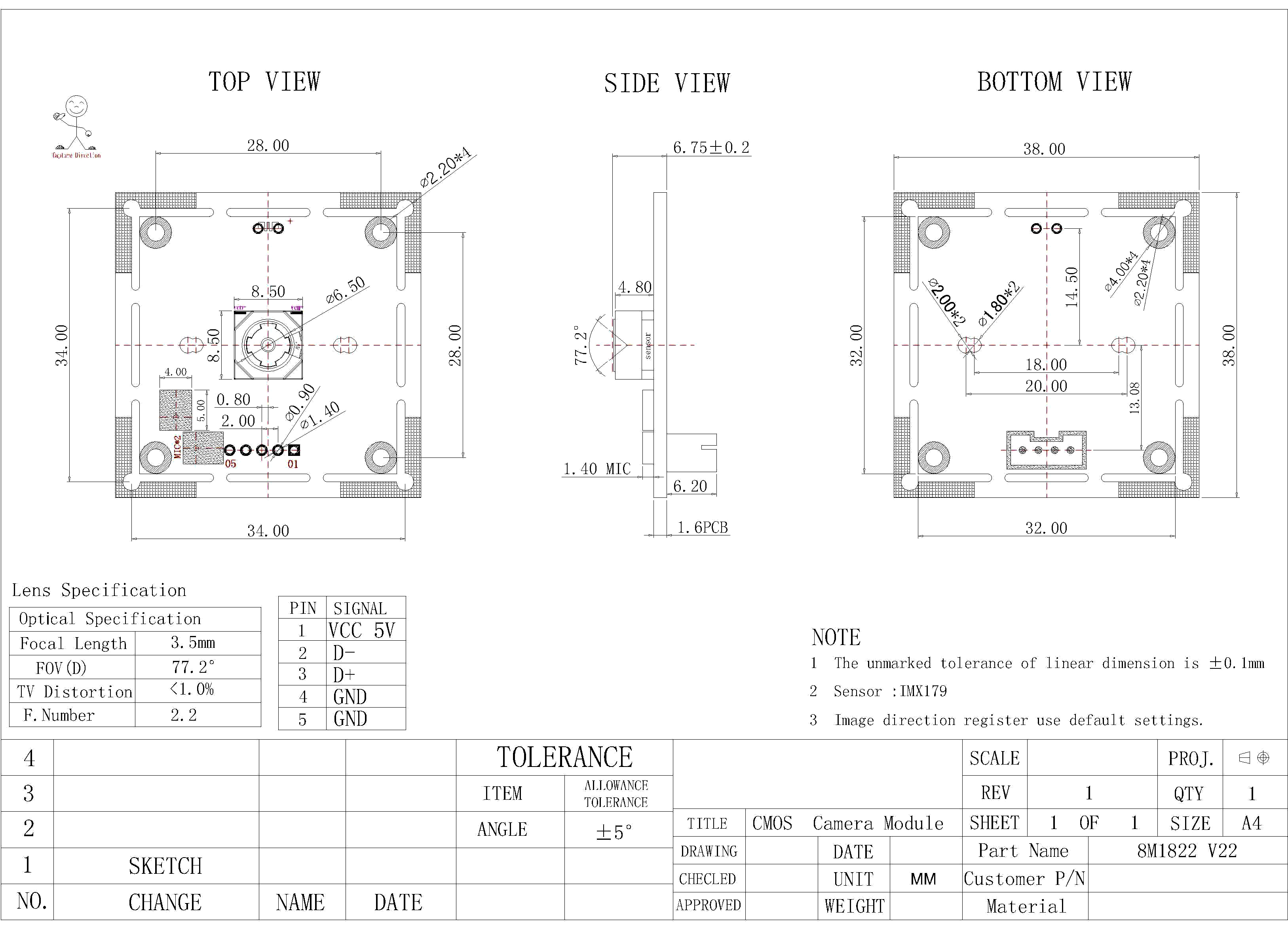

Module Size	38mm × 38mm × 6.75mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	AUTO
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX179 (1/3.2" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3264*2448
Sensitivity	700mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 20FPS / - MJPEG 2592x1944 20FPS / - MJPEG 3264x2448 15FPS / -
Output Formats	YUY2/MJPEG
Microphone	Support
EFL	3.5mm
FOV	77.2°
Certifications	FCC/CE/ROSH
