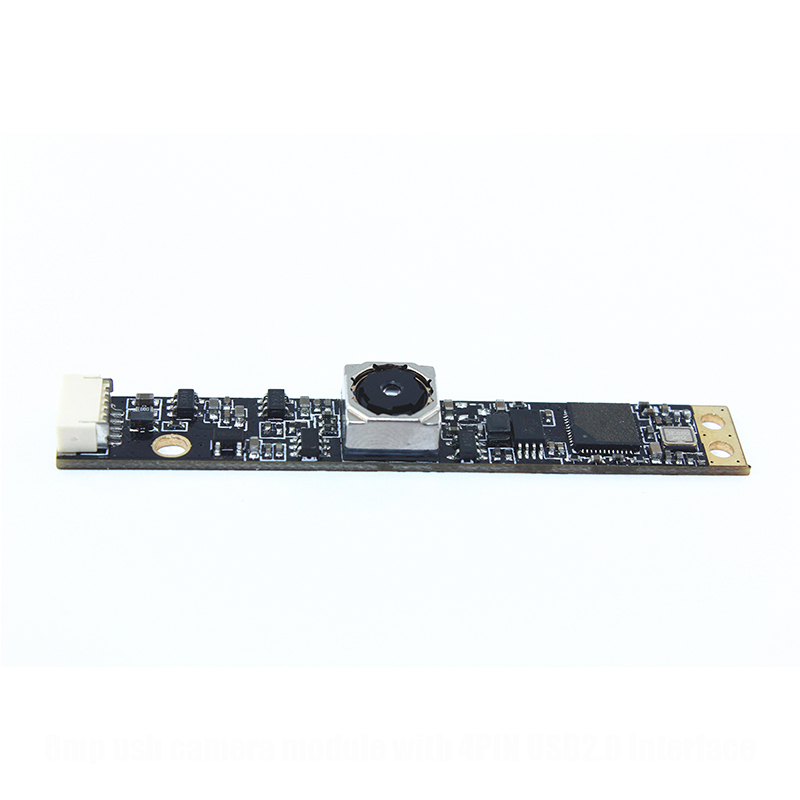

8MP 3264x2448 Auto Focus IMX179 Sensor CMOS custom camera module Mipi 4k Usb Camera Module Raspberry Pi Camera Mo

Product category:

USB Camera Board

SKU:

216886

Price:

$38.40

Description

Model No.	BM8M1915 V11

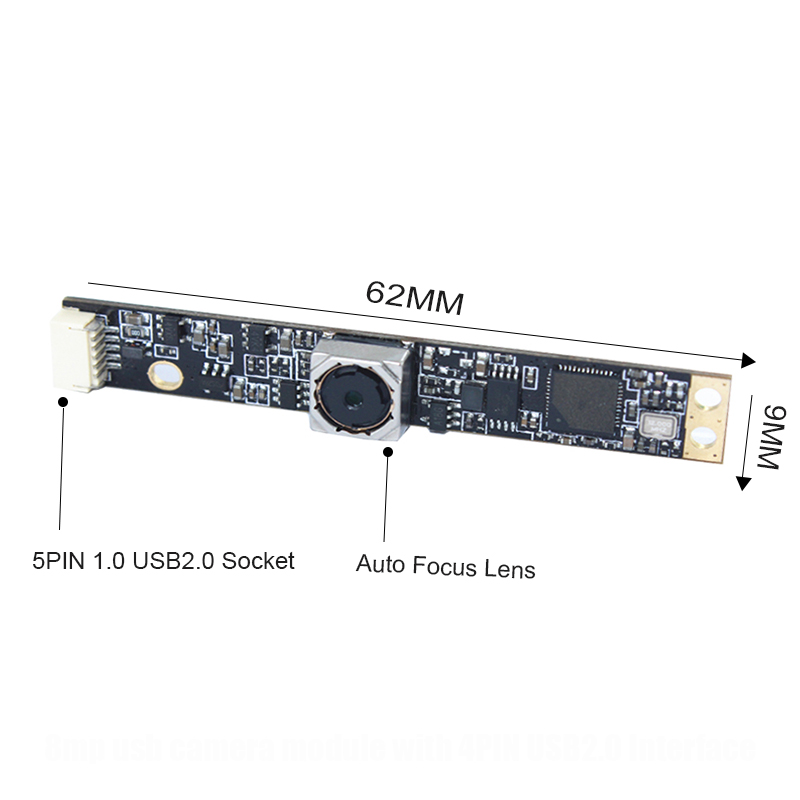

Model Size	62mm × 9mm × 6.05mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	940 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	IMX179 (1/3.2" )
Seneor Package	CSP,Bare Die
Maximum resolution	3264*2448
Sensitivity	700mv /(lux-sec)
Pixel Size	1.4μm x 1.4μm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 20FPS / - MJPEG 2592x1944 20FPS / - MJPEG 3264x2448 15FPS /
S/N Ratio	44b
Max Dynamic Range	83b
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5P
F/No	2.2
EFL	3.5 mm
FOV	77.2°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

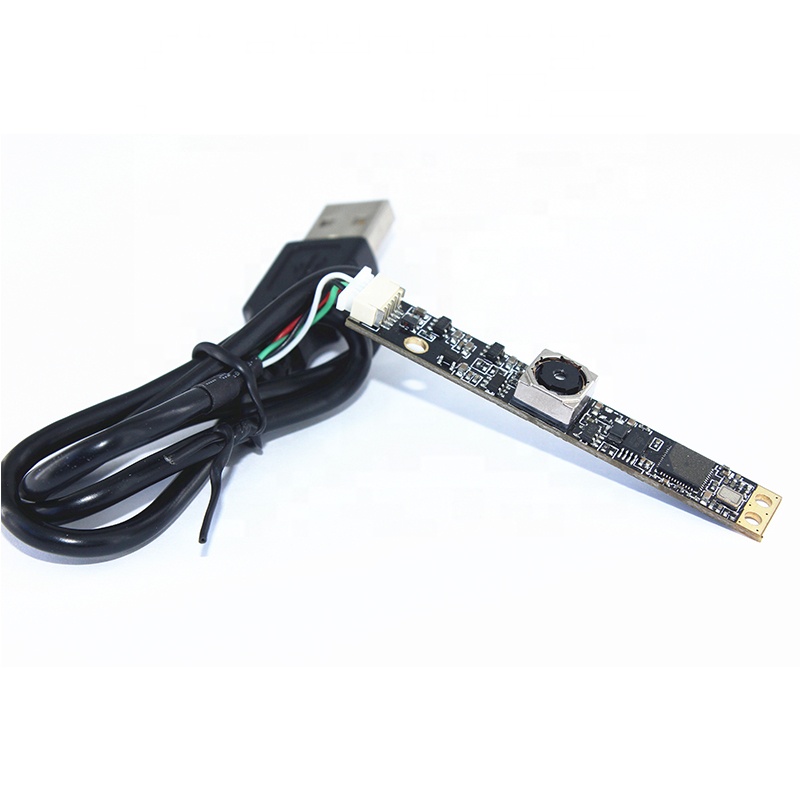

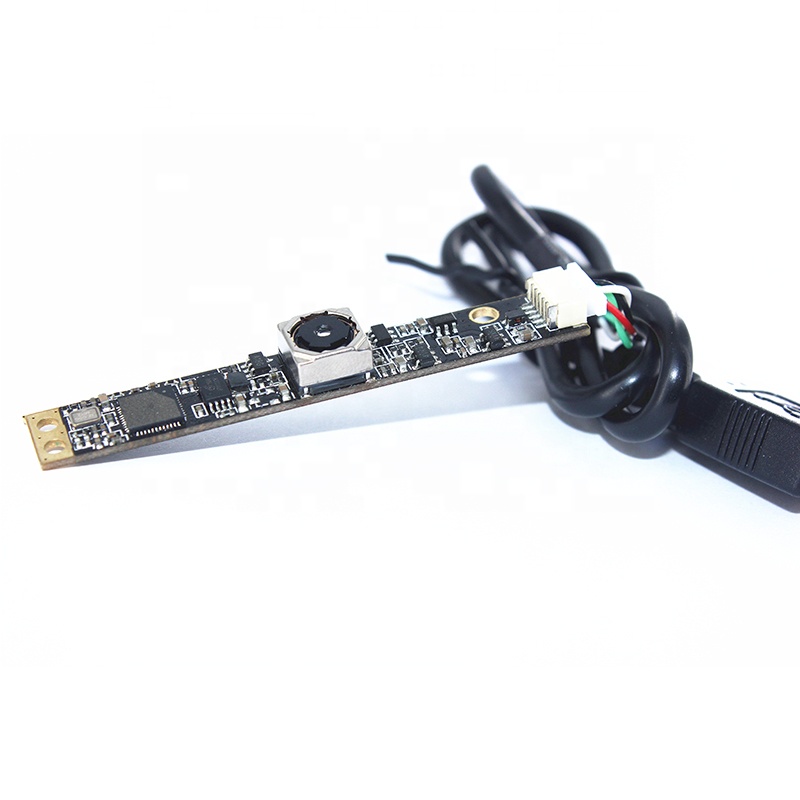

USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV. 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thanks for your understanding.

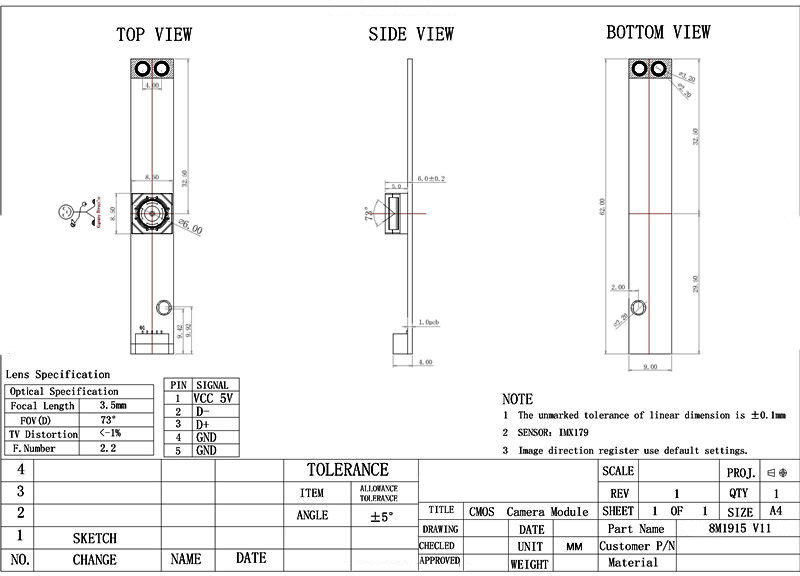

product drawing
