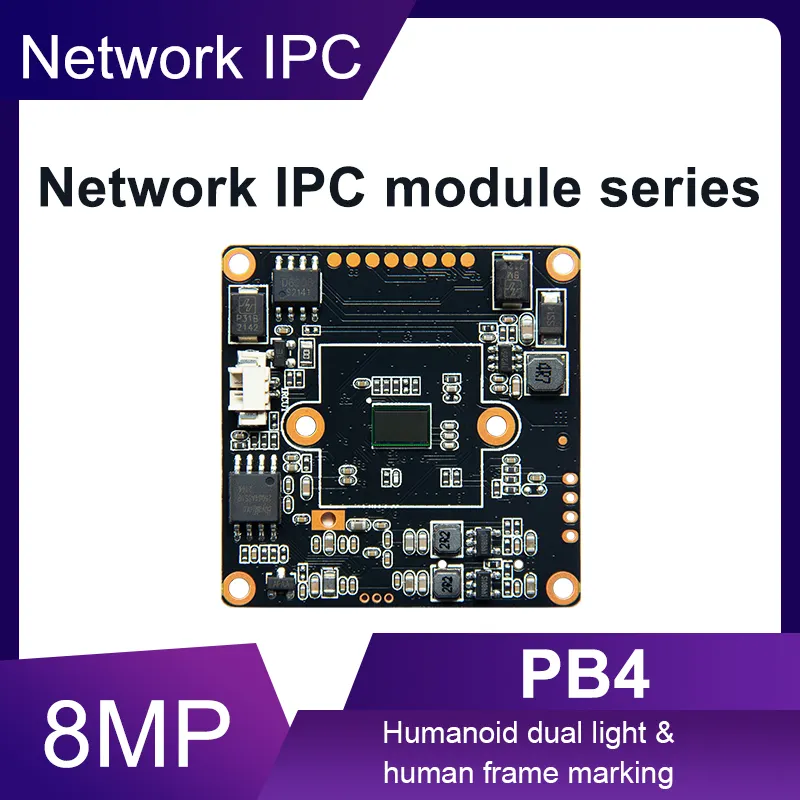

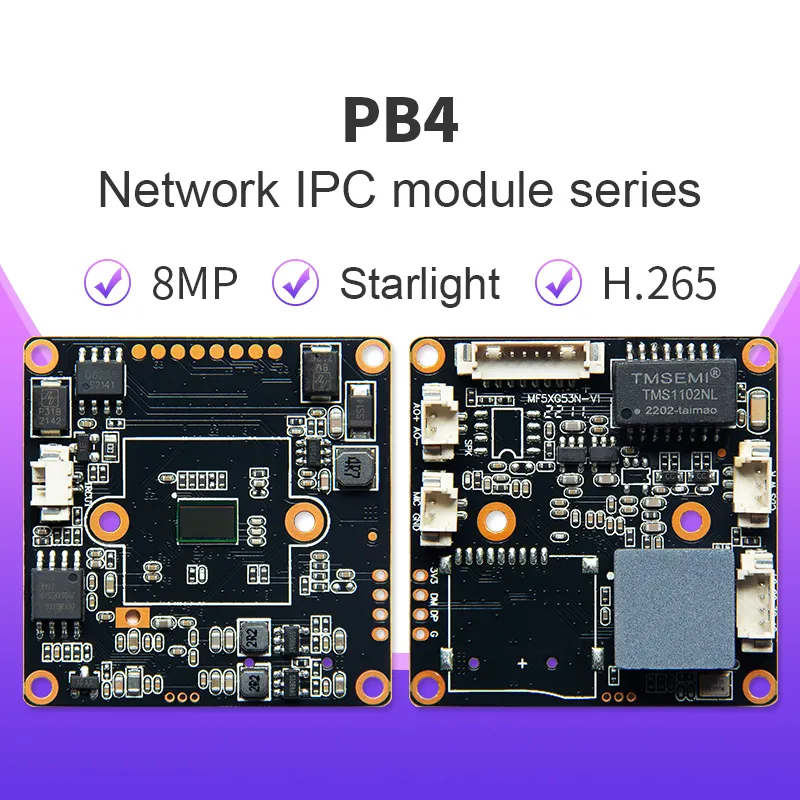

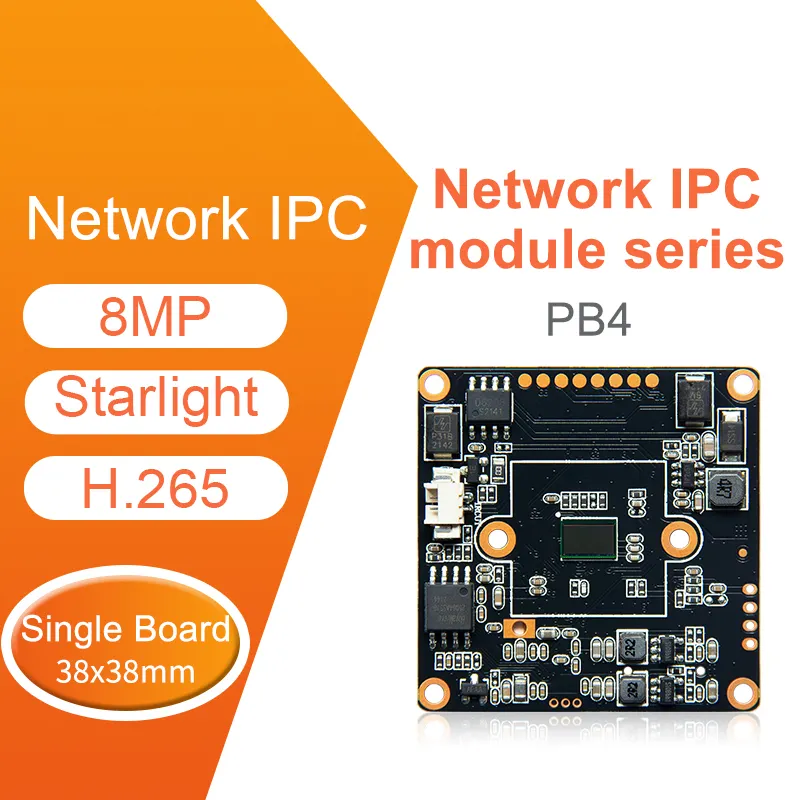

8M IP Camera 4k Module Full Color Camera PCB Board Night Vision Built-in Mic Factory Direct IP Network Camera Module

Product category:

Camera Board

SKU:

200811

Price:

$9.20

Quantity	Price
1 - 999	$9.20
1000 - Unlimited	$8.70

Description

200811-8M-IP-Camera-4k-Module-Full-Color-Camera-PCB-Board-Night-Vision-Built-in-Mic-Factory-Direct-IP-Network-Camera-Module-5.png

200811-8M-IP-Camera-4k-Module-Full-Color-Camera-PCB-Board-Night-Vision-Built-in-Mic-Factory-Direct-IP-Network-Camera-Module-6.png

200811-8M-IP-Camera-4k-Module-Full-Color-Camera-PCB-Board-Night-Vision-Built-in-Mic-Factory-Direct-IP-Network-Camera-Module-7.png

Model No.	PB4
Module	FH8856V200+1/3" GC8053
LUX	COLOR 0.05Lux@F1.2;B/W 0.005Lux@F1.2
S/N	≥50db(AGC OFF)
WDR	DWDR；＞80db
Audio Input	1CH MIC Input
Audio Output	1CH output(Extensible built-in power amplifier)
IO port	1CH RESET
SD card	Expandable Support
WIFI	NO
Coding Format	H.265&H.264
Mainstream	38402160,1-15FPS/S 28801664,1-20FPS/S
Mainstream		25601440,23041296,19201080,1280720,1-30FPS/S
Substream	704576,640480,640360,352288,1-30FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support channel name、Date、1 group of characters superposition adjustable
Data Record	Video,picture
Storage Method	Recycle and alarm video record
Alarm Transfer	Browser、management software、IO output
Protocol	ONVIF2.6、All Net Connect
Client Browser	Support IE6.0 and above browser、Client Browser
Mobile Client	Support IOS、Android
Temperature	-20℃ - +60℃
Humidity	0% - 90%
Power	DC12V /POE
Power	1.5W
Size	38* 38*10mm (Without Lens)
Weight	0.06kg
