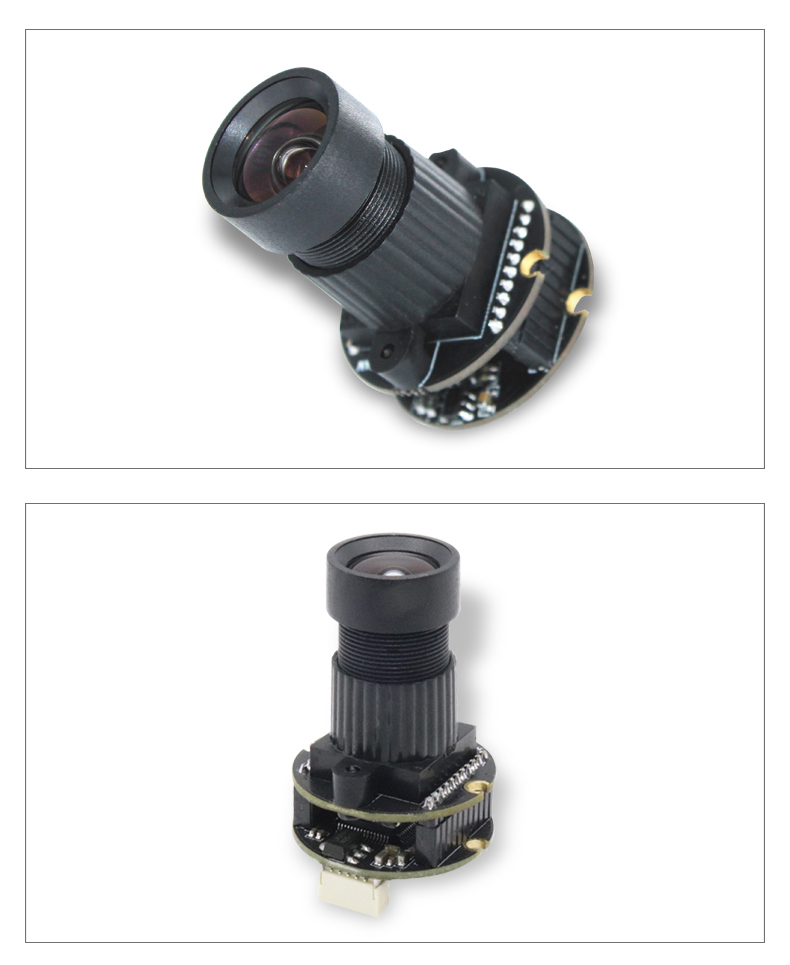

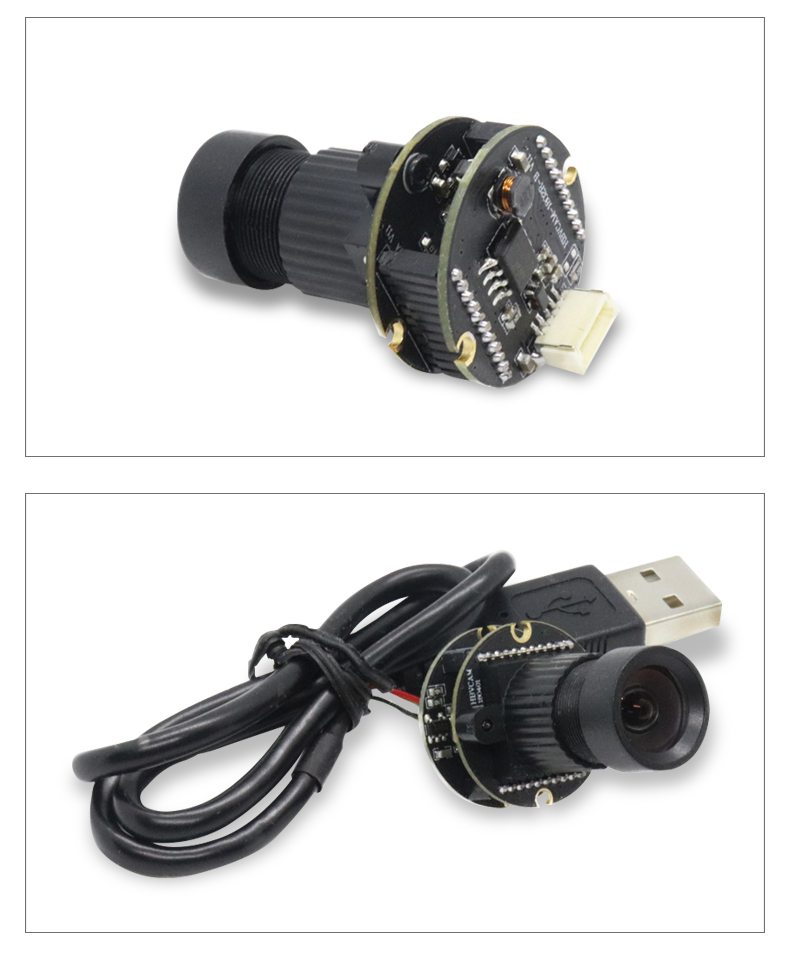

5mp uvc usb camera module Cylindrical Industrial Camera Module

Product category:

USB Camera Board

SKU:

216661

Price:

$45.60

Quantity	Price
1 - 499	$45.60
500 - 999	$39.10
1000 - Unlimited	$34.10

full product footer

Description

5mp usb camera module

5mp uvc usb endoscope camera module with free driver usb 2.0

Model No.	BM1802R V11

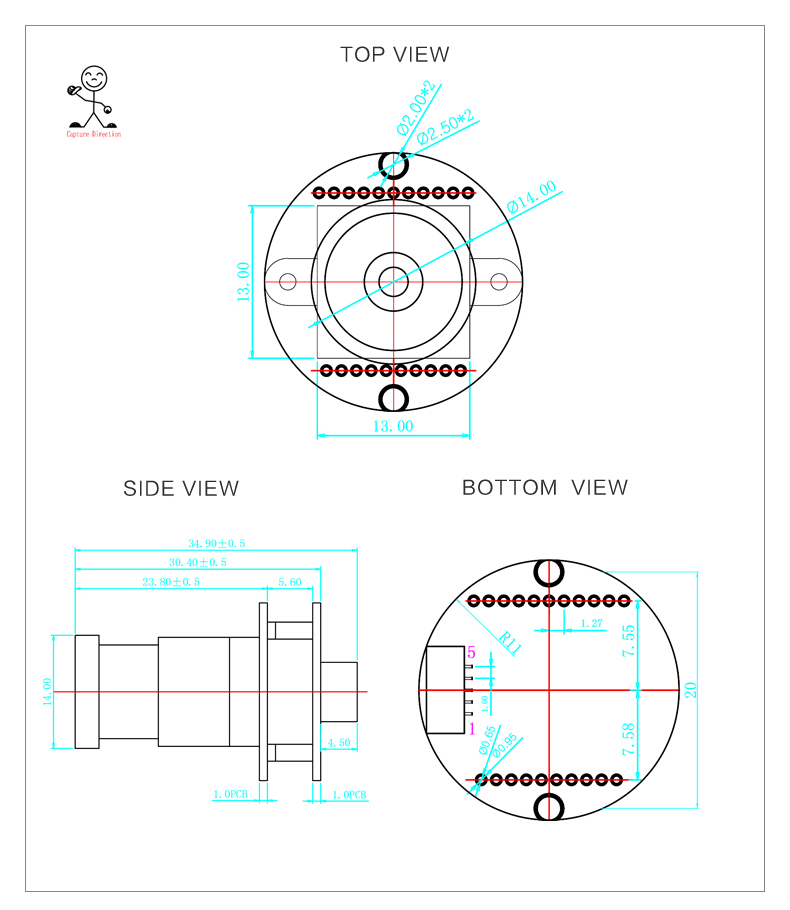

Model Size	Φ22 × 30.4mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	auto
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
Interface	USB 2.0
Power	USB bus power
Power consumption	1000 mW
Package	Anti-electrostatic tray
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	MI5100 (1/2.5" )
Seneor Package	CSP,Bare Die
Active Array Size	2592*1944
Sensitivity	0.51V /(lux-sec)
Pixel Size	2.2m x2.2µm
Maximum Image Transfer Rate	MJPEG 1280x1024 15FPS / YUY2 1280x1024 9FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 15FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS
S/N Ratio	40.5db
Dynamic Range	67.4db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Lens Construction	2G2P
Microphone	Support
F/No	2.4
EFL	4.2m
FOV	77°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
R Filter	650 ± 10nm
Module Package	Anti-electrostatic tray
Package	LQFN-40pin

♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

♦Does the camera support OTG?
Most of our usb cameras support OTG function.

♦Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player

♦Can you supply the USB cable together with camera?

Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
