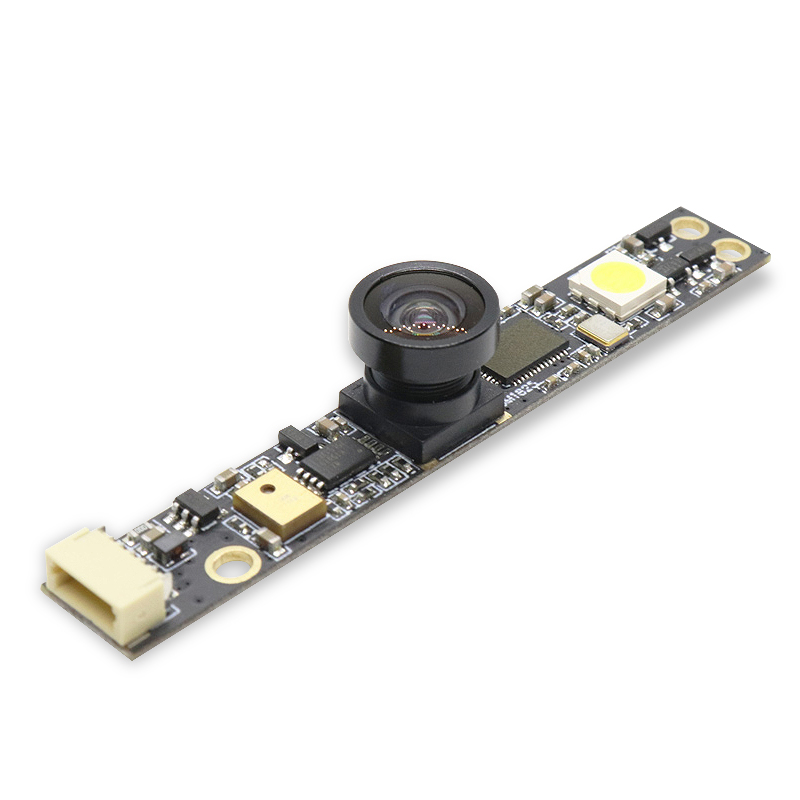

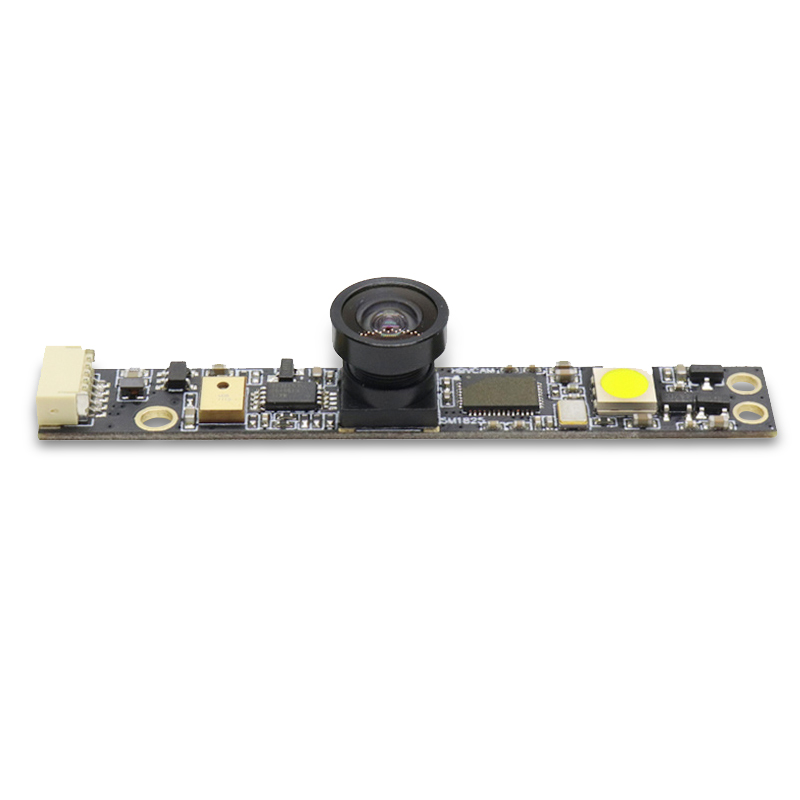

5MP laptop ov5640 CMOS AF camera module with microphone

Product category:

USB Camera Board

SKU:

216664

Price:

$24.00

Description

Module No.	BM5M1825 V11

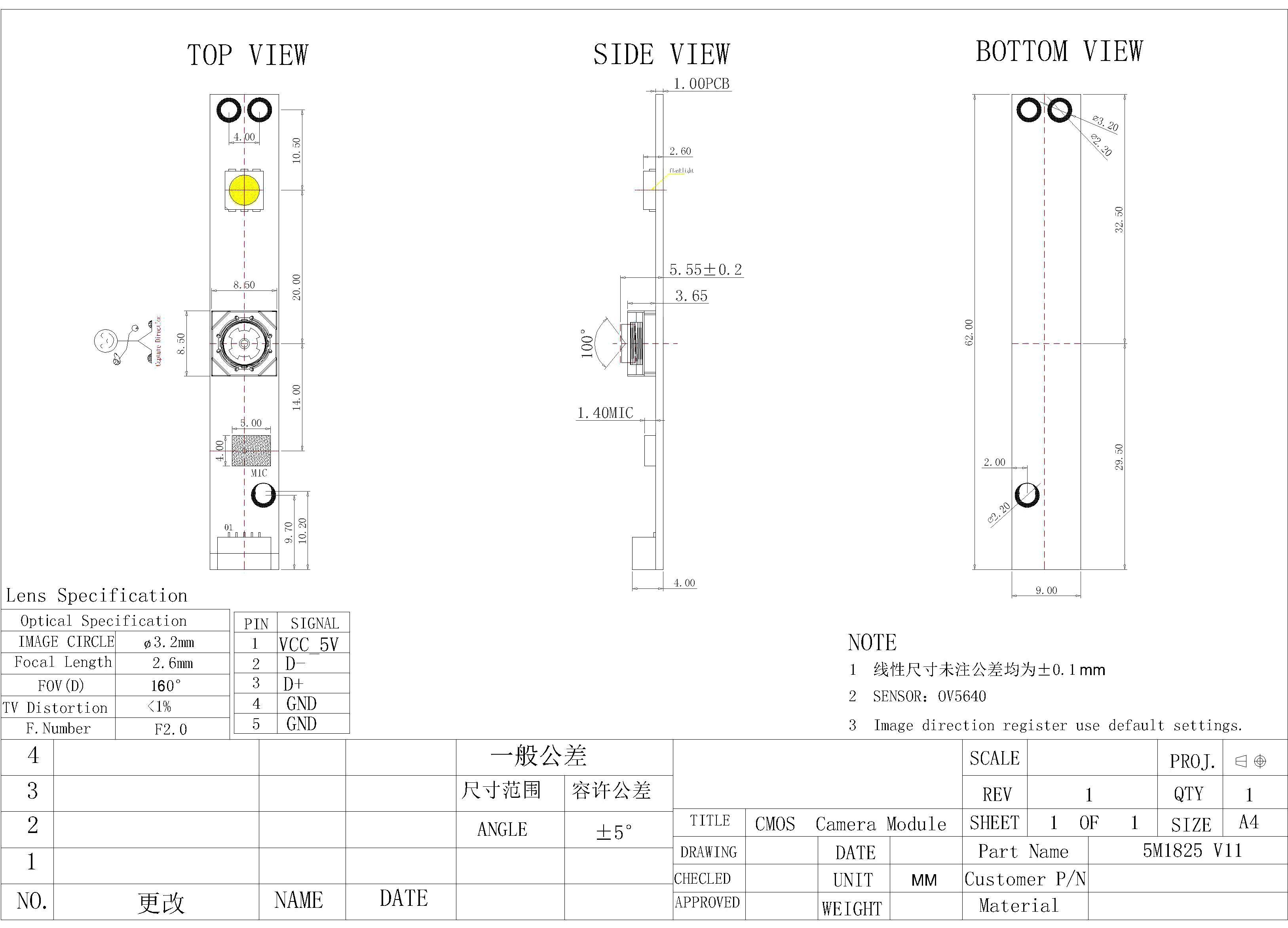

Module Size	62mm × 9mm × 5.55mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1200 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mv /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1280x720 30FPS / YUY2 1280x720 12FPS MJPEG 1280x960 15FPS / YUY2 1280x960 5FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
S/N Ratio	36 db
Max Dynamic Range	68 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4P
F/No	2.0
EFL	2.6 mm
FOV	100°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
