5MP Fixed focus HD MI5100 CMOS Small USB Camera Module support with OTG and UTV

Product category:

USB Camera Board

SKU:

216987

Price:

$45.60

Description

Product Description

Module No.	BM1802R V11
Module Size	Φ22 × 30.4mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	MI5100 (1/2.5" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	0.51V /(lux-sec)
Pixel Size	2.2µm x 2.2µm
Maximum Image Transfer Rate	MJPEG 1280x1024 15FPS / YUY2 1280x1024 9FPS
	MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS
	MJPEG 1920x1080 15FPS / YUY2 1920x1080 4FPS
	MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS
	MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS
S/N Ratio	40.5 db
Max Dynamic Range	67.4 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.4
EFL	4.2 mm
FOV	77°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

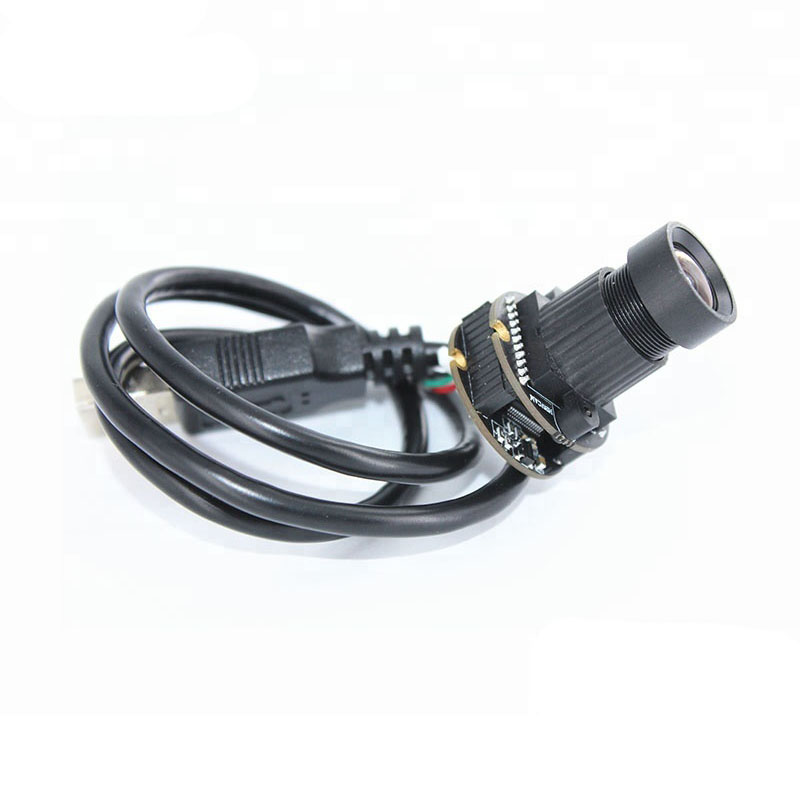

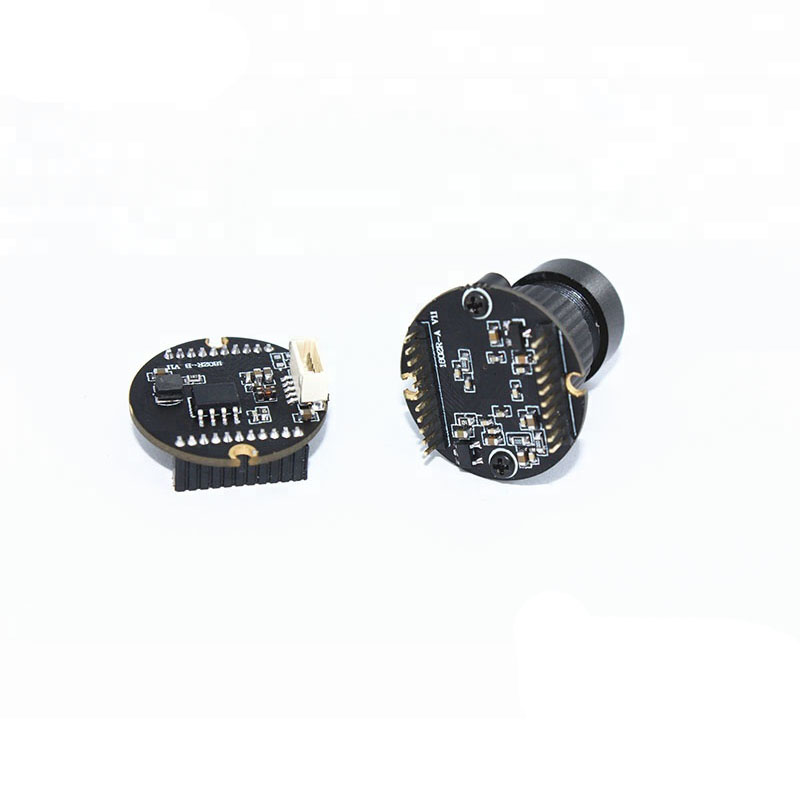

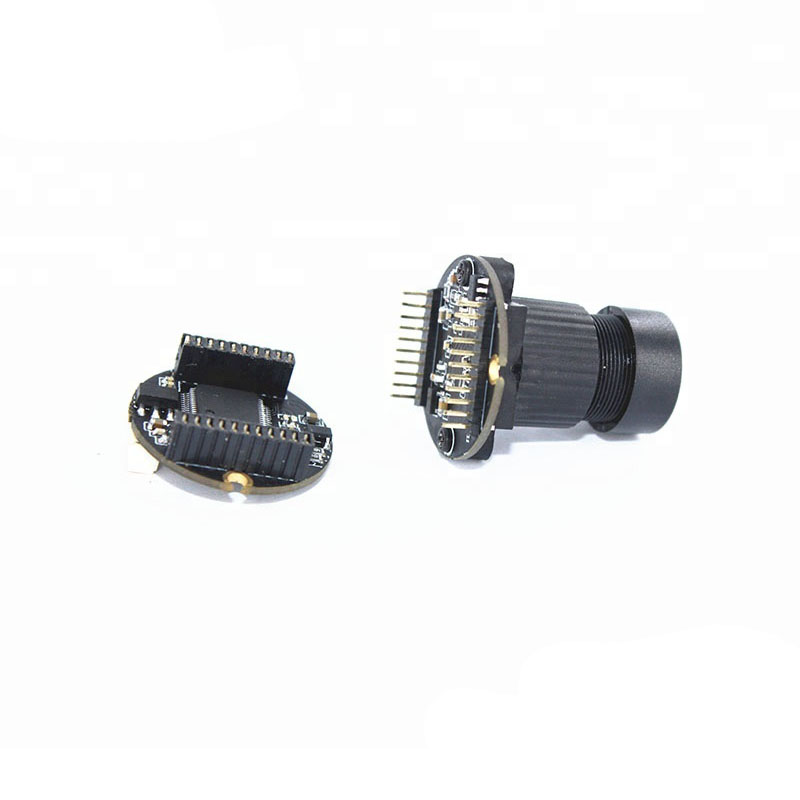

Detailed Images
