5MP AHD Camera Module CCTV Camera System DVR with 2DNR Support AHD/TVI/CVI/CVBS Default 20fps 4MP Optional Security

Product category:

Camera Board

SKU:

200761

Price:

$2.00

Quantity	Price
1 - 999	$2.00
1000 - Unlimited	$1.50

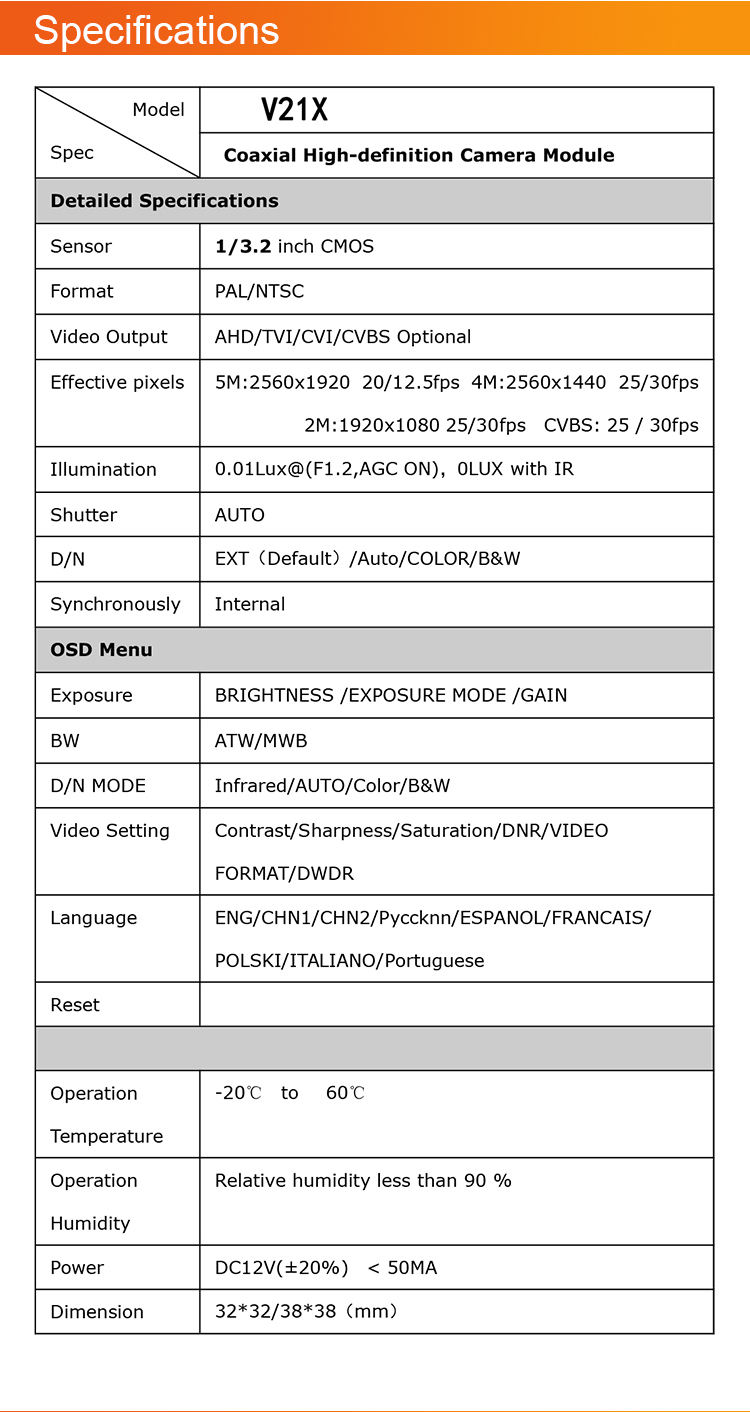

Description

Model No.	V21X
Sensor	1/3.2＂CMOS
DSP	XC5029
System	PAL/NTSC
Effective Pixel	5M: 25601920 20/12.5fps 4M: 25601440 25/30fps 2M: 1920*1080 25/30fps CVBS: 25/30fps
Illumination	0.01Lux@(F1.2,AGC ON)，0LUX with IR
Shutter	AUTO
D/N	EXT（Default）/AUTO/COLOR/B/W
Synchronously	Internal

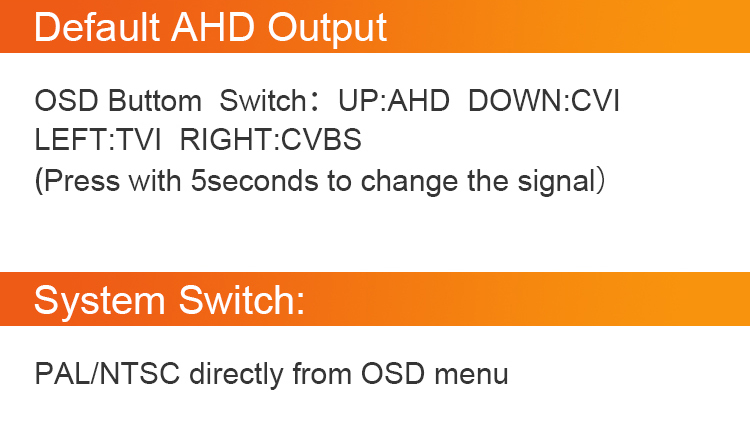

Video output	AHD/TVI/CVI/CVBS
Exposure	BRIGHTNESS / EXPOSURE MODE / GAIN
BW	ATW/MWB
D/N	Infrared/AUTO/COLOR/B/W
Video Setting	Contrast/Sharpness/Saturation/DNR/Video/Format/DWDR
Language	ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO
Reset	Support
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 90 %
Power	DC12V(±20%) - 50mA

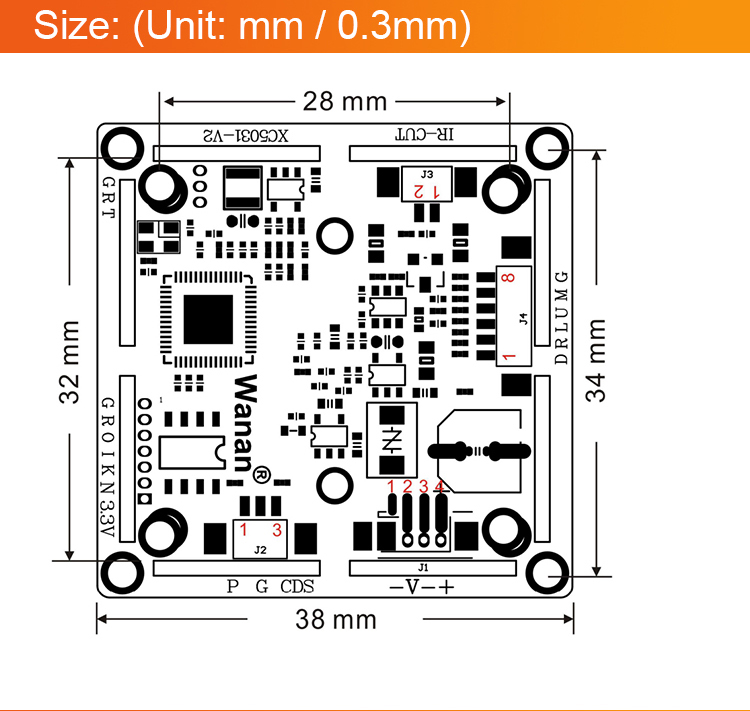

Size	3232/3838（mm)
