5MP 6~22mm CCD 1/2.5" F2.2 Auto iris D14 Optical cctv lens

Product category:

Lens

SKU:

208762

Price:

$21.00

Quantity	Price
1 - 999	$21.00
1000 - 9999	$20.50
10000 - Unlimited	$20.00

full product footer

Description

5MP 6~22mm CCD 1/2.5" F2.2 Auto iris D14 Optical cctv lens

Resolution	5MP
Image format	1/2.5"
Focal length	6~22mm
Aperture	F2.2
Mount	D14
Field Angel D H V(°)		1/2.5		1/3		1/4
		Short-focus	Long-focus	Short-focus	Long-focus	Short-focus	Long-focus
	D	58	20.4	46.5	18	34.5	12.6
	H	46.4	16.3	37.2	14.4	27.6	10.1
	V	34.8	12.2	27.9	11.4	22.5	7.6
Optical Distortion	-0.61~-15.6%(1/2.5")
CRA	≤11.94°(Short-focus) ≤11.38°(Long-focus)
M.O.D.	0.3m

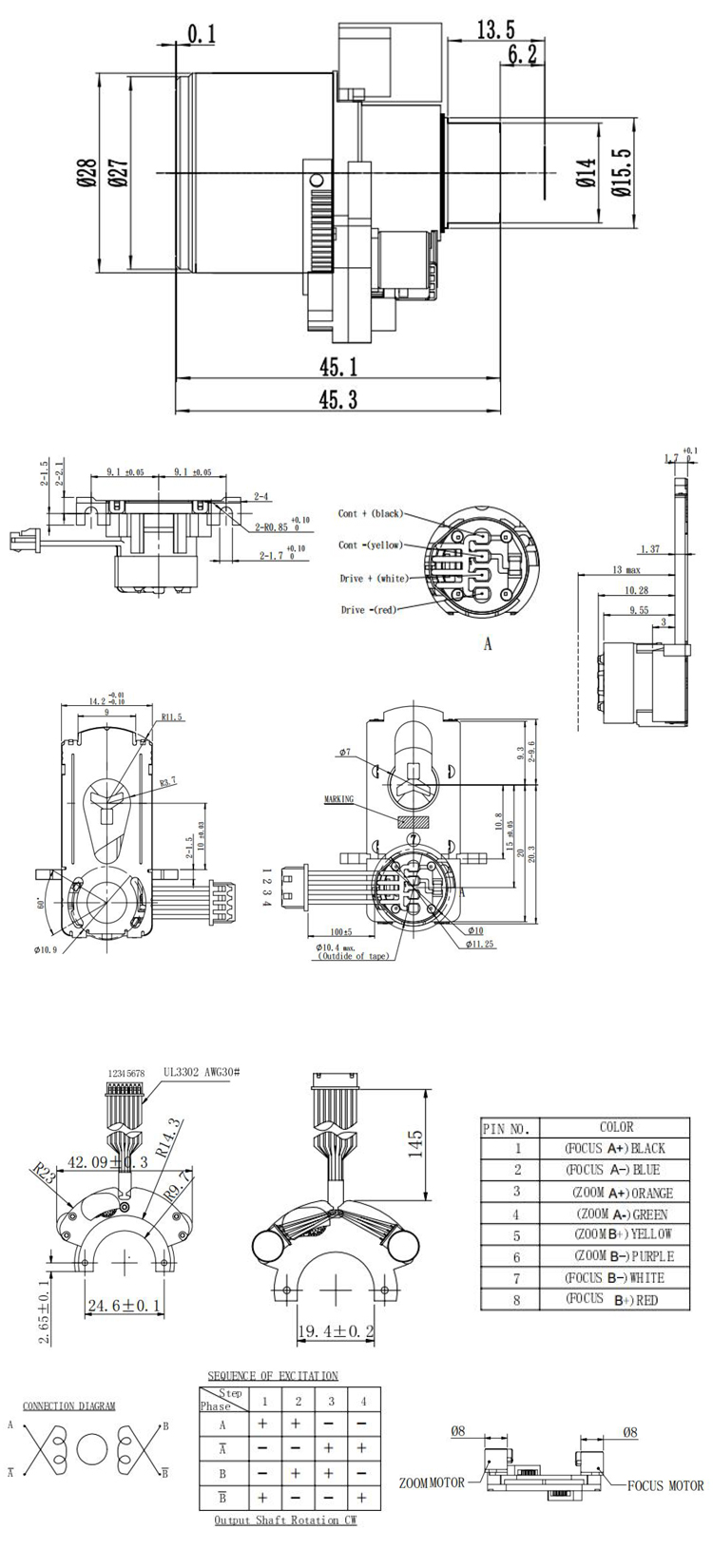

Dimension	ø28*45.3mm
Weight	31.3±2g
Flange BFL	13.5mm
BFL	6.4mm
MBF	6.2mm
IR Correction	Yes
Operation	Iris				Fixed
	Focus				Manual
	Zoom				Manual
Operating temperature	-20℃~+60℃
