5Mp 2K Hd Free Driver Cmos Sensor OV5648(1/4") Camera Module For Industrial Control Camera

Product category:

USB Camera Board

SKU:

216931

Price:

$26.40

Description

Product Description

Product Name	5 MP 2K industrial control industrial camera, advertising machine, equipment embedded built-in camera module
Module No.	BM5M202014AF V33
Module Size	38mm × 38mm × 7.05mm±0.2MM
Features	1. Standard industrial camera 38, 32mm panel structure 2, can add 6 white lights
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000mW
Operating system request	Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc
Sensor	OV5648 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
		S/N Ratio	34 db
		Max Dynamic Range	67 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	4P+IR
		F/No	2.8
EFL	3.1mm
FOV	65.4°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

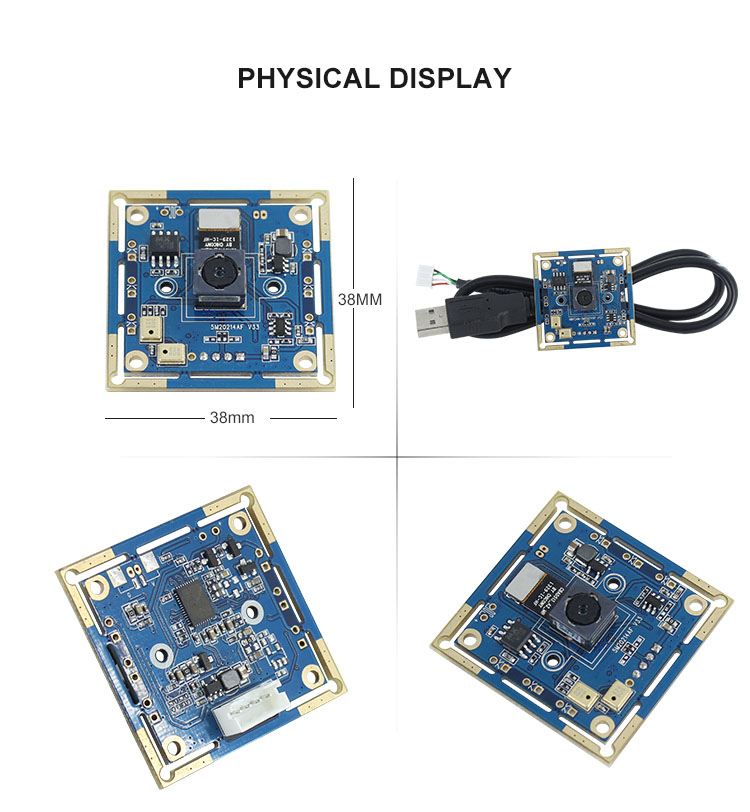

Detailed Images
