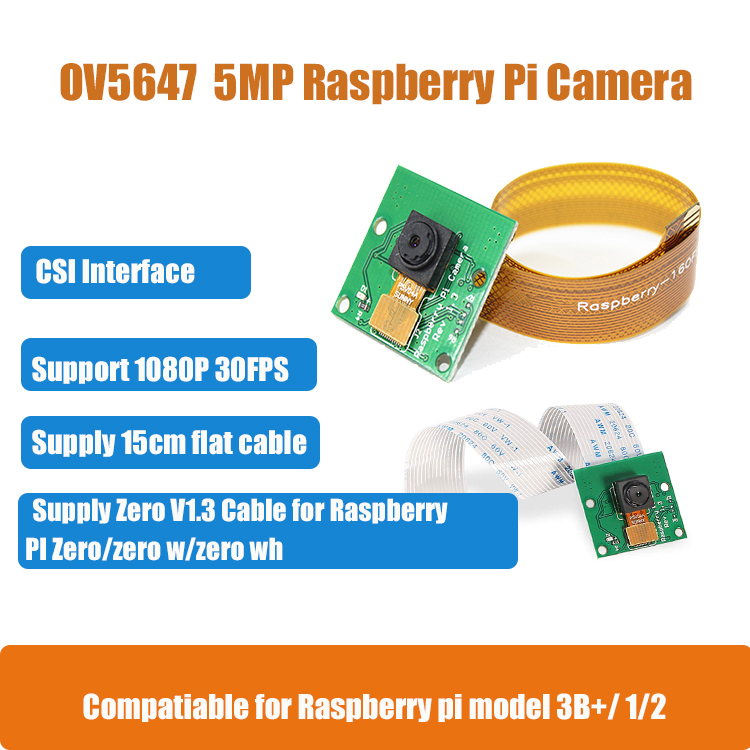

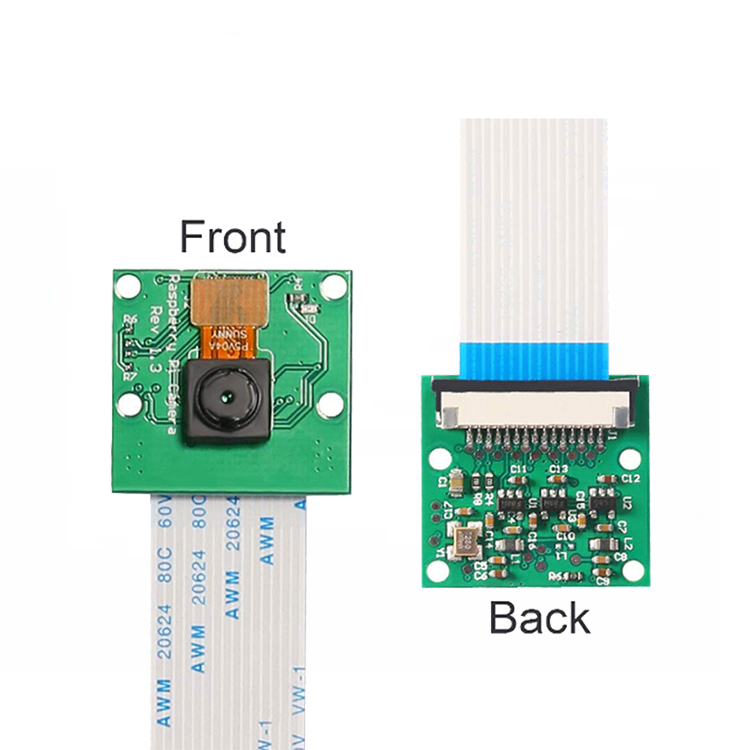

5MP 2592 * 1944 Raspberry Pi 3 Model B+1080P OV5647 5 mega pixel 30 FPS Raspberry Pi 3 Camera

Product category:

Camera Board

SKU:

217068

Price:

$3.00

Description

Module No.	Raspberry Pi Camera

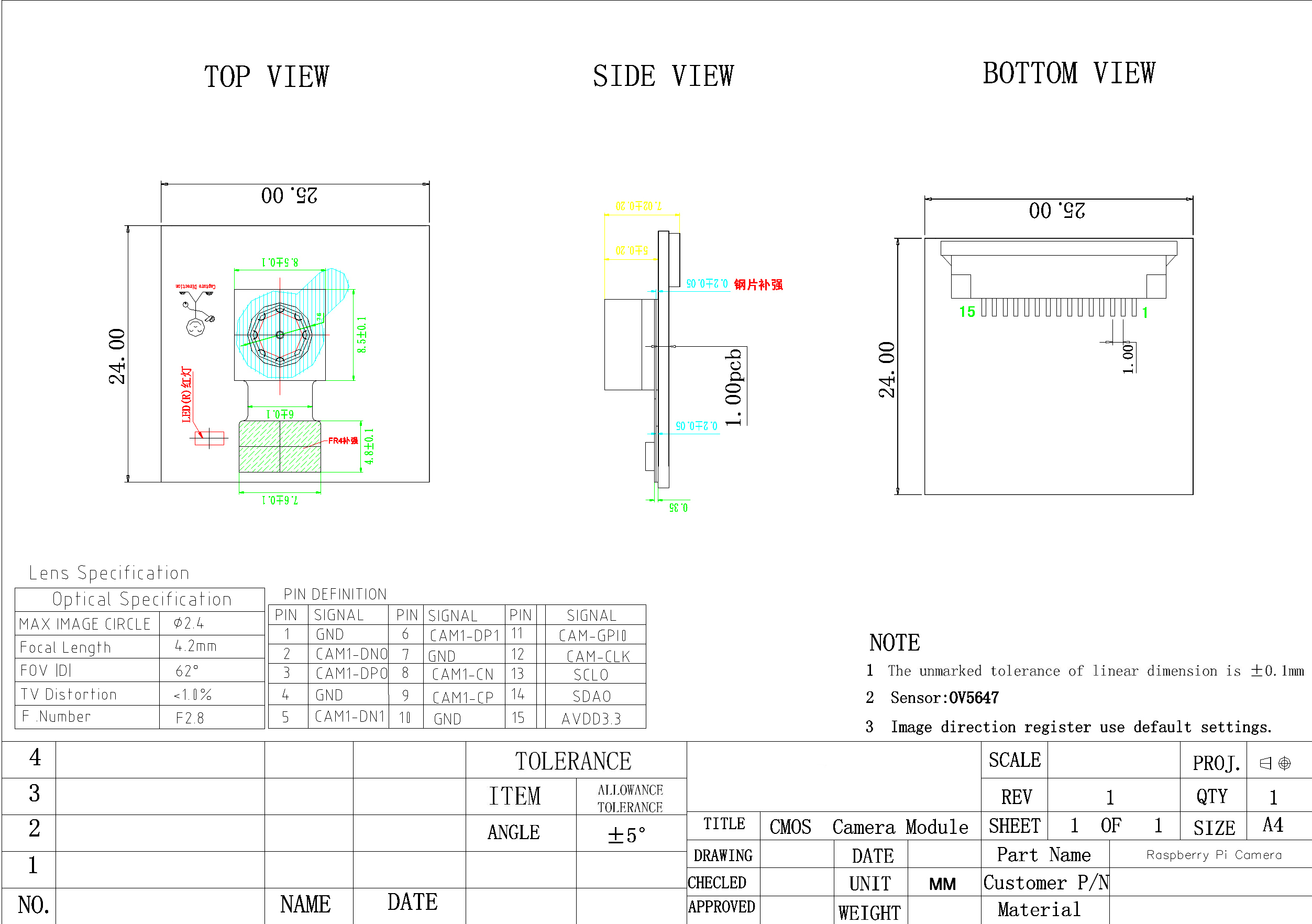

Module Size	25mm × 24mm × 7±0.2mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM to infinity
Resolution	800LW/PH (Center)
PCB printing ink	green
interface	15p-1.0 mip
Working power supply	3.3v（pin15）
Operating system	Raspberry Pi

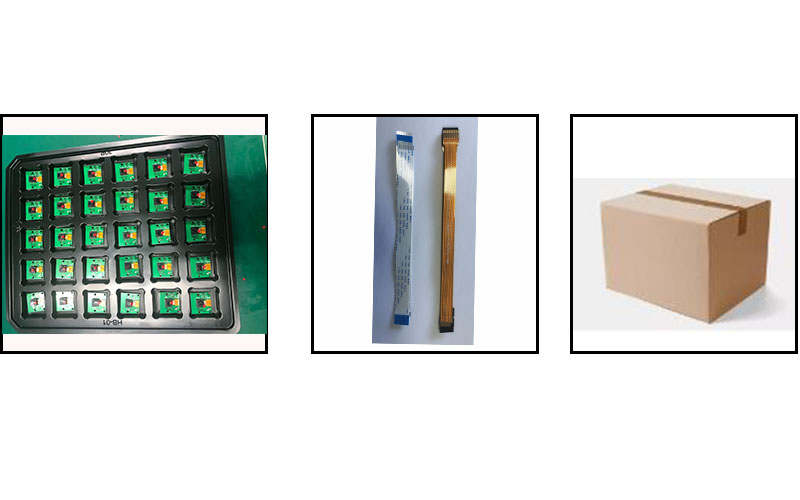

Package	Anti-electrostatic tray
Certifications	FCC and CE
Sensor Type	OV5647 (1/4" )
Active Array Size	2592*1944
Sensitivity	600mV/Lux-sec
Pixel Size	1.4µm x1.4µm
Maximum Image Transfer Rate	15 fps for QSXGA;
Output formats	8/10bit RGB RAW output
S/N Ratio	34db
Dynamic Range	67db @8x gain
Package	CSP,Bare Die
Lens Type
Lens Construction	4P+IR
F/No	2.8
EFL	3.2 mm
BFL(Optical)	2.7mm
DFOV	62°
TV Distortion	<0.24%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
