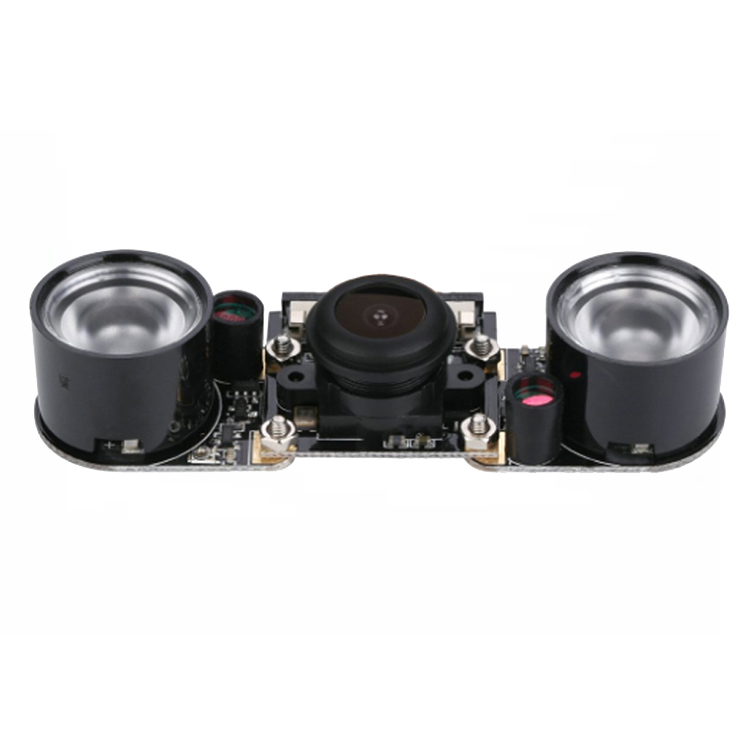

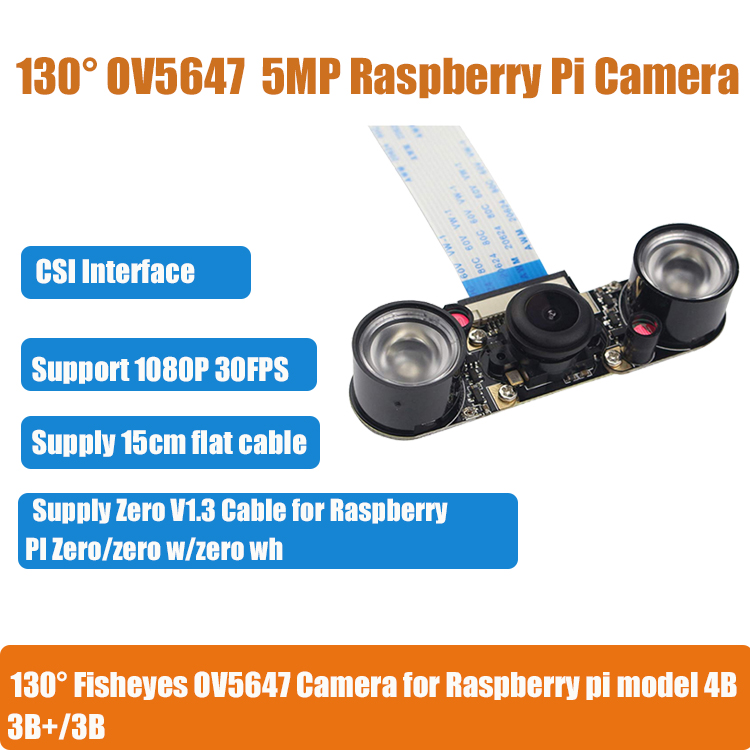

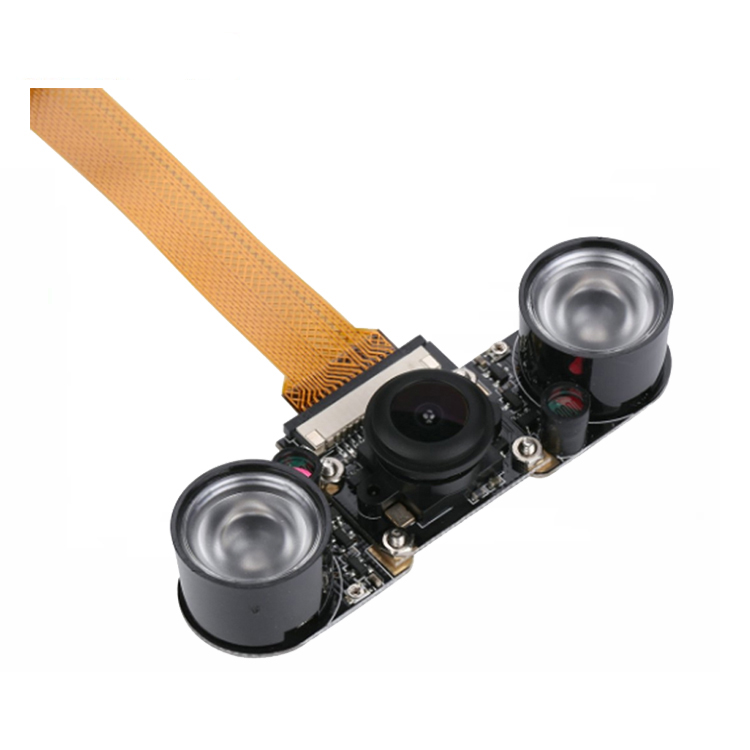

5 Mega Pixel OV5647 CMOS Sensor 130 Degree Wide Angle Lens Night Vision Raspberry pi 3b camera

Product category:

USB Camera Board

SKU:

217093

Price:

$6.60

Description

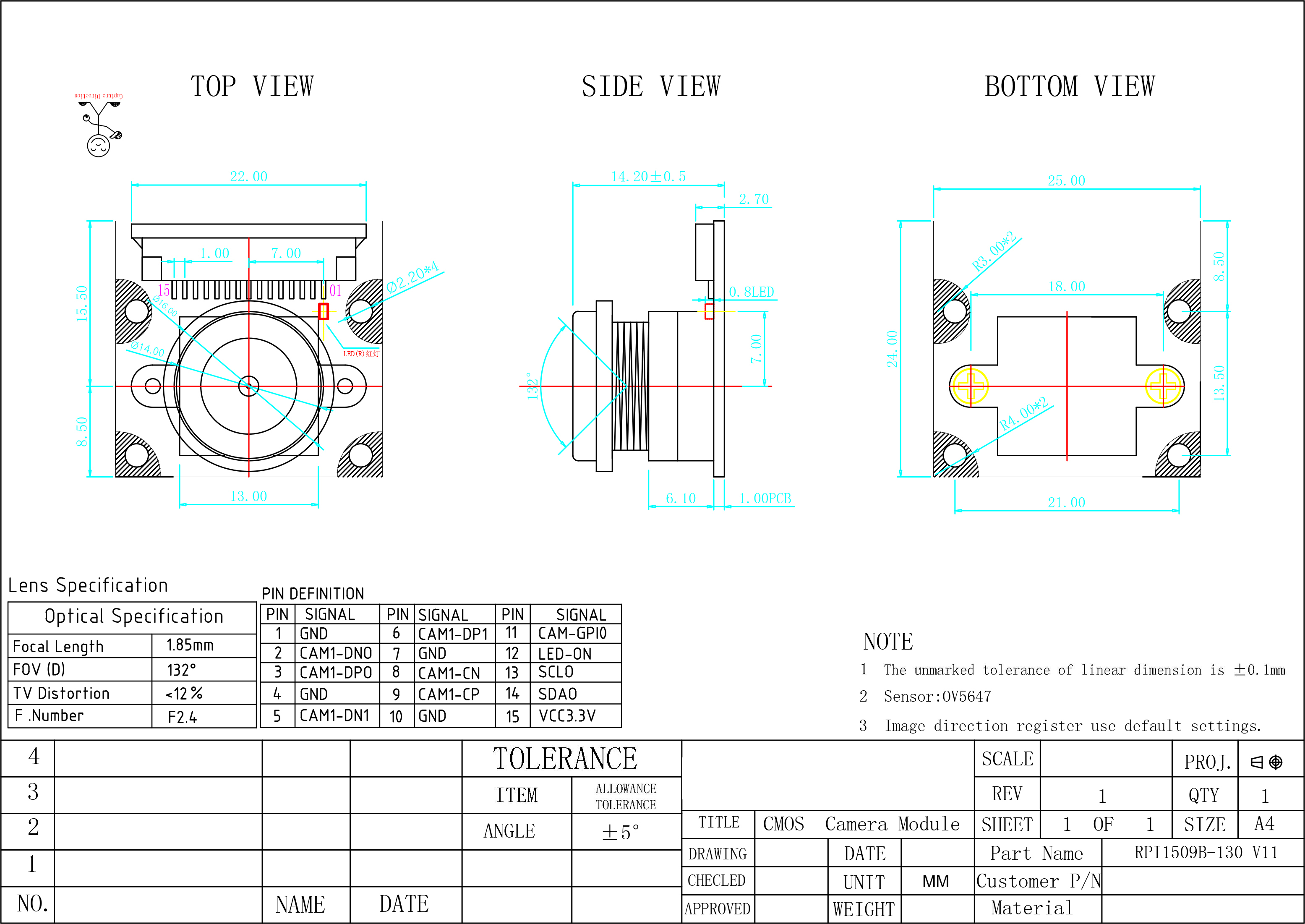

Module No.	HR1509B-130 V11
Module Size	25mm × 24mm ×14.2±0.5mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM to infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	15p-1.0 mip
Working power supply	3.3v（pin15）
Operating system	Raspberry Pi
Package	Anti-electrostatic tray
Certifications	FCC and CE
Sensor Type	OV5647 (1/4" )
Active Array Size	2592*1944
Sensitivity	600mV/Lux-sec
Pixel Size	1.4µm x1.4µm
Maximum Image Transfer Rate	15 fps for QSXGA;
Output formats	8/10bit RGB RAW output
S/N Ratio	34db
Dynamic Range	67db @8x gain
Package	CSP,Bare Die
Lens Type
Lens Construction	4E
F/No	2.4
EFL	1.85mm
BFL(Optical)	1.95mm
DFOV	130°
TV Distortion	<12%
Relative Illumination (Sensor)	70%
IR Filter	No
