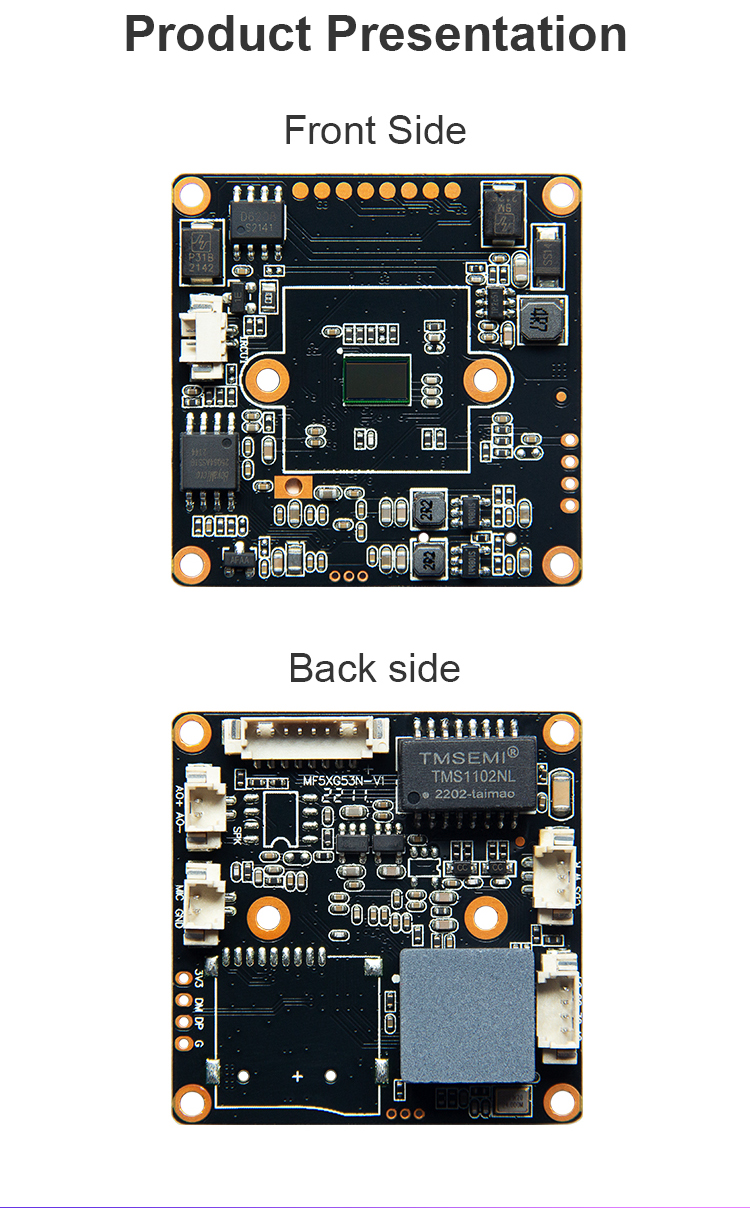

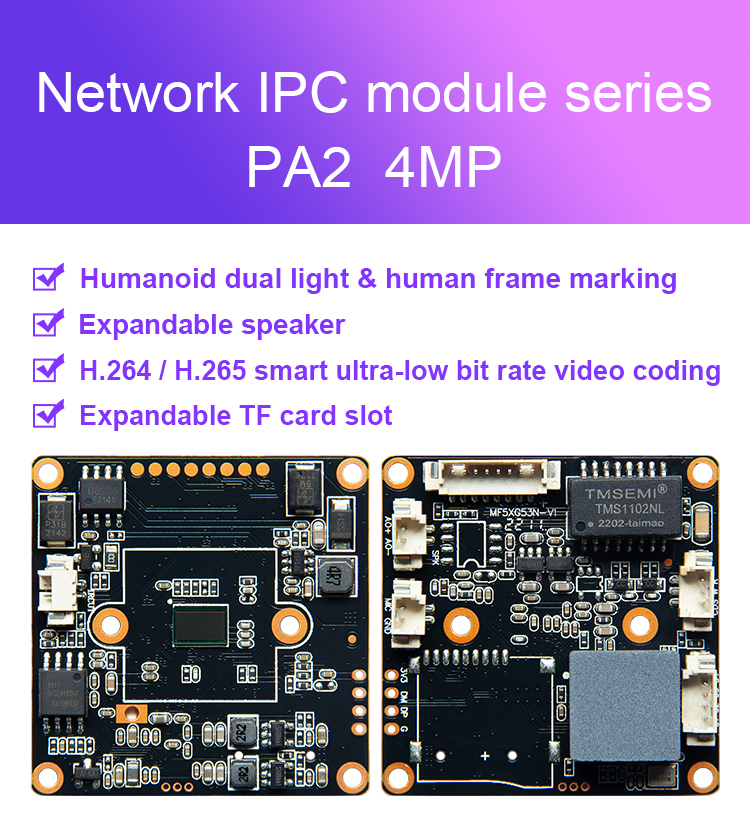

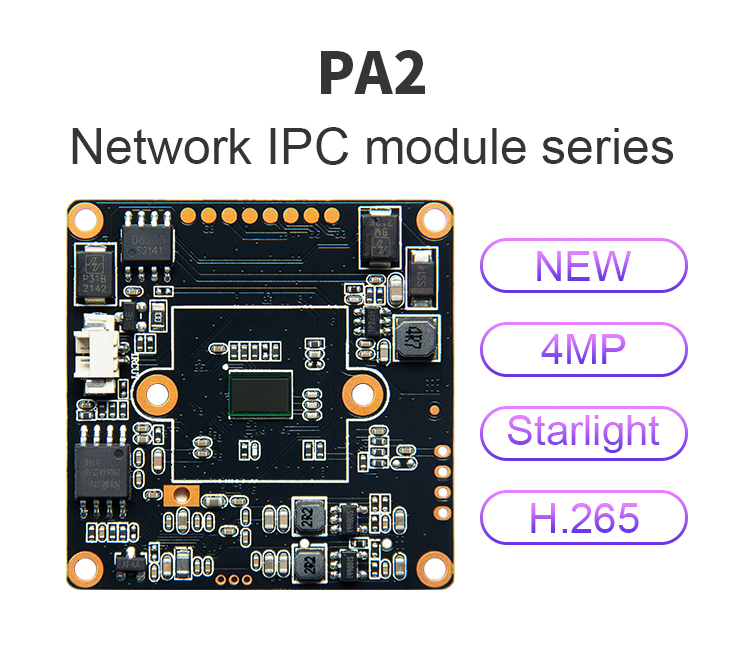

4MP PA2 IP Camera Board PCB Camera Module Video Recorder CCTV Camera PCB Board Shenzhen

Product category:

Camera Board

SKU:

200765

Price:

$6.50

Quantity	Price
1 - 999	$6.50
1000 - Unlimited	$6.00

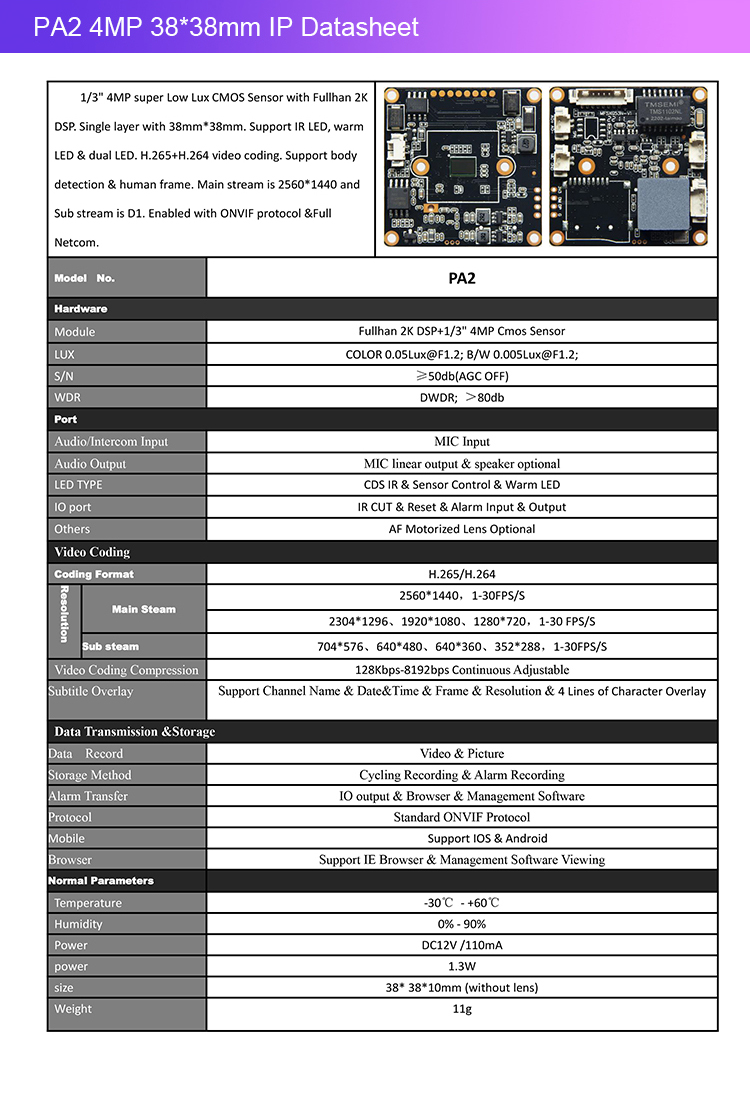

Description

Model No.	PA2
Module	Fullhan 2K DSP+1/3'' 4MP CMOS Sensor
LUX	Color 0.05Lux@F1.2;B/W 0.005Lux@F1.2
S/N	≥50db(AGC OFF)
WDR	DWDR; >80db
Audio/Intercom Input	MIC Input
Audio Output	MIC linear output & speaker optional
LED TYPE	CDS IR & Sensor Control & Warm LED

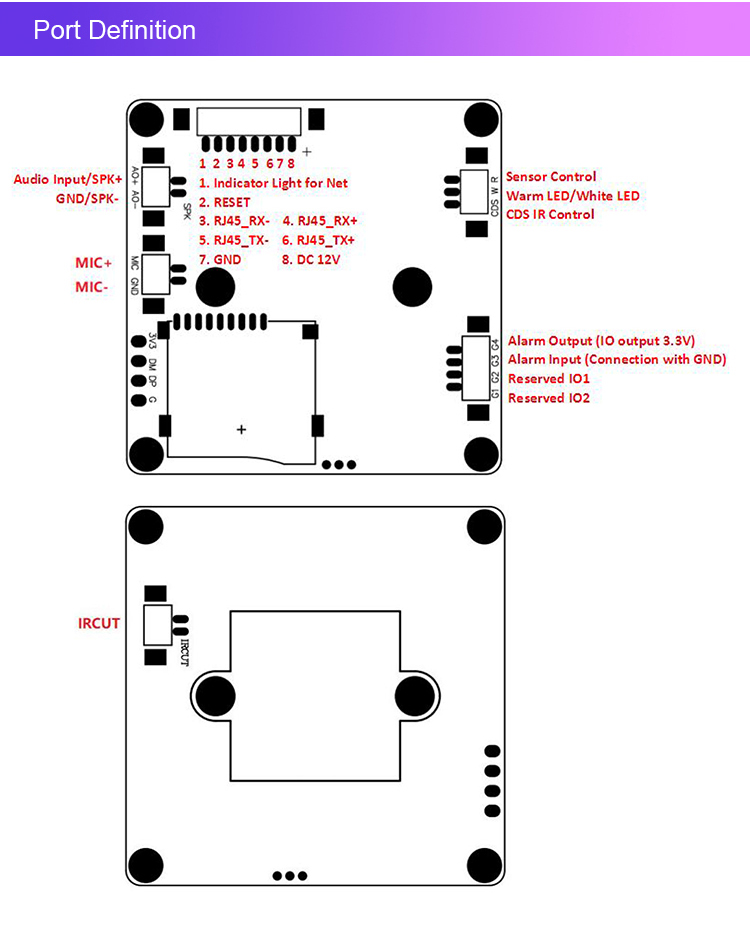

IO port	IR CUT & Reset & Alarm Input & Output
Others	AF Motorized Lens Optional
Coding Format	H.265/H.264
Main Steam	2560*1440,1-30FPS/S
Main Steam		23041296,19201080,1280*720,1-30FPS/S
Sub Steam	704576,640480,640360,352288,1-30FPS/S
Video Coding Compression	128Kbps-8192bps Continuous Ajustable
Subtitle Overlay	Support Channel Name&Time&Frame&Resolution&4 Lines of Charactor Overlay
Data Record	Video & Picture
Storage Method	Cycling Recording & Alarm Recording
Alarm Transfer	IO output & Browser & Management Software
Protocol	Standard ONVIF Protocol
Mobile	Support IOS & Android
Browser	Support IE Browser & Management Software Viewing
Operation Temperature	-30℃ to +60℃
Humidity	0%-90%
Power	DC12V/110mA
Power	1.3W
Size	383810mm(without lens)
Weight	11g
