4MP IPC Board Black Light IP Camera Module CCTV PCB Board Shenzhen Factory Directly Sales Full Color Low LUX

Product category:

Camera Board

SKU:

200803

Price:

$6.80

Quantity	Price
1 - 999	$6.80
1000 - Unlimited	$6.30

Description

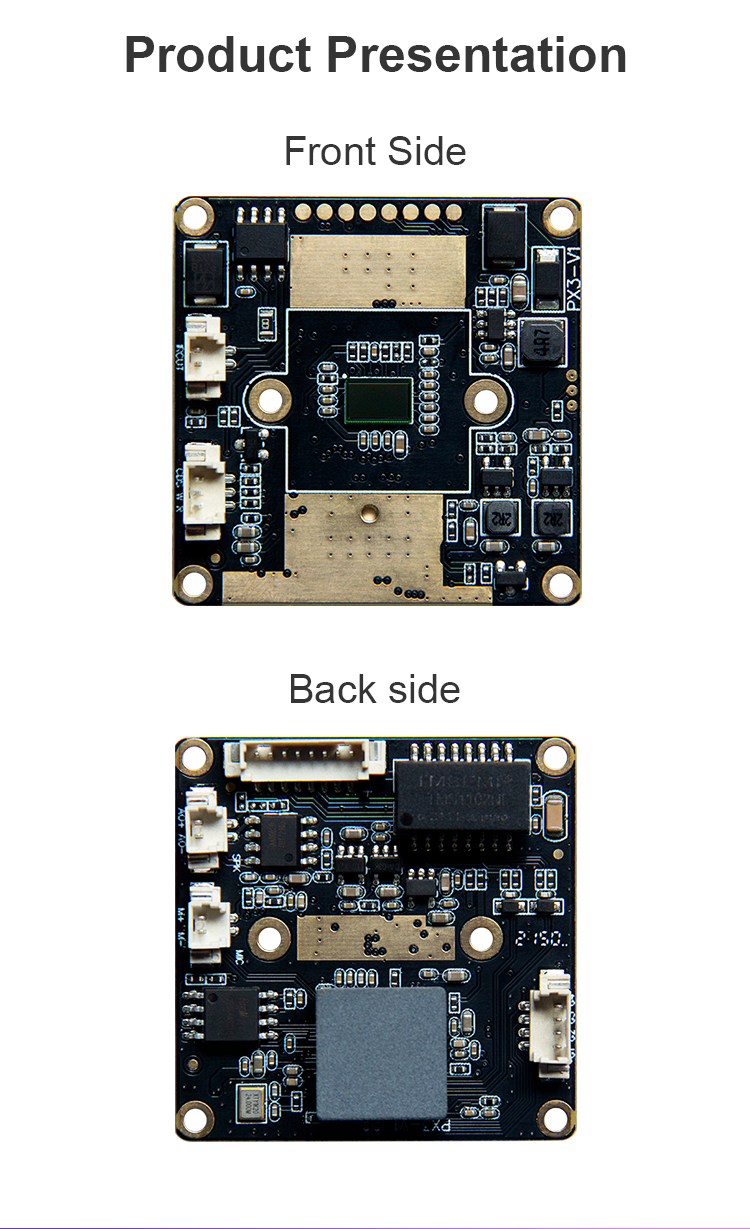

200803-4MP-IPC-Board-Black-Light-IP-Camera-Module-CCTV-PCB-Board-Directly-Sales-Full-Color-Low-LUX-3.png

200803-4MP-IPC-Board-Black-Light-IP-Camera-Module-CCTV-PCB-Board-Directly-Sales-Full-Color-Low-LUX-5.png

Model No.	H4H
Module	Fullhan 2K DSP+1/2.9"4MP CMOS
LUX	COLOR 0.01Lux@F1.2; B/W 0.001Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Audio Input	1CH MIC Input
Audio Output	1CH Output, Speaker Optional
Light Type	CDS IR LED, Warm LED, White LED (Support PWM)
IO port	IR CUT, 1CH RESET, Alarm In, Alarm Out
Others	Extra Motorized Zoom Auto Focus Lens Optional
Coding Format	H.265/H.264
Main Stream	2560*1440 , 1-30FPS/S
Main Stream	23041296、19201080、1280*720, 1-30FPS/S
Sub Stream	704576、800448、640480、640360、352*288，1-30FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name, Date & Time, Resolution & 4 lines characters adding
Data Record	Video,picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	ONVIF
Mobile	Support IOS, Android
Browser	Support IE6.0 and above browser(insert Web Server)
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V /110mA
power	1.3W
size	38* 38*10mm (without lens)
Weight	11g
