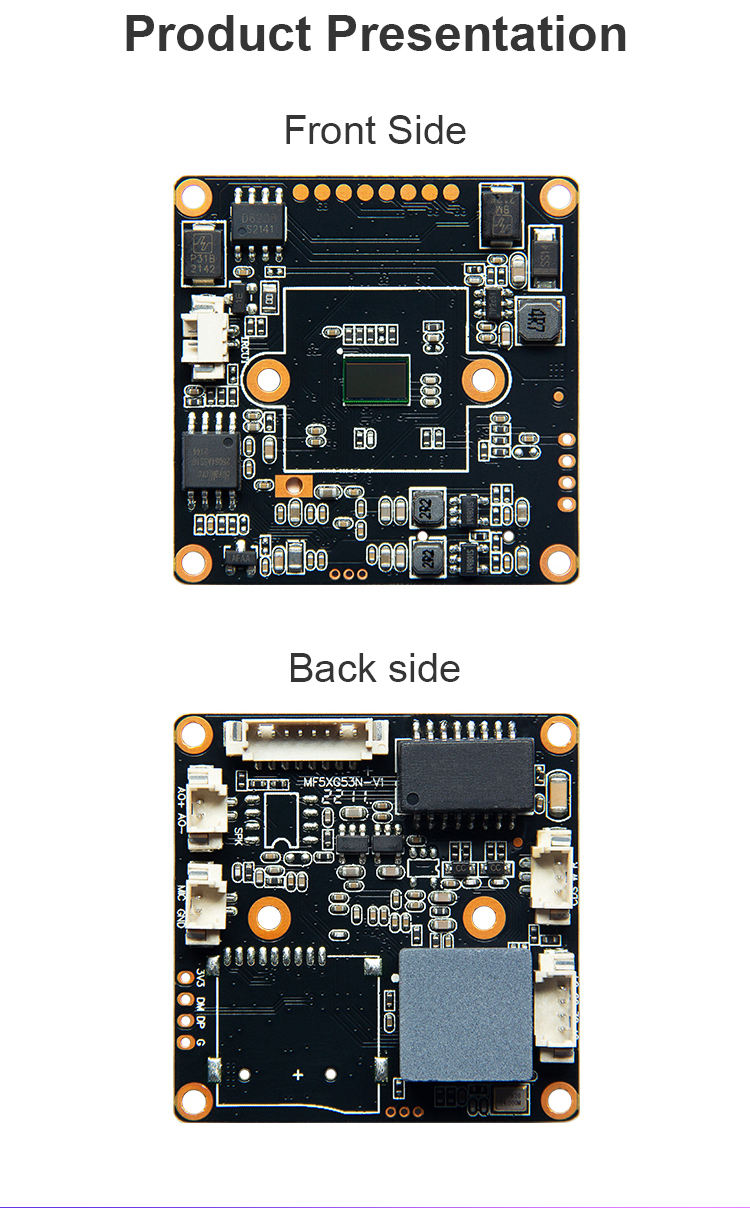

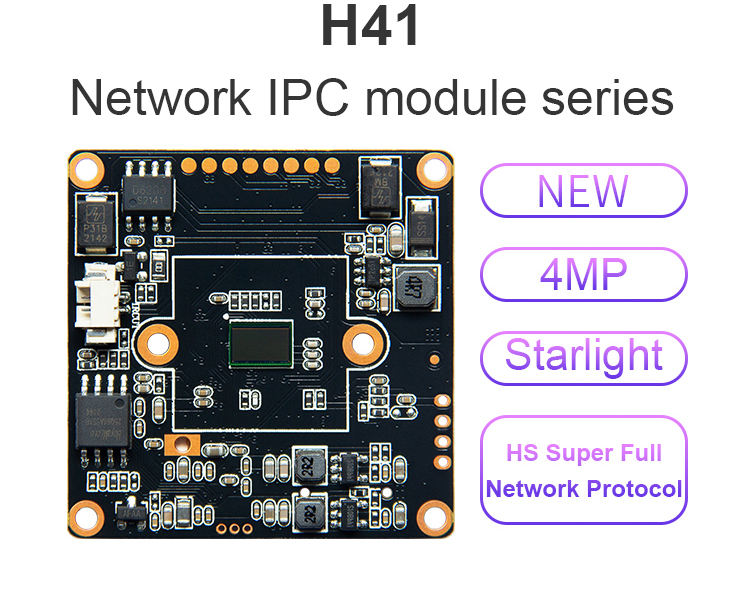

4MP IP Camera PCB Board H41 H42 Camera Module Human Recognition Full Netcom Protocol HD Indoor Outdoor Security Camera

Product category:

Camera Board

SKU:

200768

Price:

$6.20

Quantity	Price
1 - 999	$6.20
1000 - Unlimited	$5.70

Description

Model No.	H41

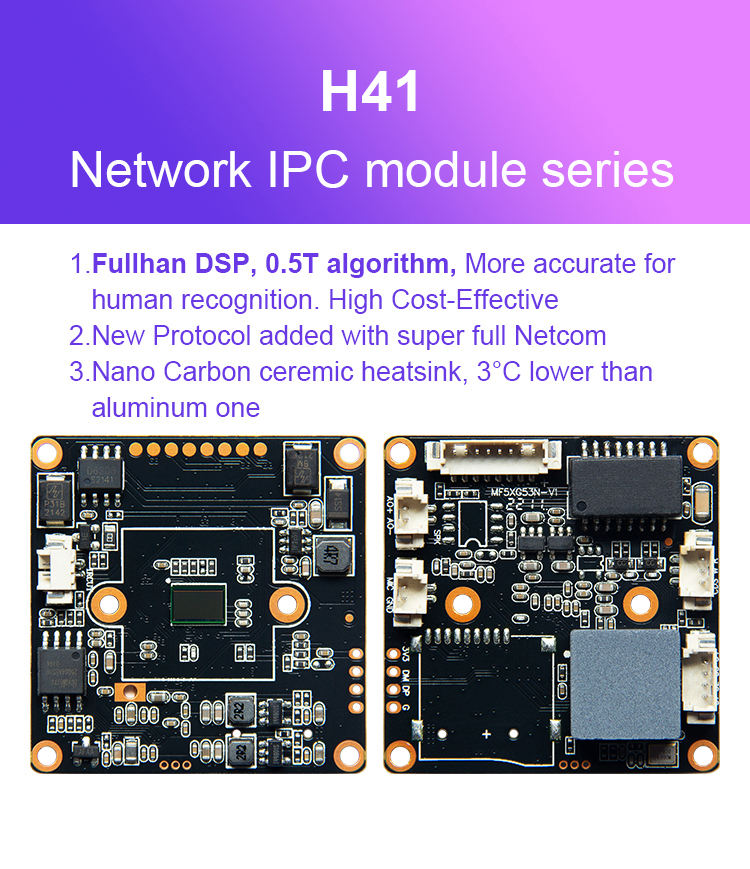

Module	Fullhan 2K DSP+ 1/2.9" 4MP CMOS
LUX	Color 0.05Lux@F1.2;B/W 0.05Lux@F1.2
S/N	≥50db(AGC OFF)
WDR	DWDR;＞80db
Audio Input	1CH MIC Input
Audio Output	Audio cable output ,with expandable built-in power amplifier circuit
LED Board Function	LED Board Driving Circuit, Dual Light PWM

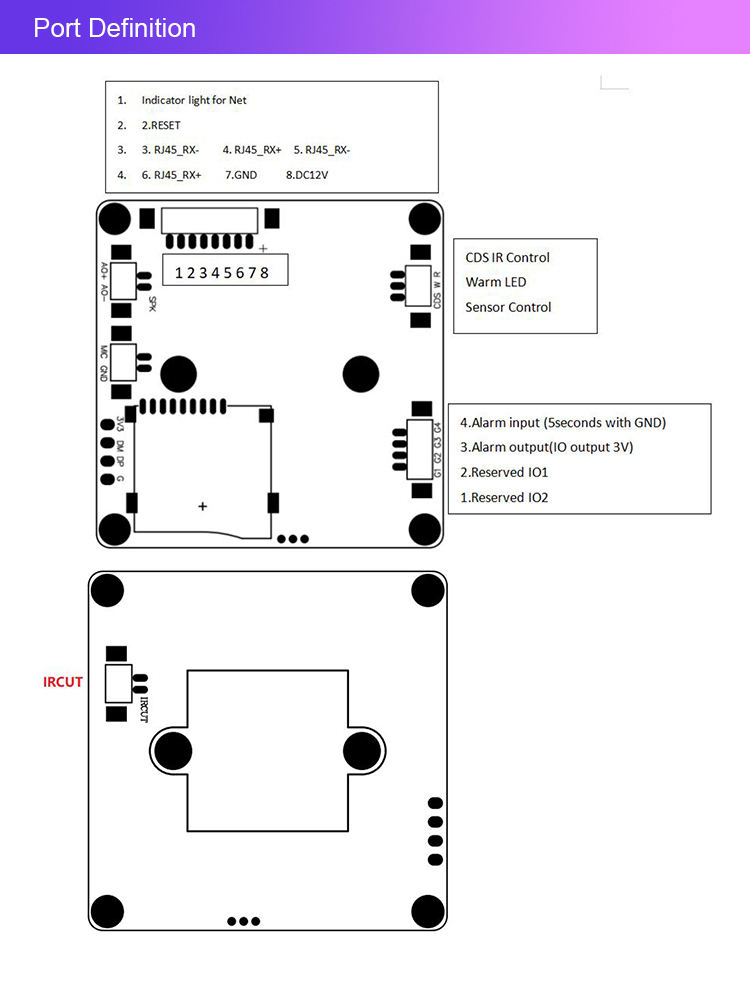

IO port	RESET, IR CUT, Alarm Input/Output
Others	Support AF Motorized Lens
Coding Format	H.265、H.264
Main Steam	2560*1440,1-25 FPS/S
Main Steam		23041296、19201080、1280*720,1-30 FPS/S
Sub steam	704576 、640480 、640360 、352288 ,1-30 FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name 、Date & Time 、Frame 、Resolution 、4 lines of character overlay
Data Record	Video, picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	NETCOM / ONVIF
Browser	Support IE6.0 and above browser(insert Web Server)
Mobile	Support iPhone 、iPad 、Android
Temperature	-30C - +60C
Humidity	0% - 90%
Power	Built in POE/ DC12V- 110mA
power	1.3W
size	38* 38*10mm
Weight	11g
