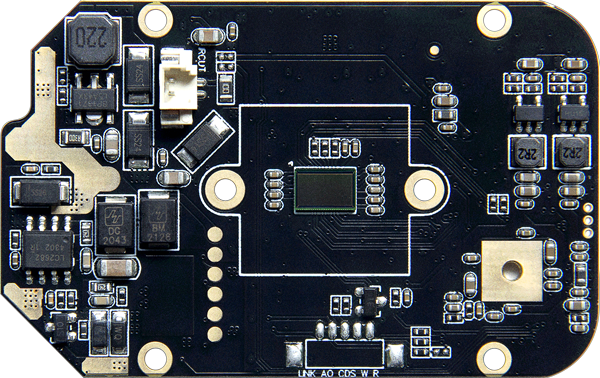

4MP IP Camera Module Built-in POE Board Security Camera PCB CCTV Network Camera Nano Carbon Ceramic Heatsink

Product category:

Camera Board

SKU:

200766

Price:

$6.20

Quantity	Price
1 - 999	$6.20
1000 - Unlimited	$5.70

Description

Model No.	H42P
Module	Fullhan 2K DSP+1/3" 4MP CMOS
LUX	Color 0.05Lux@F1.2;B/W 0.01Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Audio Input	1CH MIC Input
Audio Output	Audio cable output ,with expandable built-in power amplifier circuit
LED Board Function	LED Board Driving Circuit, Dual Light PWM
IO port	RESET,IR CUT, Alarm Input/Output
Others	Bulit-in POE, Support Standard POE Protocol
Coding Format	H.265/H.264
Main Steam	25601440，1-30 FPS/S; 23041296、19201080、1280720，1-30 FPS/S
Sub steam	704576、800448、640480、640360、352*288，1-30FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name、Date & Time、Frame、Resolution、4 lines of character overlay
Data Record	Video, picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	NETCOM / ONVIF
Mobile	Support IOS, Android
Browser	Support IE6.0 and above browser(insert Web Server)
Mobile Client	Support iPhone、iPad、Android
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	Built in POE/ DC12V-110mA
power	1.3W
size	60* 38*10mm
Weight	15g
