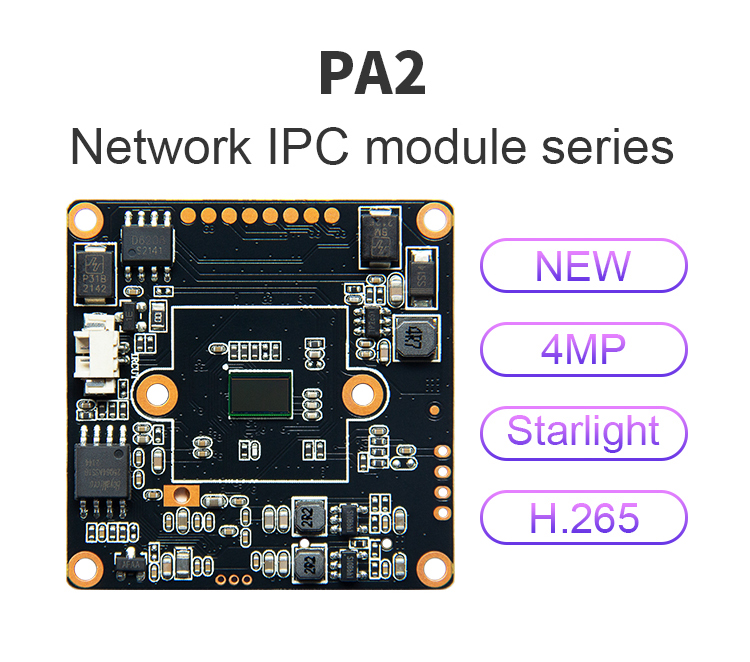

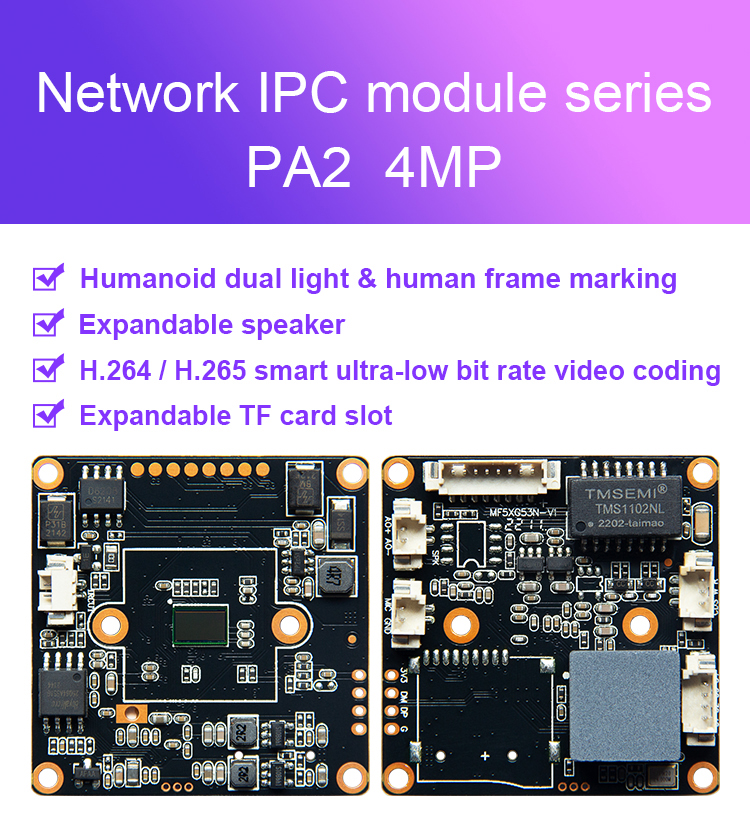

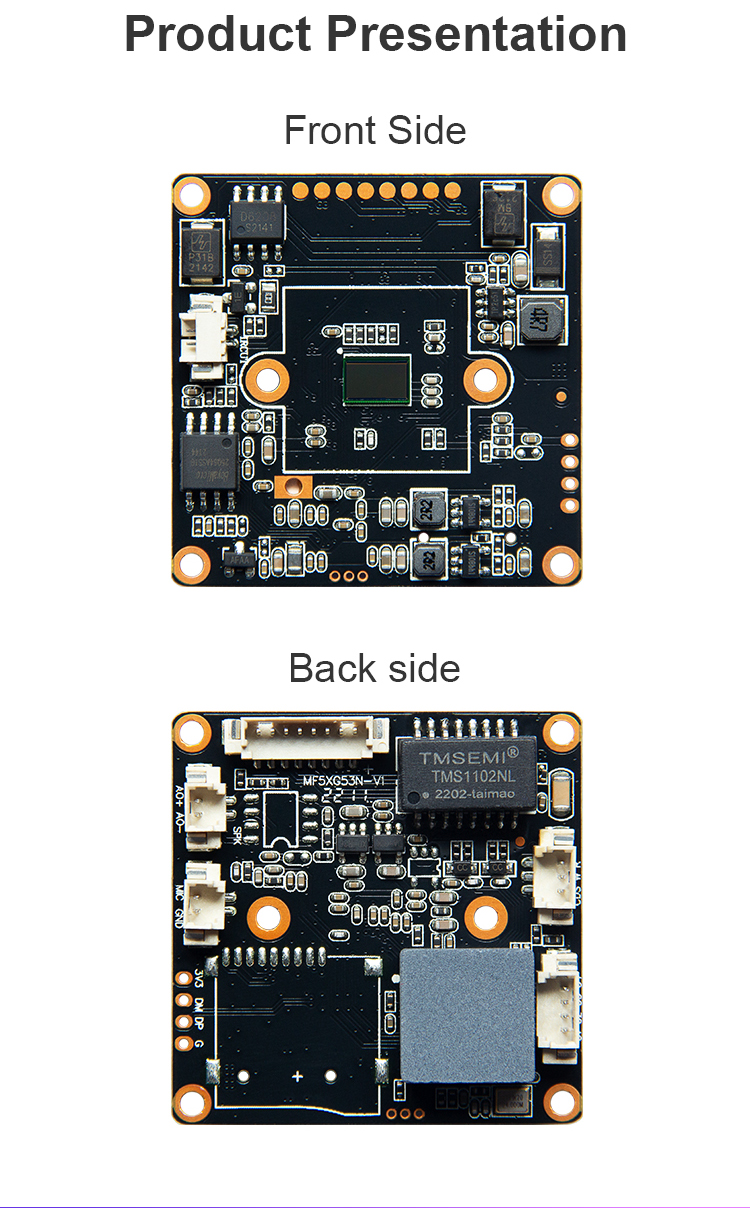

4MP H.265 Fullhan DSP with Excellent Image Quality Starlight IP Camera Module Support Full Color

Product category:

Camera Board

SKU:

200976

Price:

$8.20

Quantity	Price
1 - 999	$8.20
1000 - Unlimited	$7.70

Description

Model No.	PA2
Module	Fullhan 2K DSP+1/2.9" 4MP CMOS
LUX	COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Audio Input	1CH MIC Input
Audio Output	1CH MIC output, Speaker Optional
LED Type	CDS IR LED, Warm LED, White LED (Support PWM)

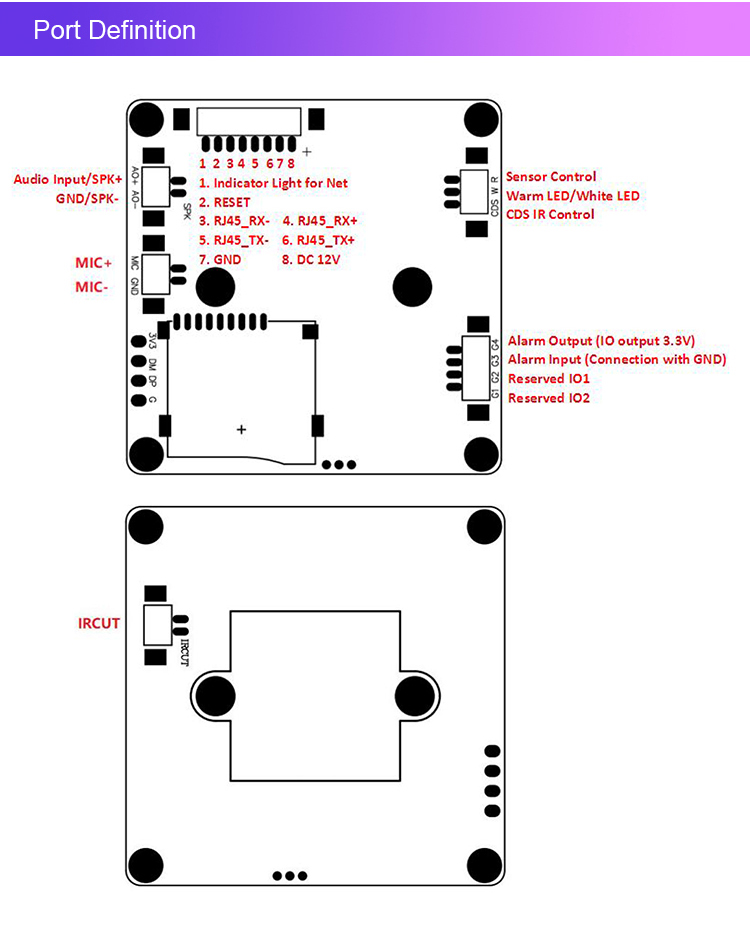

IO port	1CH RESET, IR CUT, Alarm Input/Output
Coding Format	H.265/H.264
Main Steam	25601440，1-30FPS/S 23041296、19201080、1280720，1-30 FPS/S
Sub steam	704576、800448、640480、640360、352*288，1-30FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name、Date & Time、Frame、Resolution、4 lines of character overlay
Data Record	Video, picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	NETCOM / ONVIF 2.6
Mobile	Support IOS, Android
Browser	Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX)
Mobile Client	Support iPhone、iPad、Android
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V-110mA
power	1.3W
size	38* 38*10mm (without lens)
Weight	10g
