4K 8MP HD IP Camera Module CCTV IP Camera Module Customized USB Camera Module

Quantity	Price
2 - 999	$9.20
1000 - Unlimited	$8.70

SKU:

200797

Product category:

full product footer

Description

Model No.	PB1
Module	FH8856V100+1/3" GC8053
LUX	COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Audio Input	1CH MIC Input
Audio Output	1CH Output, Speaker Optional

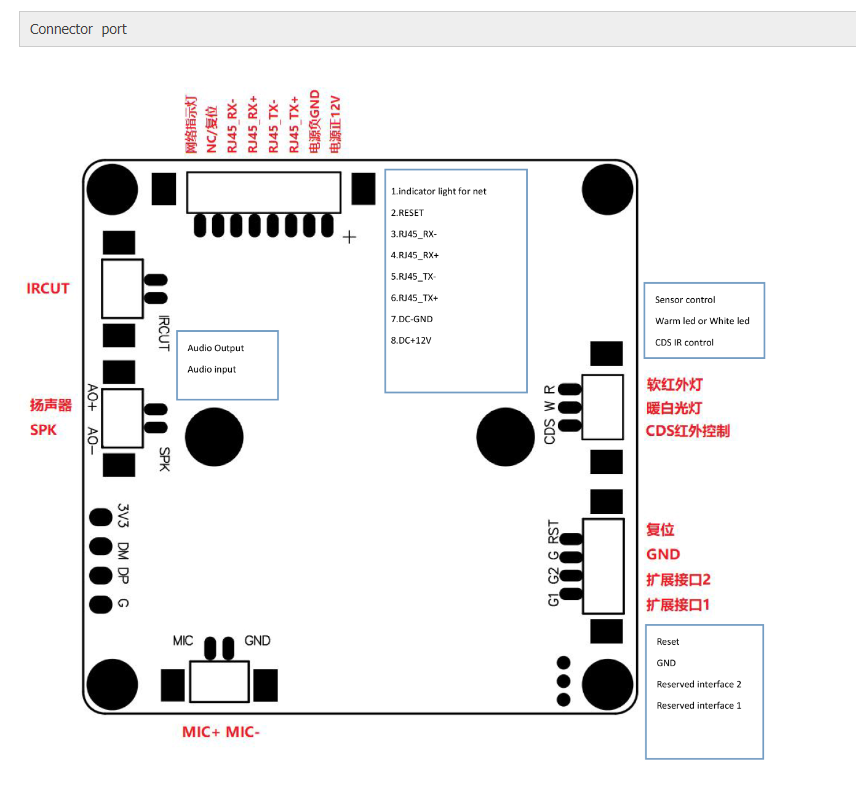

IO port	1CH RESET
SD card	Not support now
WIFI	NO
Main Steam	38402160 , 5-15FPS/S; 25921944 , 5-20FPS/S
Main Steam	Main Steam	25601440、23041296、19201080、1280720, 5-25 FPS/S
Sub steam	704576、640480、640360、352288, 5-25FPS/S
Sub steam	Sub steam	25601440、23041296、19201080、1280720, 5-25 FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Image Adjustment	Brightness, contrast, saturation, sharpness
Subtitle Overlay	Support Channel Name、Date & Time .5 groups of characters superposition adjustable
Data Record	Video,picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	All Net Connect / ONVIF 2.6
Mobile	Support IOS, Android
Browser	Support IE6.0 and above browser Client Browser
Temperature	-20℃ - +60℃
Humidity	0% - 90%
Power	DC12V /POE
power	1.5W
size	38* 38*10mm (without lens)
Weight	0.06kg

Shipping

Quantity:

Ship to:

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.
