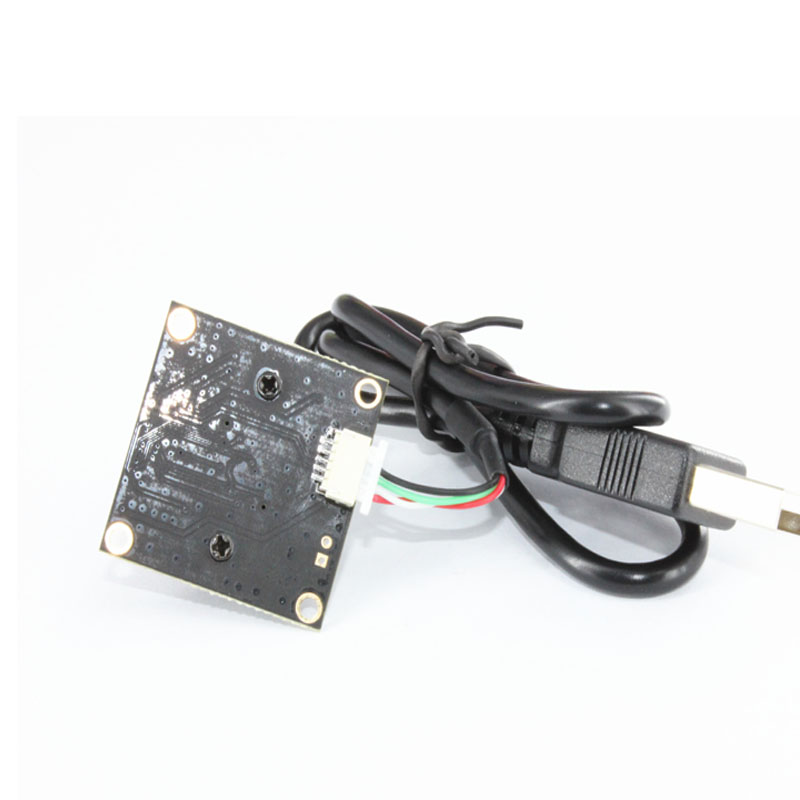

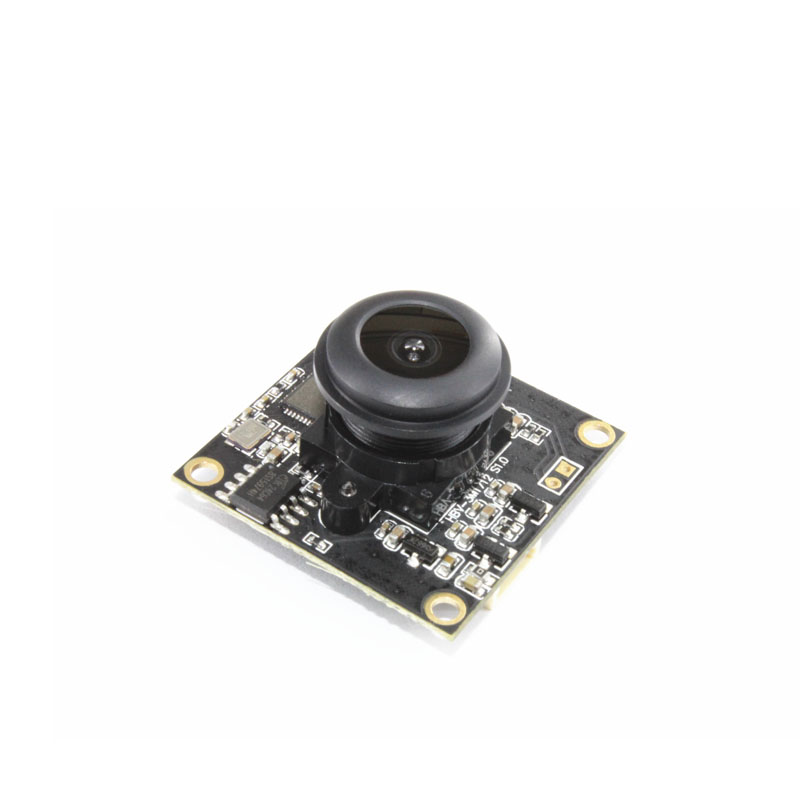

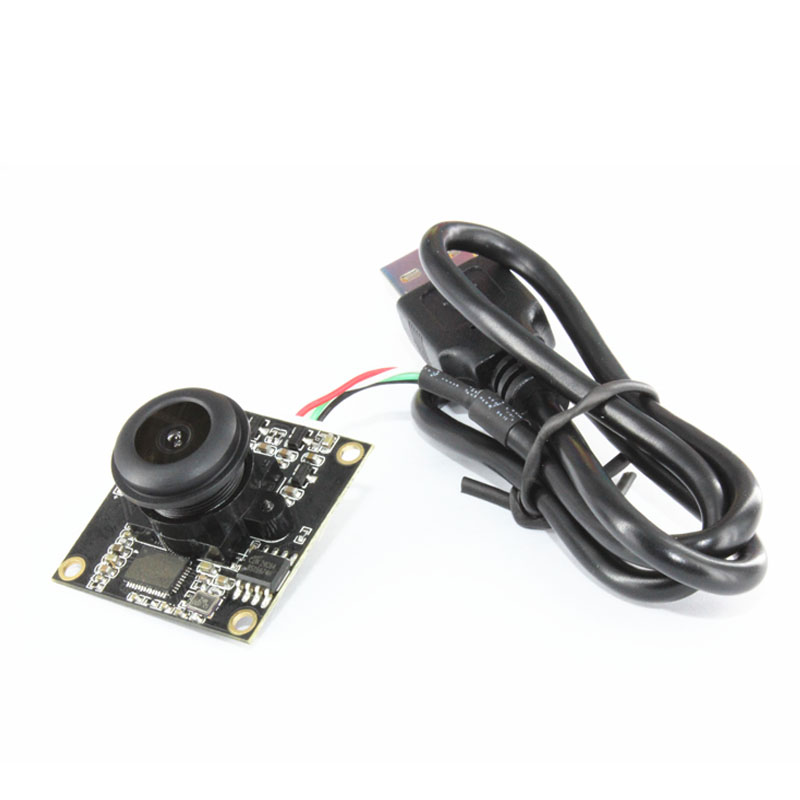

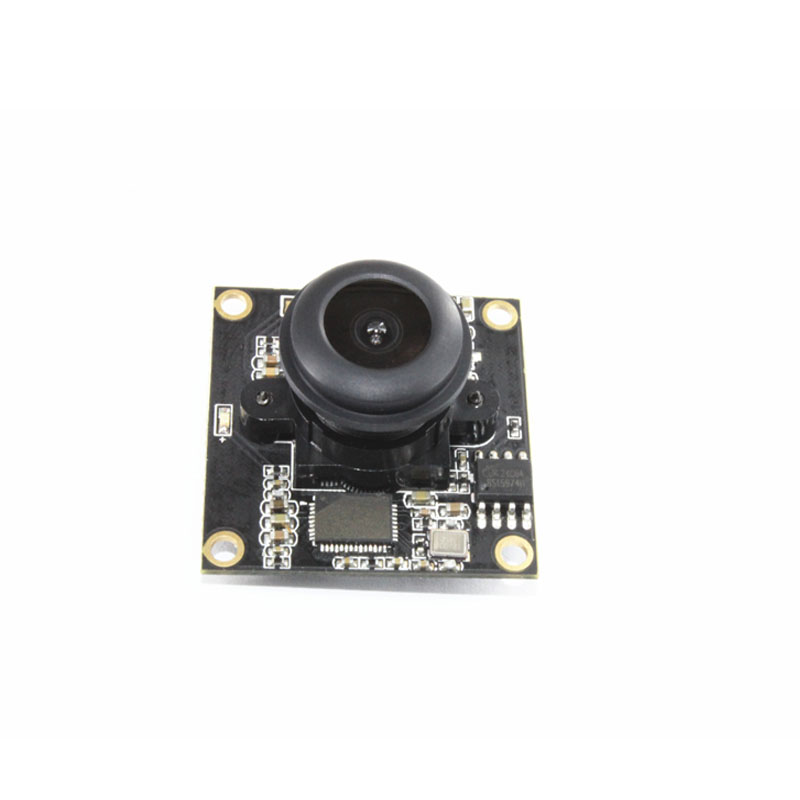

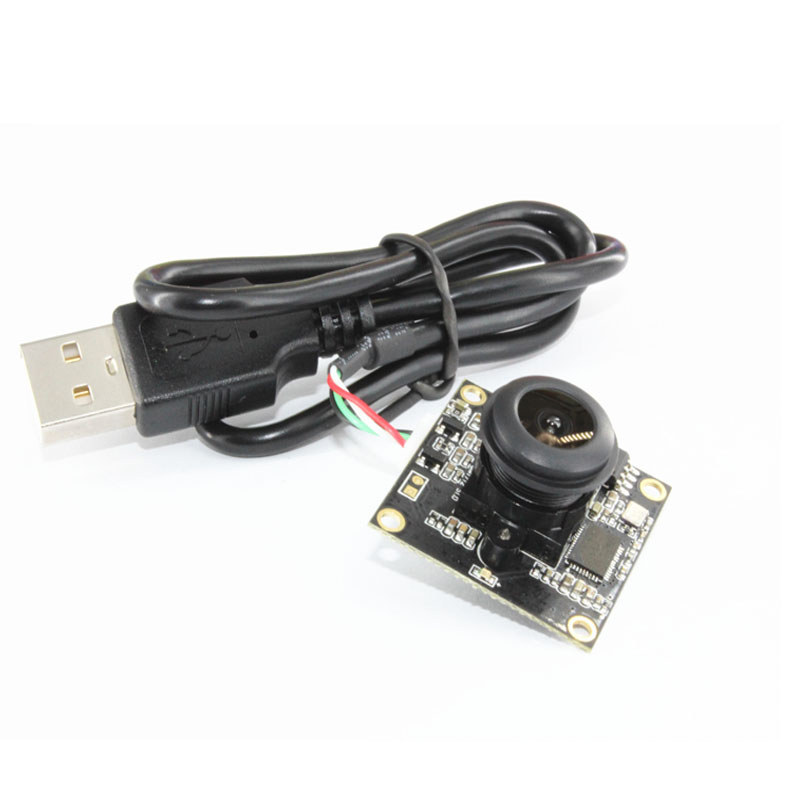

3MP OV3660 USB2.0 Camera module with 2048*1536 15fps resolution

Product category:

USB Camera Board

SKU:

216838

Price:

$14.40

Description

3MP OV3660 USB2.0 Camera module with 2048*1536 15fps resolution

Model No.	BM3M1712 S1.0
Model Size	28mm × 28mm × 14mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	600W
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV3660 (1/5" )
Seneor Package	CSP,Bare Die
Maximum resolution	2048*1536
Sensitivity	670mV /(lux-sec)
Pixel Size	1.4μm x 1.4μm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 7FPS / YUY2 1280X720 7FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS
S/N Ratio	34B
Max Dynamic Range	70B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4E+IR
F/No	2.4
EFL	1.85m
FOV	90°
TV Distortion	<7.6%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	40CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please dont make an order for it. Thank you for your understanding
