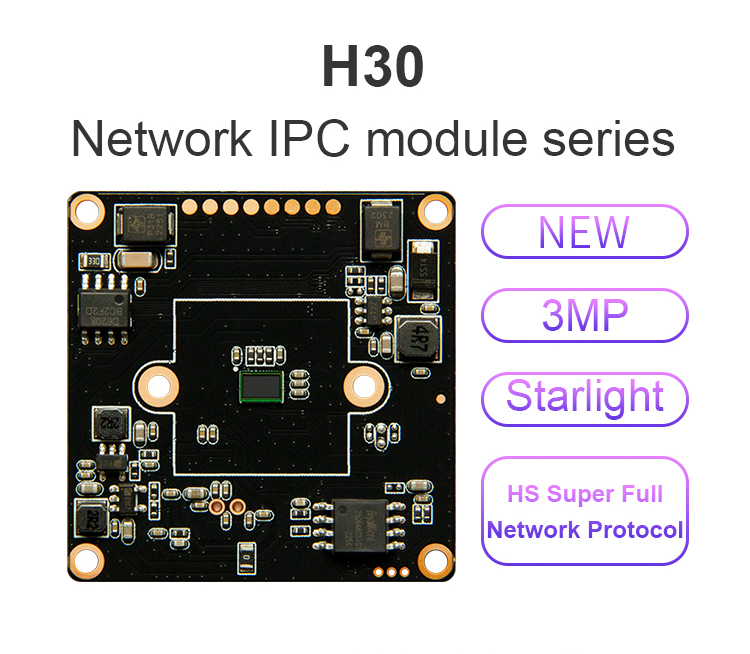

3MP IP Camera module Fullhan DSP ultra low light human body detection warm light camera board factory price

Product category:

Camera Board

SKU:

200955

Price:

$4.50

Description

Model No.	H30
Module	Fullhan 1.5K DSP+1/3"3MP CMOS
LUX	Color 0.1Lux@F1.2; Black & White 0.01Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR；＞80db
Audio Input	Audio MIC Input
Audio Output	1CH Output, Speaker Optional
Light Type	CDS IR LED, Warm LED, White LED (Support PWM)

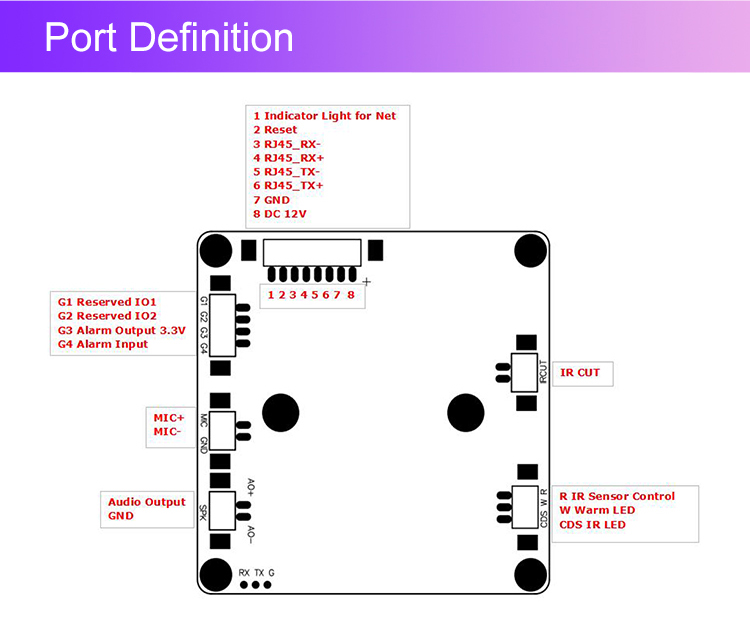

IO Function	IR CUT, 1CH RESET, Alarm In, Alarm Out
Others	Extra Motorized Zoom Auto Focus Lens Optional
Coding Format	Smart H.264
Mainstream	2304*1296
Mainstream		19201080、1280720
Substream	704576、800448、640480、640360、352*288
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name, Date & Time, Resolution & 4 lines characters adding
Data Record	Video,picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	ONVIF
Browser	Support IE6.0 and above browser(insert Web Server)
Mobile	Support IOS、Android Platform
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V /90mA
