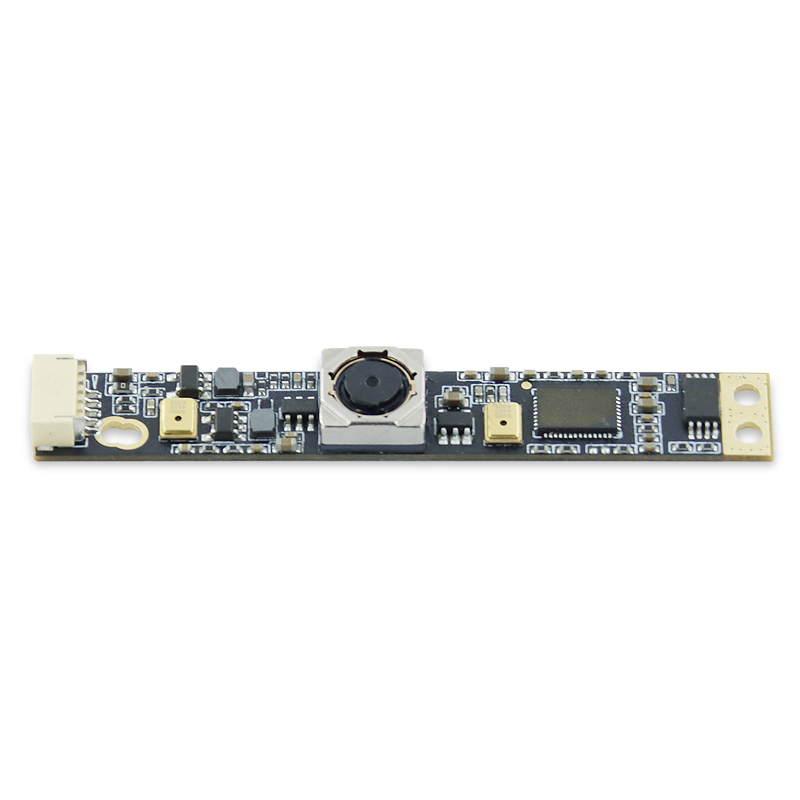

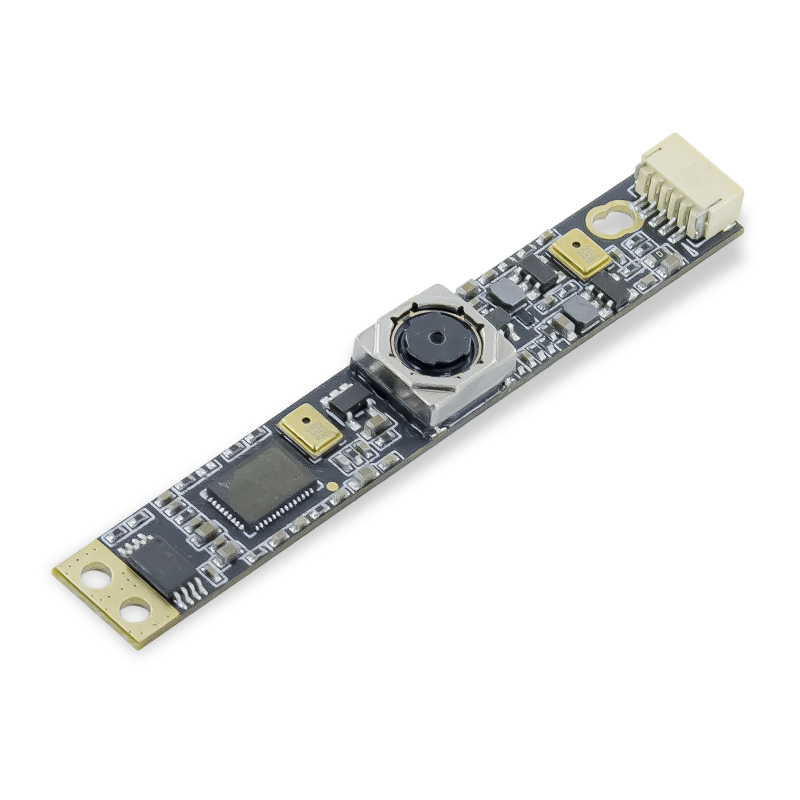

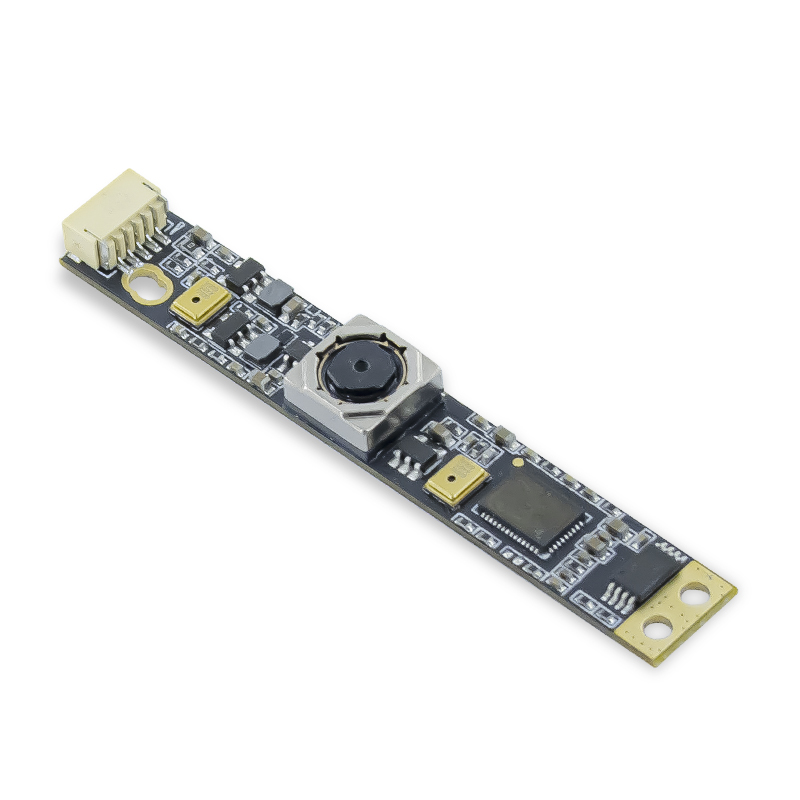

2MP USB Laptop Camera Module Auto Focus Face Recognition with Microphone

Product category:

USB Camera Board

SKU:

216560

Price:

$13.20

Quantity	Price
1 - 999	$13.20
1000 - Unlimited	$10.35

Description

Product Name	2MP Autofocus Laptop Camera Module
Module No	BMF2216HD-AF V22-83

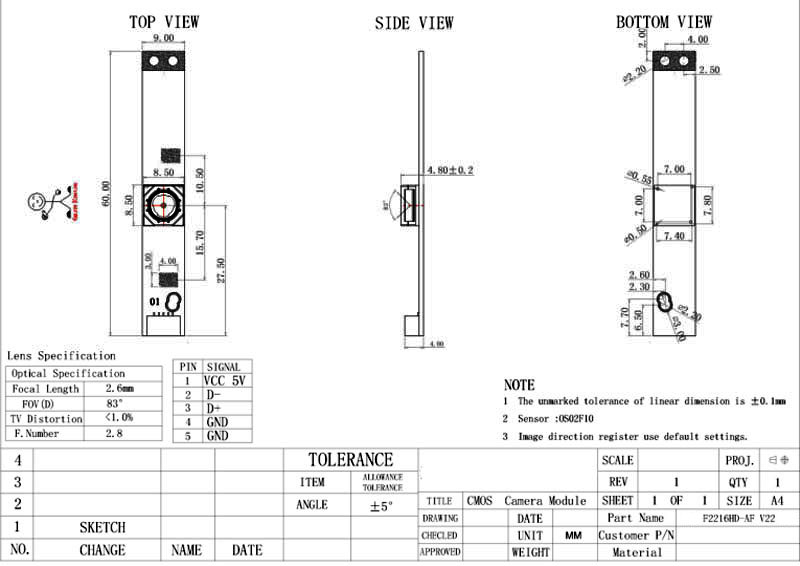

Module Size	60mm × 9mm × 4.8mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	570mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OS02F10 (1/4" )
Seneor Package	COB,Bare Die
Maximum resolution	1920*1080
Sensitivity	10470e /（lux-sec）
Pixel Size	2µm x 2µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	38.1 db
Max Dynamic Range	72.9 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4P
F/No	2.8
EFL	2.6mm

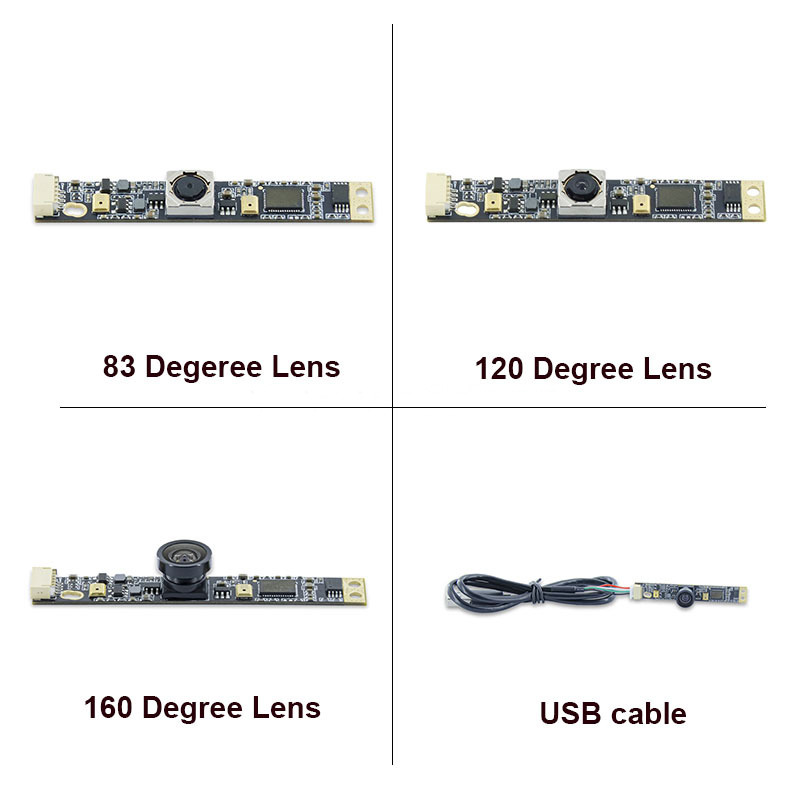

FOV	83°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
