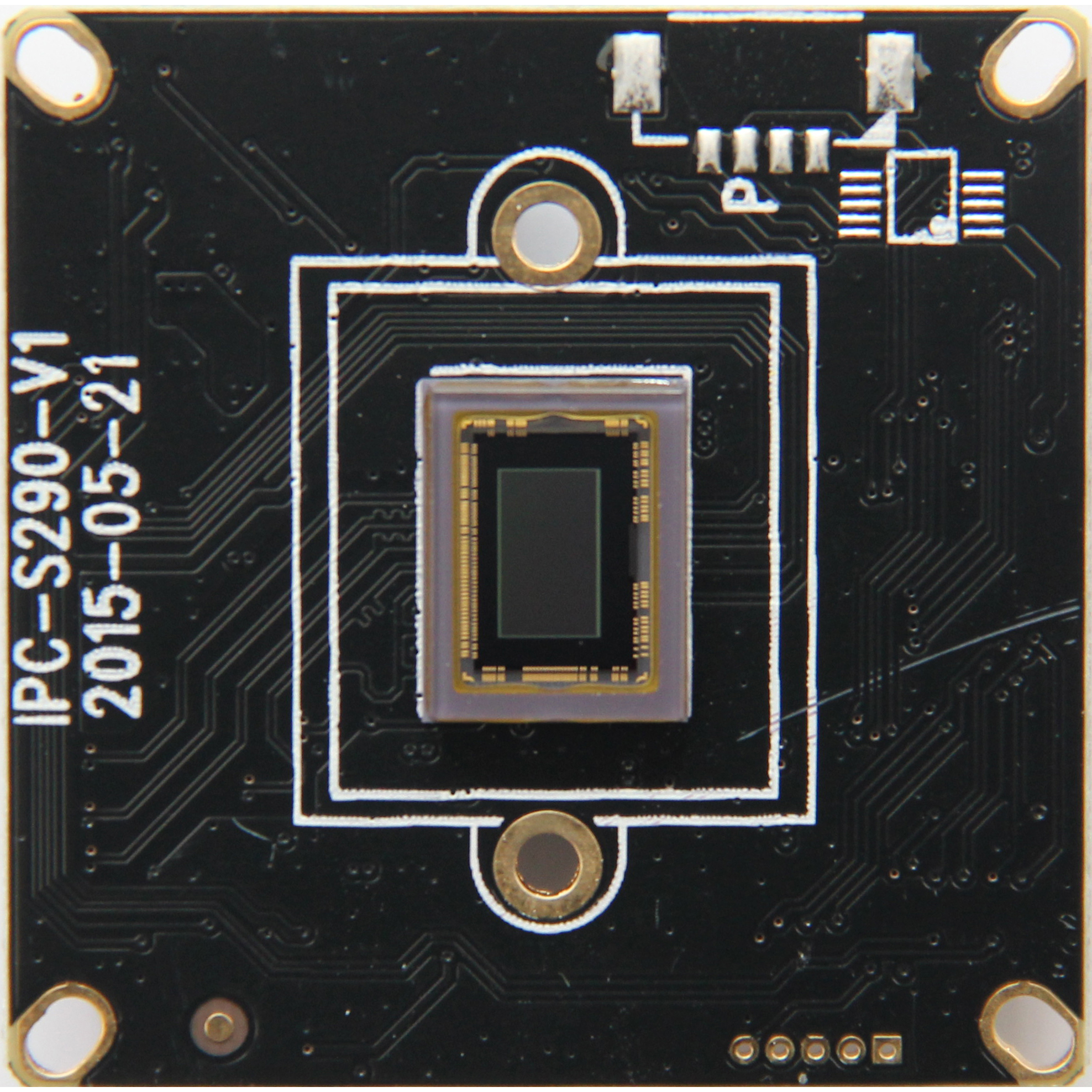

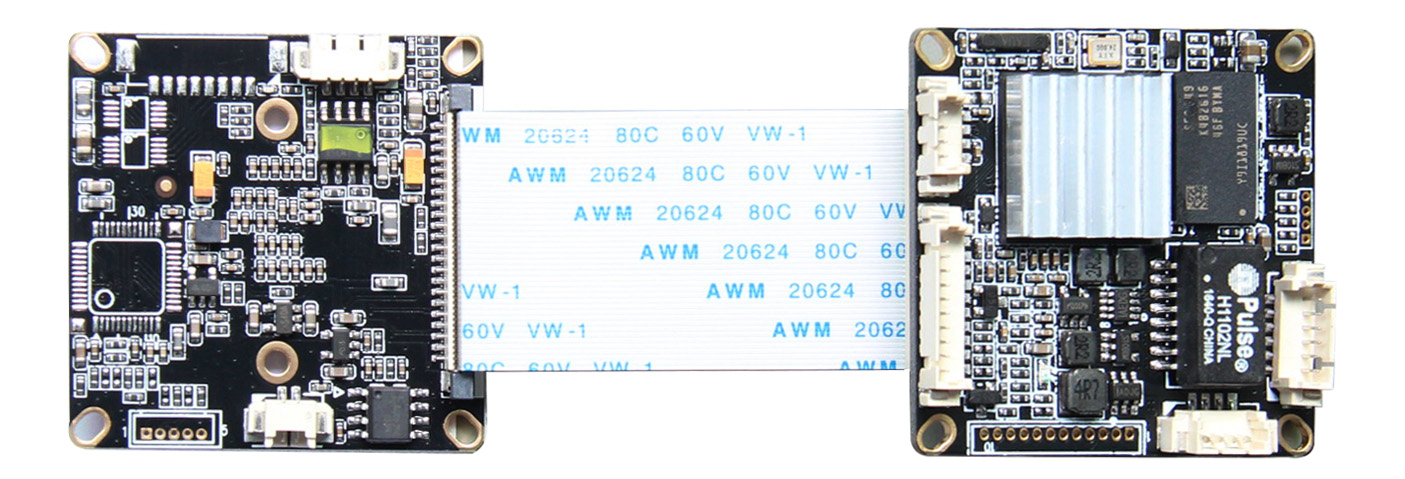

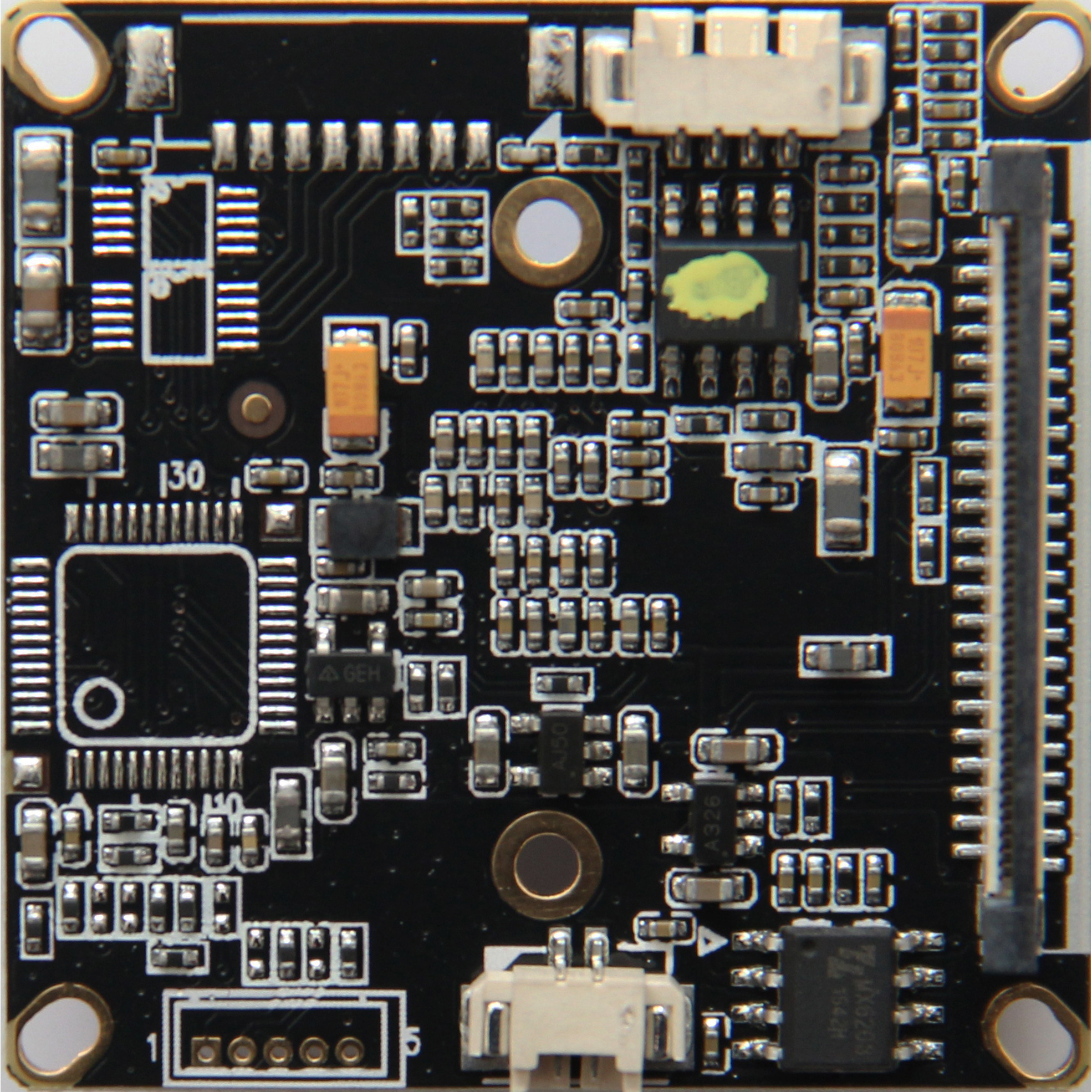

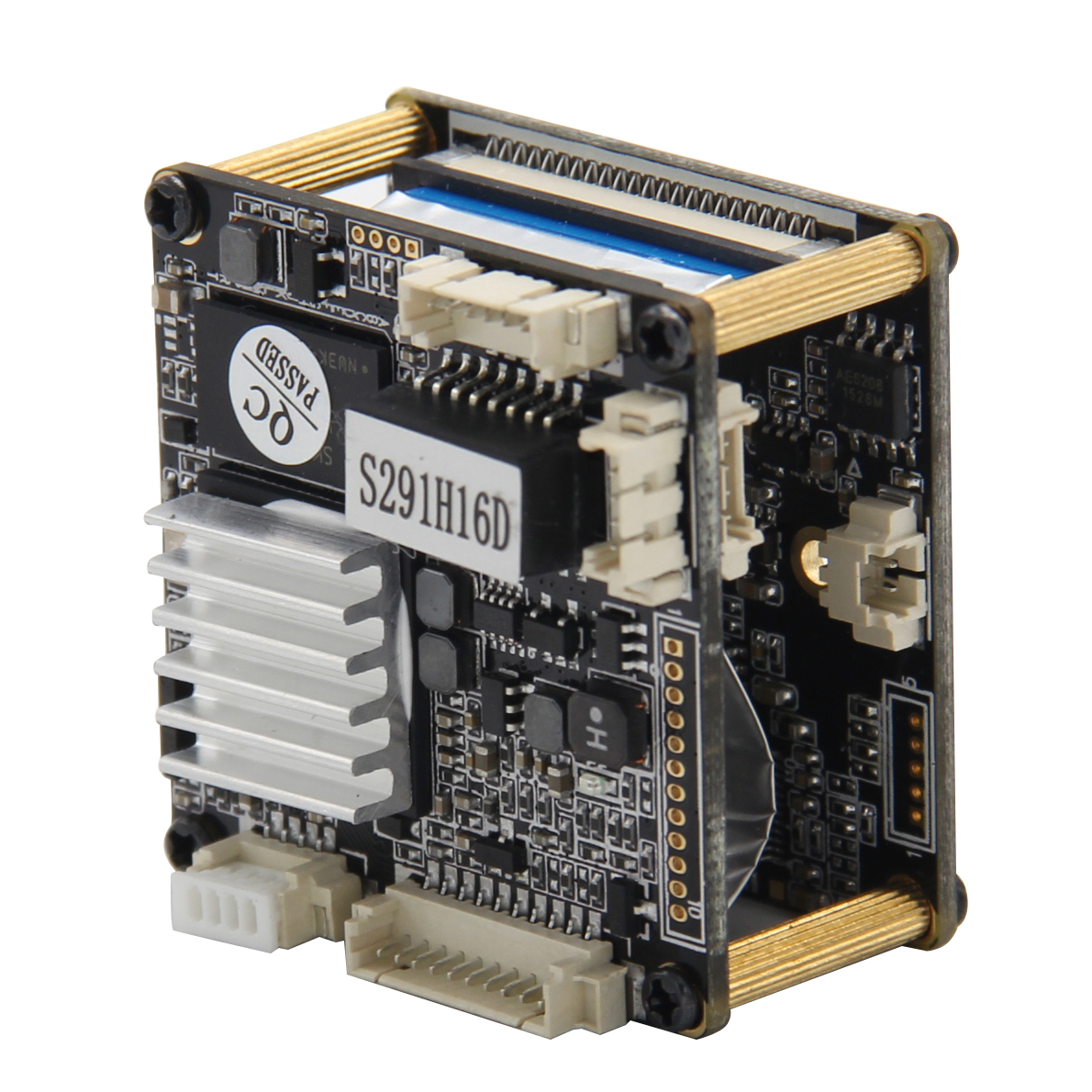

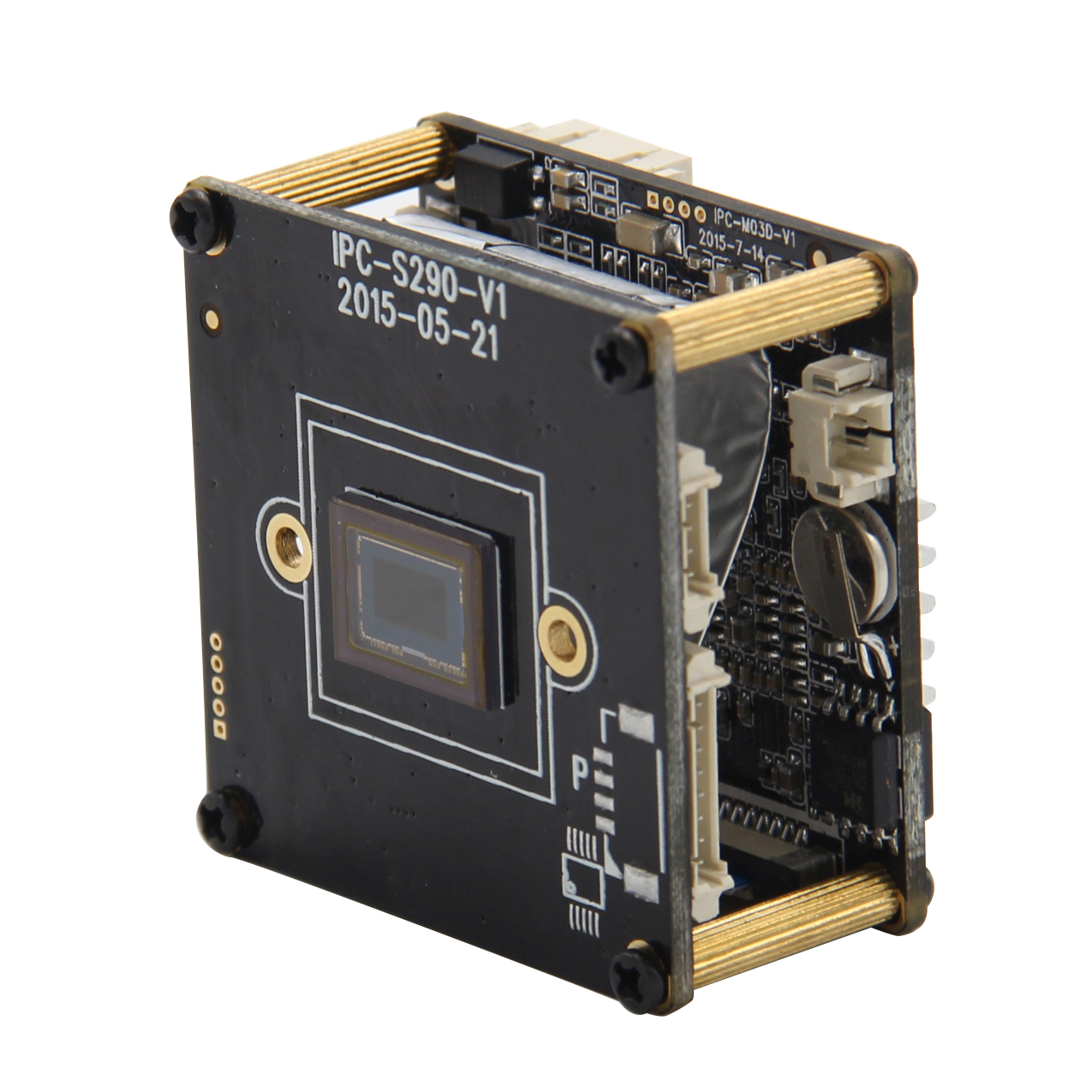

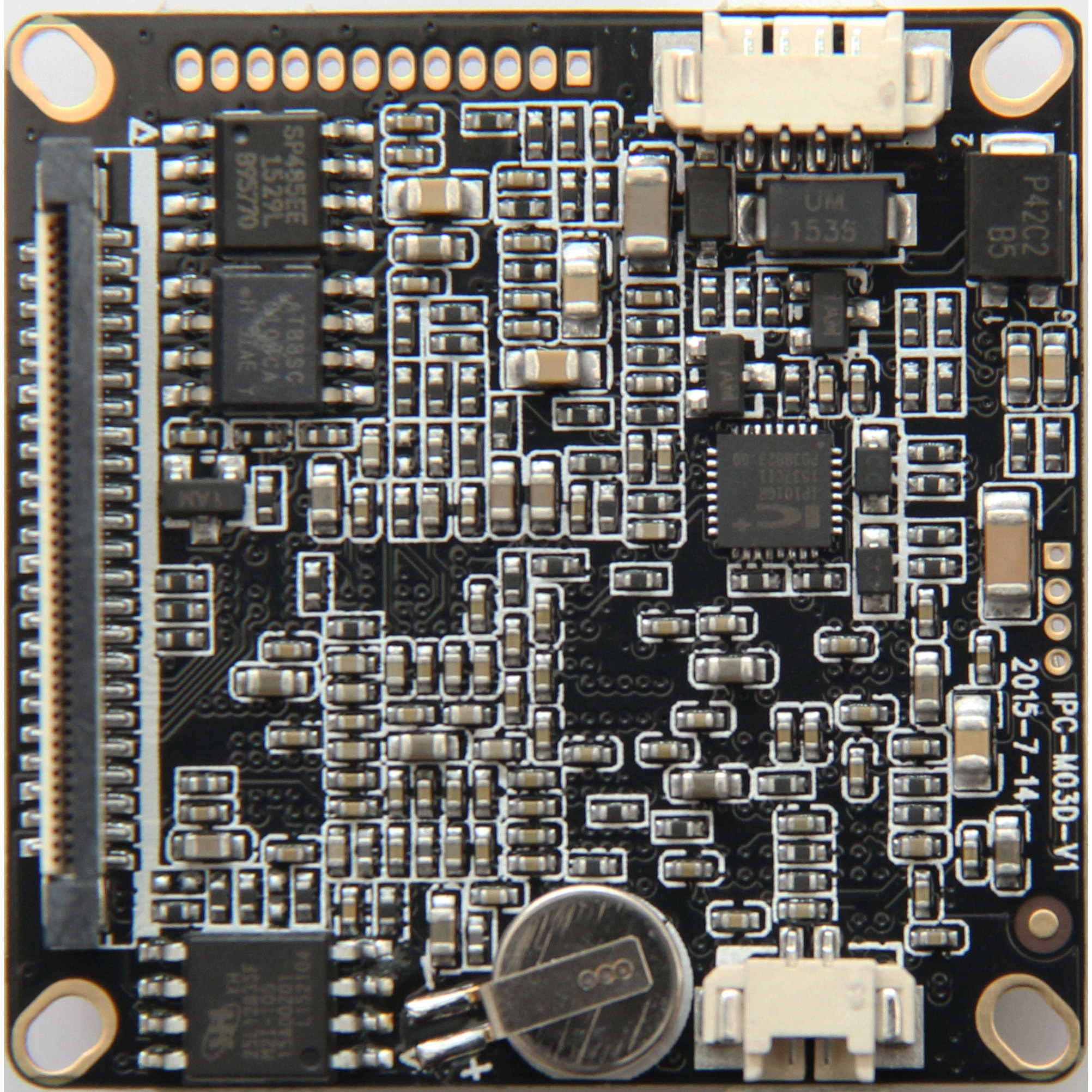

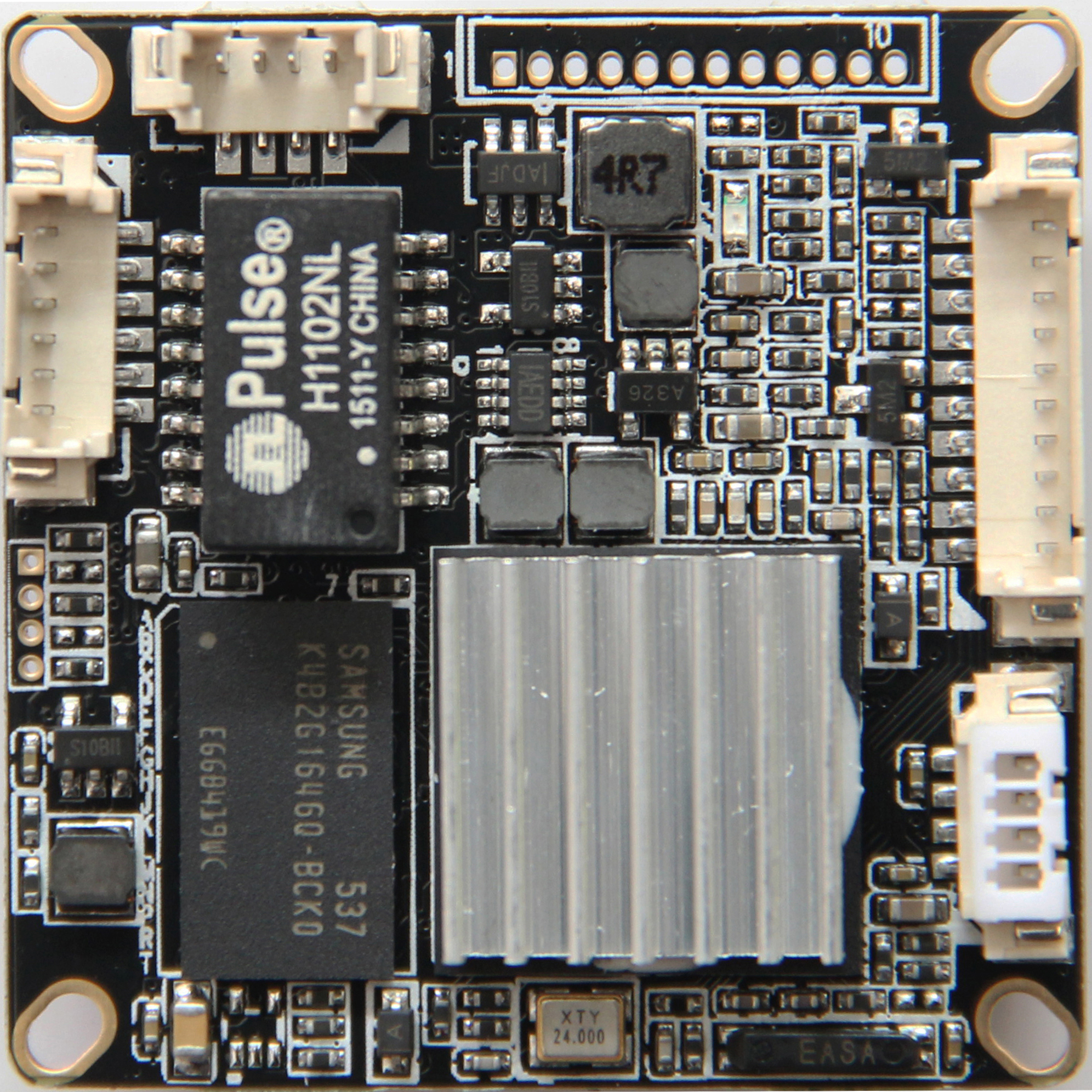

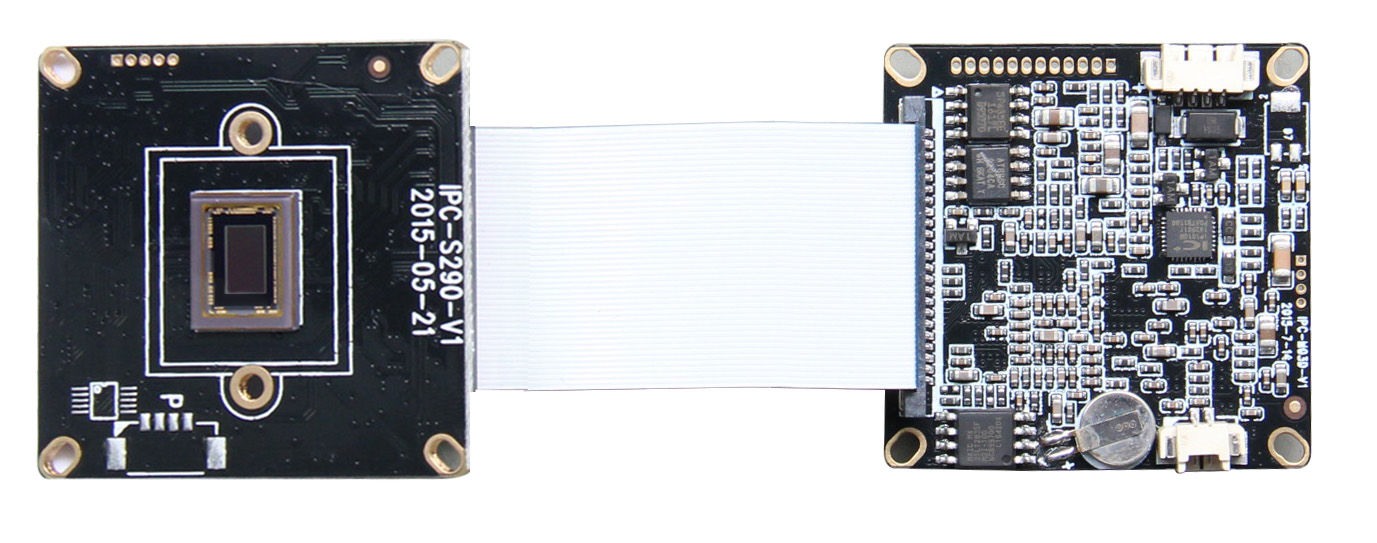

2MP Starlight IP Camera 1/2.8" 2MP IMX290 Sensor+Hisilicon 3516D DSP H.264 Camera Module Board

Quantity	Price
1 - 499	$41.00
500 - Unlimited	$40.00

SKU:

200862

Product category:

Camera Board

IP Camera Board

full product footer

Description

Product Description

Specification

Model No.	IPC-S290-V1（2MP）
Hardware
Module	Hi3516D，1/2.8” SONY 290 COMS snesor
LUX	Color 0.001Lux@F1.2
S/N	≥50dB(AGC OFF)
WDR	WDR ；＞120db
Port
Audio/Intercom Input	1CH MIC Input/linear input
Audio Output	1CH output
IO port	1CH RESET
CVBS Output	Support 1CH CVBS output
I/O input/output	Suppot 1CH alarm input,1CH alarm output
IO function port	1CH reset(optional: reset、alarm input、alarm output)
RS485	Support one RS485 port
USB port	Support 1 USB port,support a 64G USB,support WIFI
Video Coding
Coding Format	H264，Baseline/Main Profile/High Profile Coding；H.265 Main Profile Coding, MJPEG
Main Steam	1920*1080，1-25(30)FPS
Main Steam	1280*720，1-25(30)FPS
Sub steam	704576，1-25(30)FPS 640480，1-25(30)FPS
Sub steam	640352，1-25(30)FPS 320240，1-25(30)FPS
Video Coding Compression	32Kbps-16Mbps continuous adjustable，support CBR/VBRs-1
Subtitle Overlay	Support channel name、Date、Code stream information overlay,Overlay place adjustable
Data Transmission &Storage
Data Record	Video,picture
Storage Method	Manual、auto(cycle、fixed time、alarm switch、motion detection)
Alarm Transfer	FTP、E-mail, browse, management software
Protocol	TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
Browser	Support IE6.0 and above browser Client Browser
Supply power	DC12V 1A/POE（ External POE module ）
power	3W(MAX)
Size	38(L) * 38(W) *20(H)mm(without lens )
IR-CUT hole	22mm
weight	0.15kg
