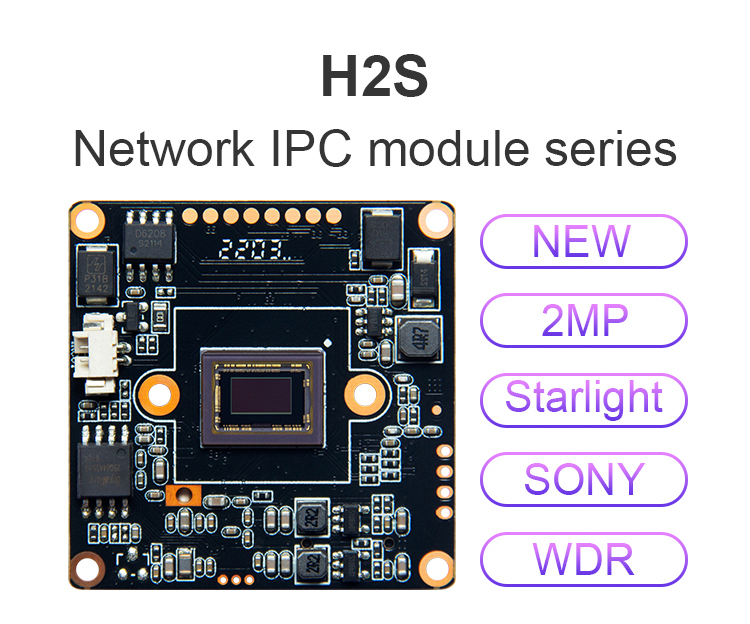

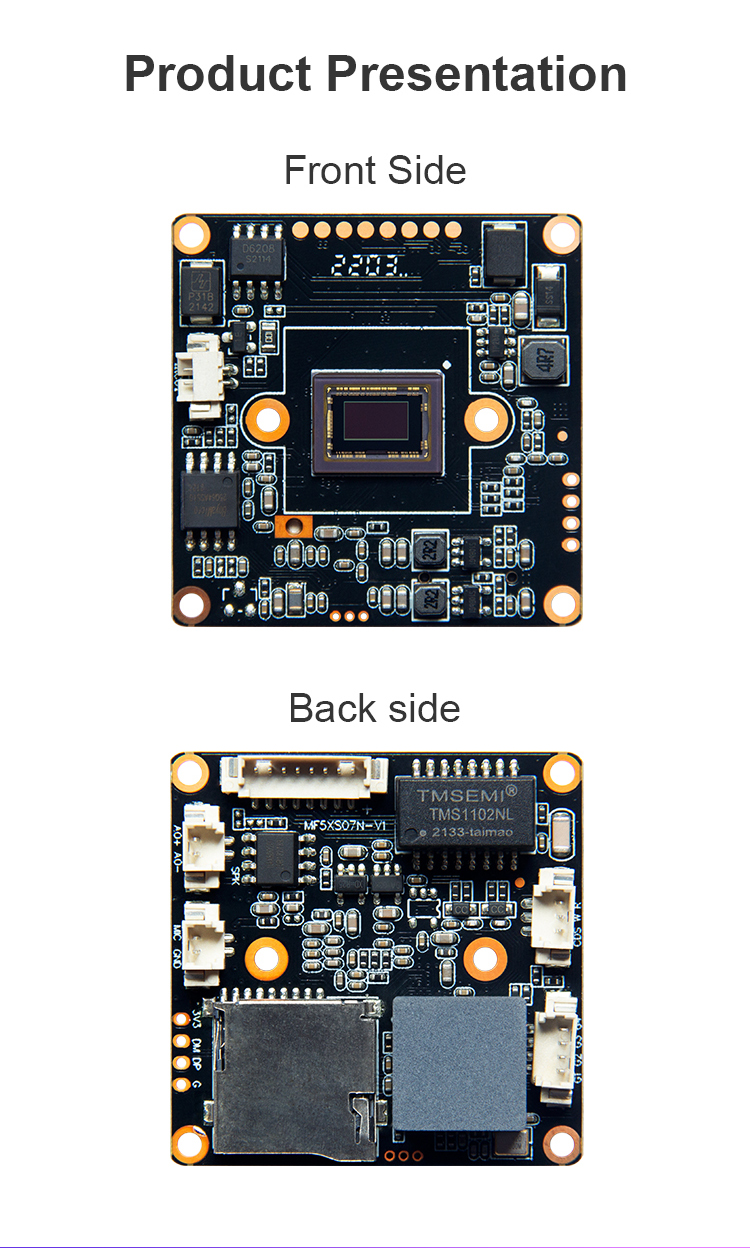

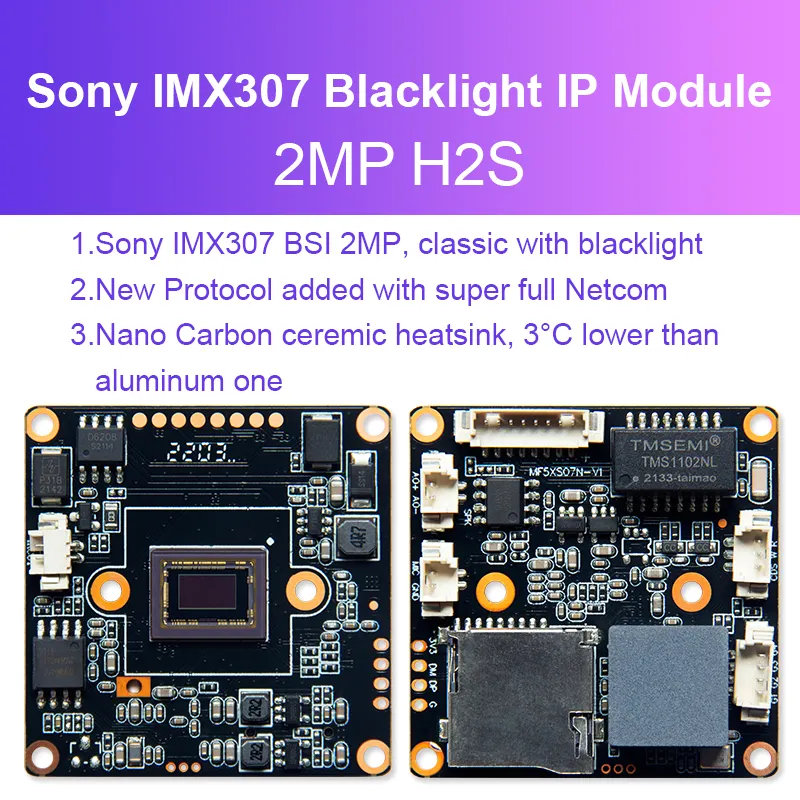

2MP IP Camera Module IMX307 Sensor CCTV IPC Board PCB Camera Module Shenzhen

Product category:

Camera Board

SKU:

200785

Price:

$9.50

Quantity	Price
1 - 999	$9.50
1000 - Unlimited	$9.00

Description

Model No.	H2S
Module	Fullhan 2K DSP+1/2.8" IMX307
LUX	COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Module	Fullhan 2K DSP+1/2.8" IMX307
LUX	COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Coding Format	H.265/H.264
Main Stream	1920*1080，1-30FPS/S
Main Stream	19201080、1280720，1-30FPS/S
Sub Stream	704576、640480、640360、352288，1-30FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name, Date & Time, Resolution & characters adding
Data Record	Video & Picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	ONVIF
Mobile	Support IOS, Android
Browser	Support IE6.0 and above browser (insert Web Server)
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V /120mA
power	1.5W
size	38* 38*10mm (without lens)
Weight	11g
