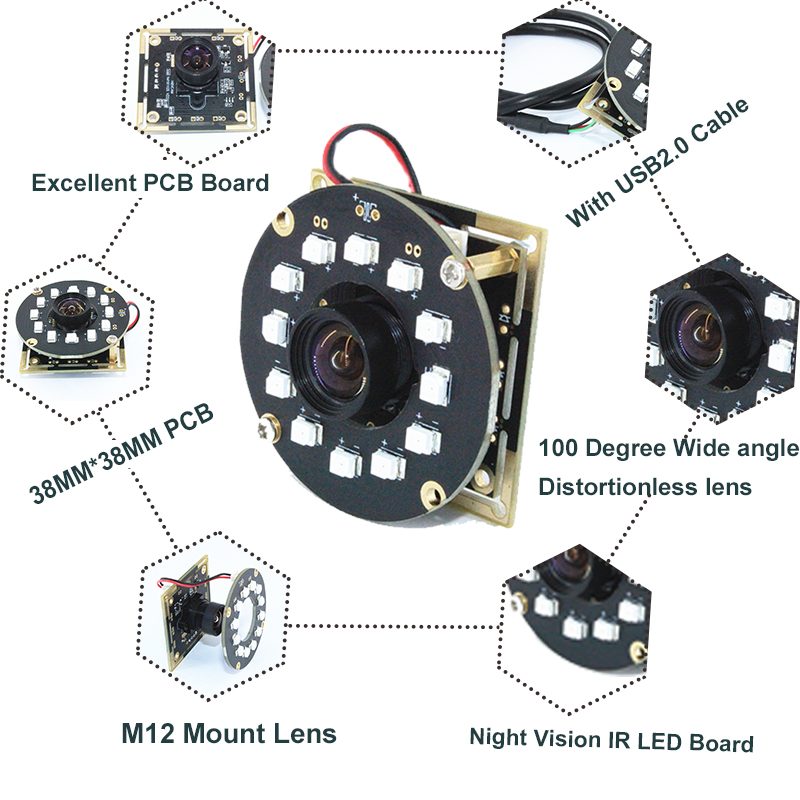

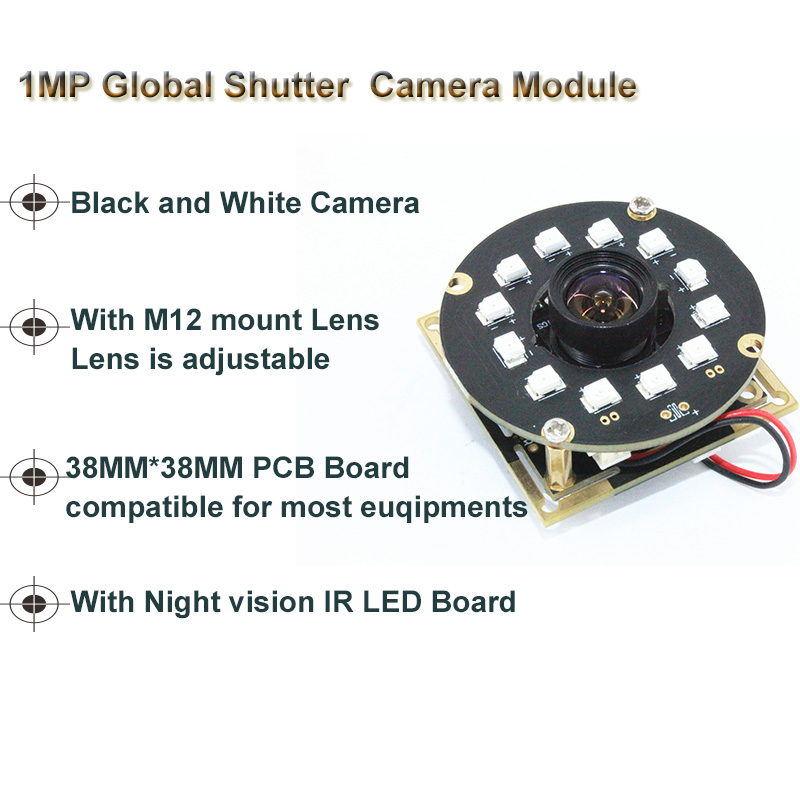

1MP global shutter camera module for Industrial equipment

Product category:

USB Camera Board

SKU:

217167

Price:

$30.00

Description

Product Description

Module No.	BM1M1911GS V22
Module Size	38mm 38mm 16mm±0.5MM
Temperature(Operation)	-30°C -70°C
Temperature(Stable Image)	0°C-50°C
Assembly technique	SMT(ROSH)
Focus	Fixed
Object distance	30cm-infinity
Resolution	600LW/PH(Center)
PCB printing ink	black
Interface	USB2.0
Power supply	USB bus power
Supply Voltage	DC 5V±5%
Maximum Power consumption	1200mW
Operating system request	Win XP/win 7 , 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9281 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	13000mv /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
S/N Ratio	38db
Max Dynamic Range	68db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G+2P
F/No	2.2
EFL	2.1 mm
FOV	95°
TV Distortion	<5.0%
Relative Illumination (Sensor)	70%
IR Filter	850±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/ CE /ROSH
