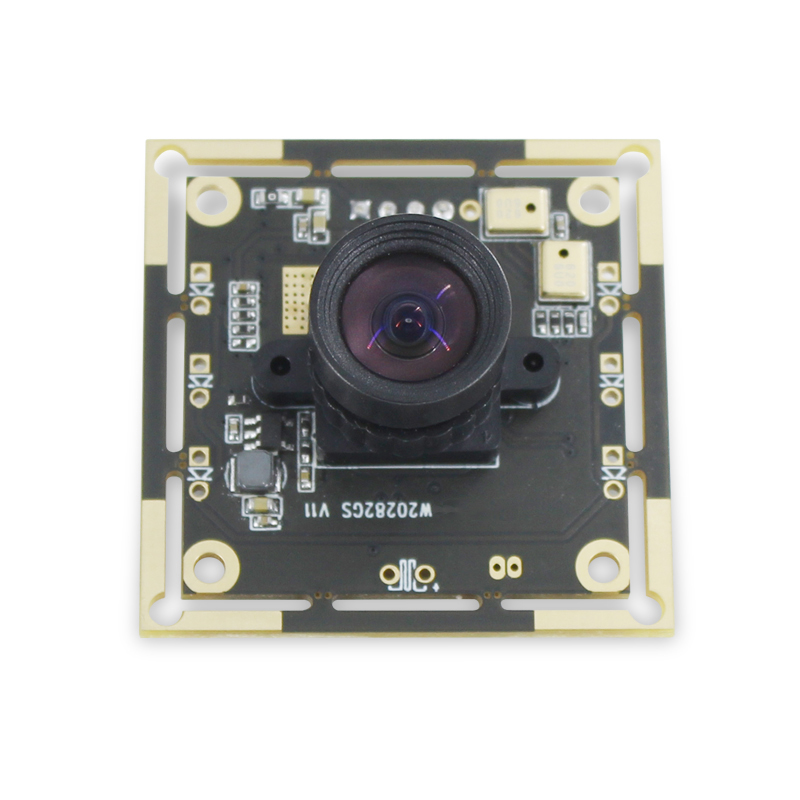

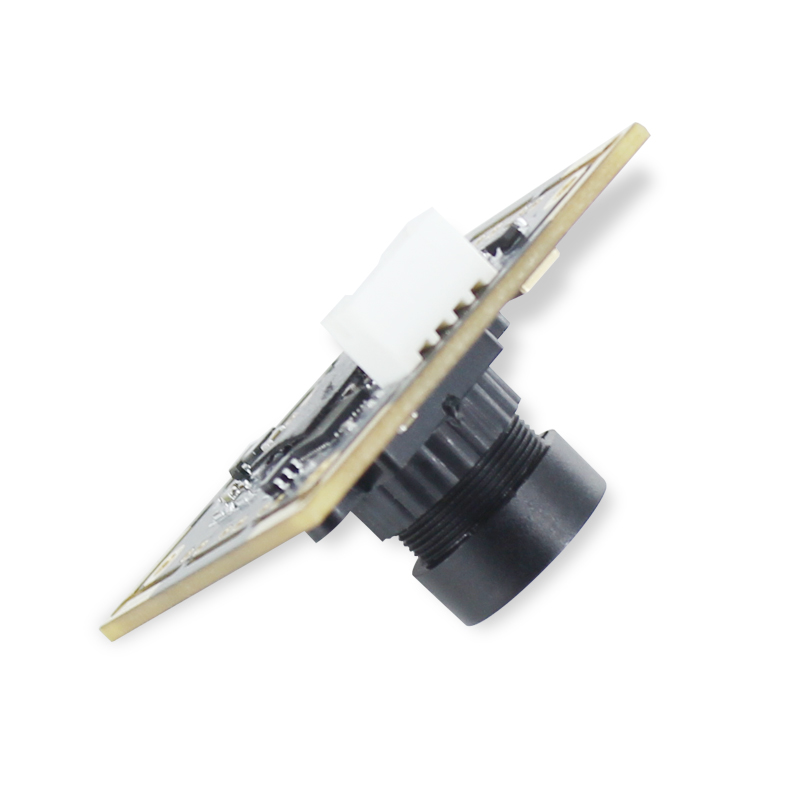

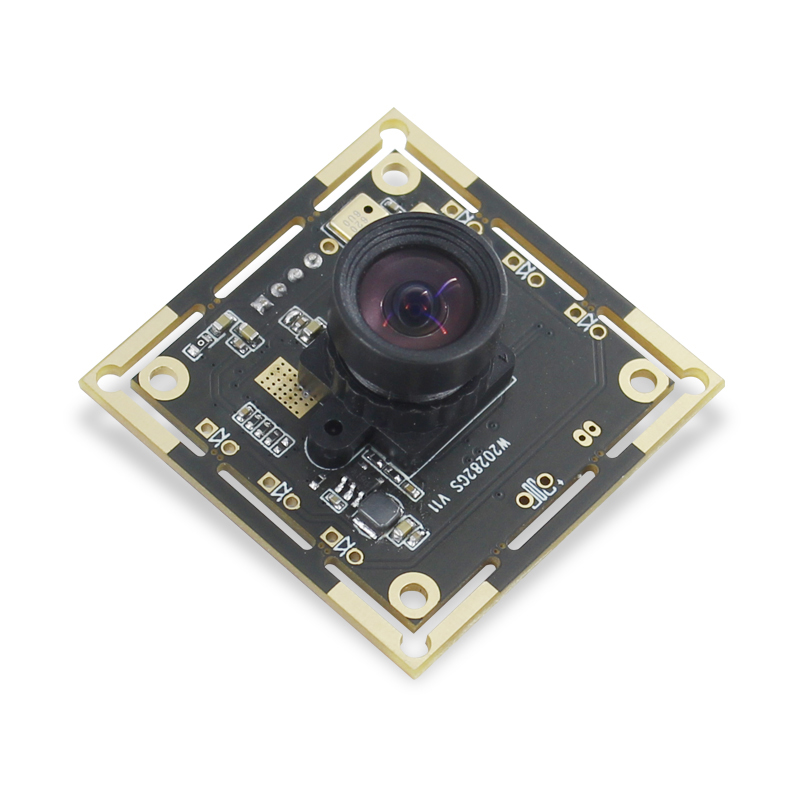

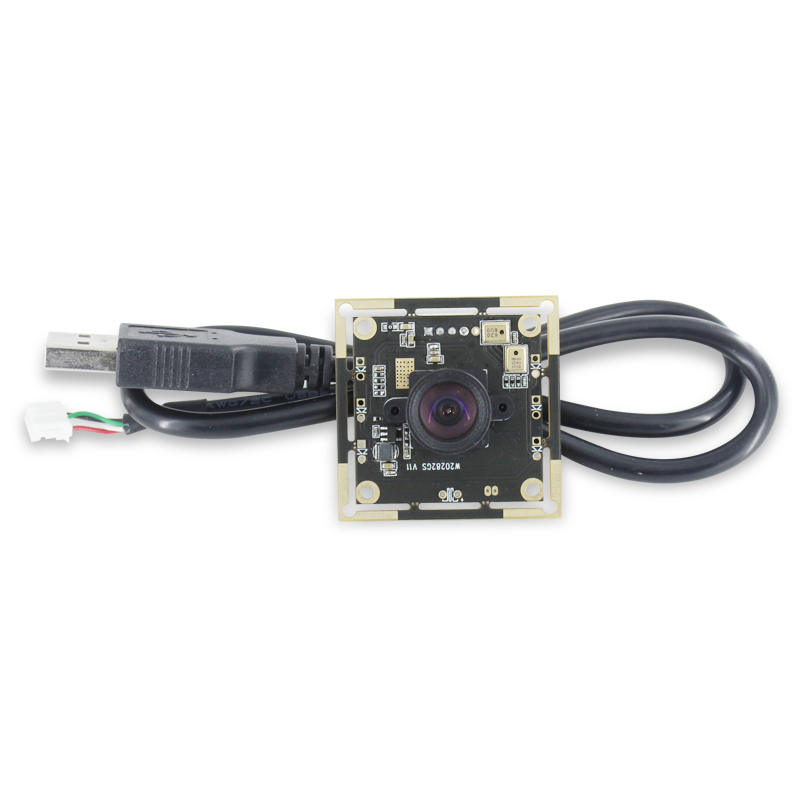

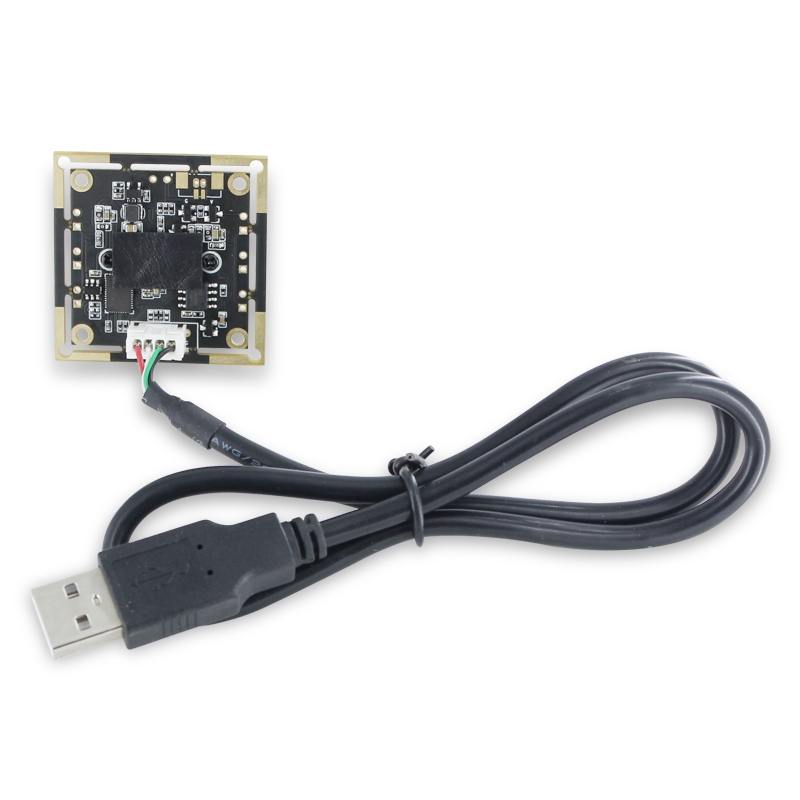

1MP Black & White Global Exposure Camera Module 100 Degree Aberration Free 120FPS Camera Module

Product category:

USB Camera Board

SKU:

216585

Price:

$37.20

Description

Product Name	1MP global shutter camera module
Module No	BMW20282GS V22 - 100

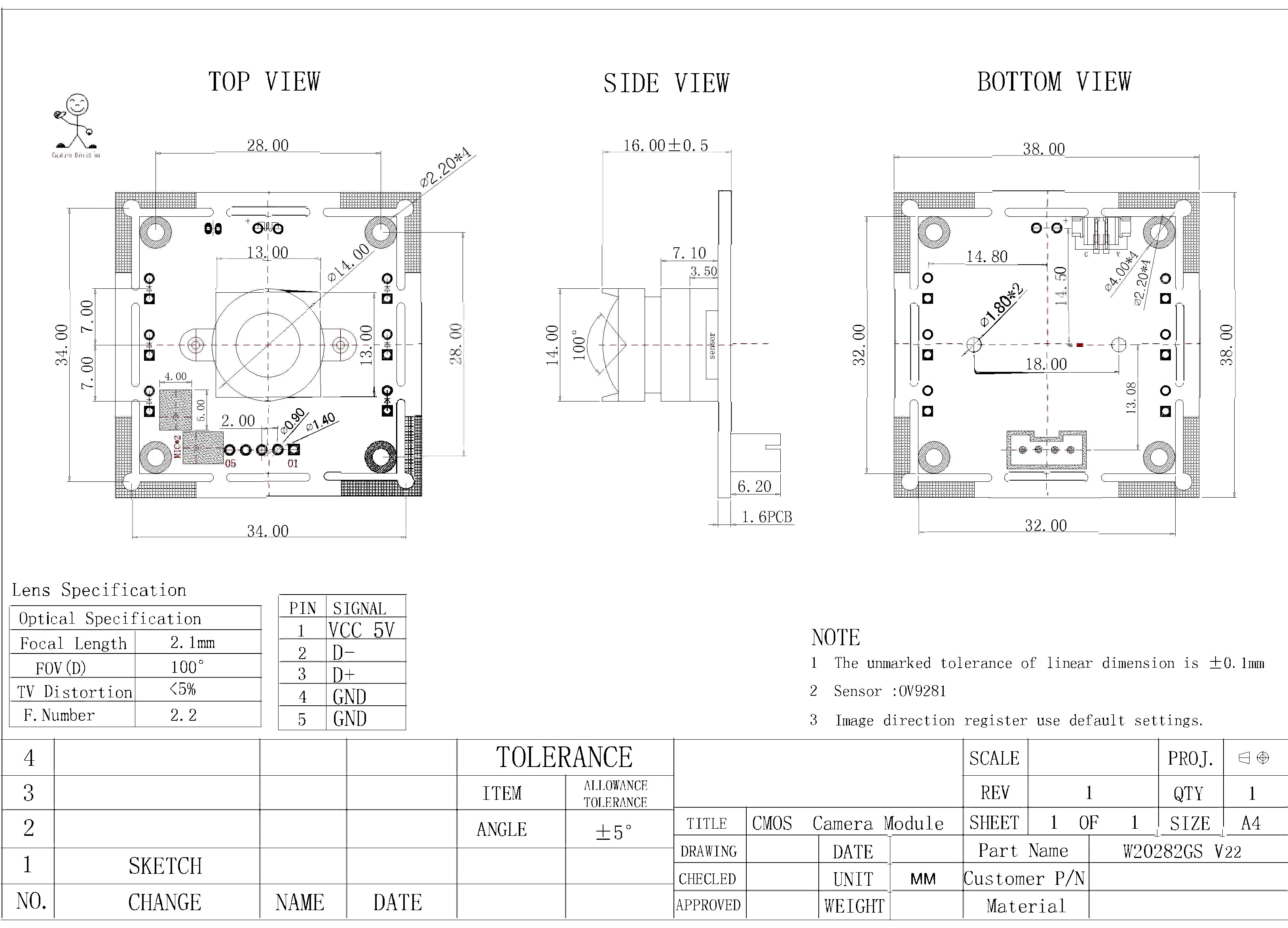

Module Size	38mm × 38mm × 16mm±0.5MM
Features	1.Standard industrial camera structure 38-32 is compatible with 28mm board at the same time 2. Global shutter camera, exposure time can be manually adjusted 3. Mainly used in high-speed scanning and code scanning applications 4. It can be followed by night vision light board 850-940mm
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9281 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	1300mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 1280x720 120FPS /
S/N Ratio	38 db
Max Dynamic Range	68 db
Shutter type	Global shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.2
EFL	2.1 mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	850±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
