1MP 1280*720 30fps Embedded Board Uvc Camera Module For Laptop Or Tablet

Product category:

USB Camera Board

SKU:

216936

Price:

$8.40

Description

Model No.	BM1901-720 V11

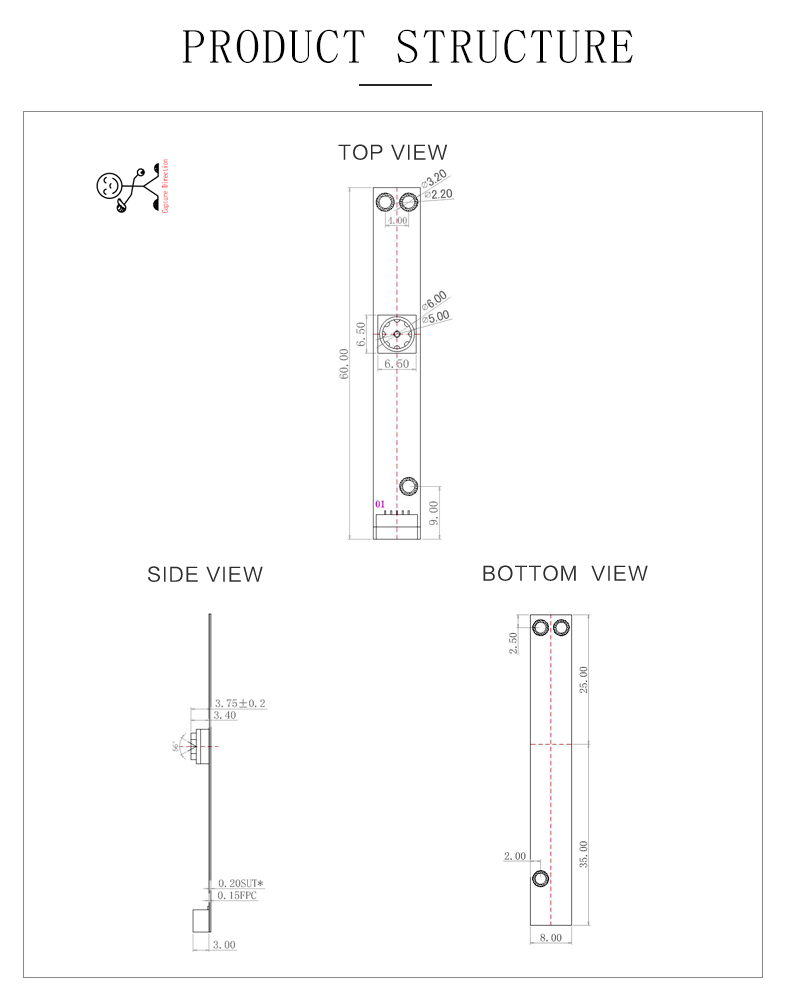

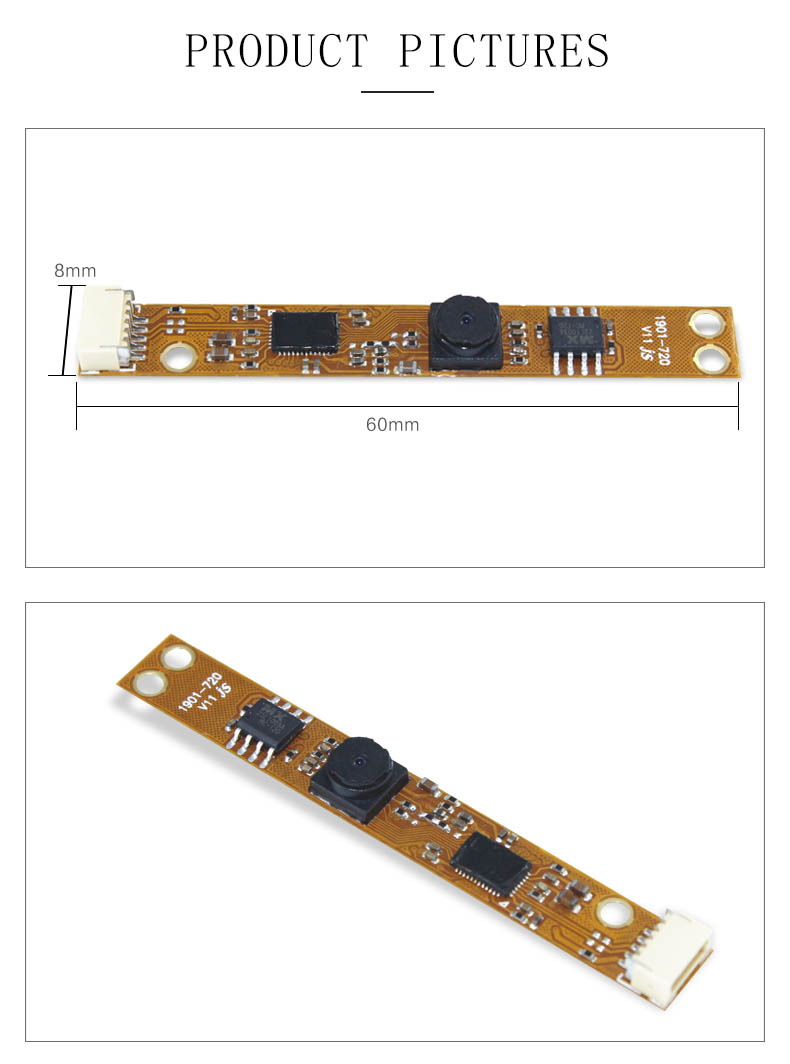

Model Size	60mm × 8mm × 3.75mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9726 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	1300mv /(lux-sec)
Pixel Size	1.75m x 1.75μm
Maximum Image Transfer Rate	MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x720 30FPS / YUY2 960x720 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS
S/N Ratio	36B
Max Dynamic Range	70B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	3P
F/No	2.4
EFL	2.6mm
FOV	56°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

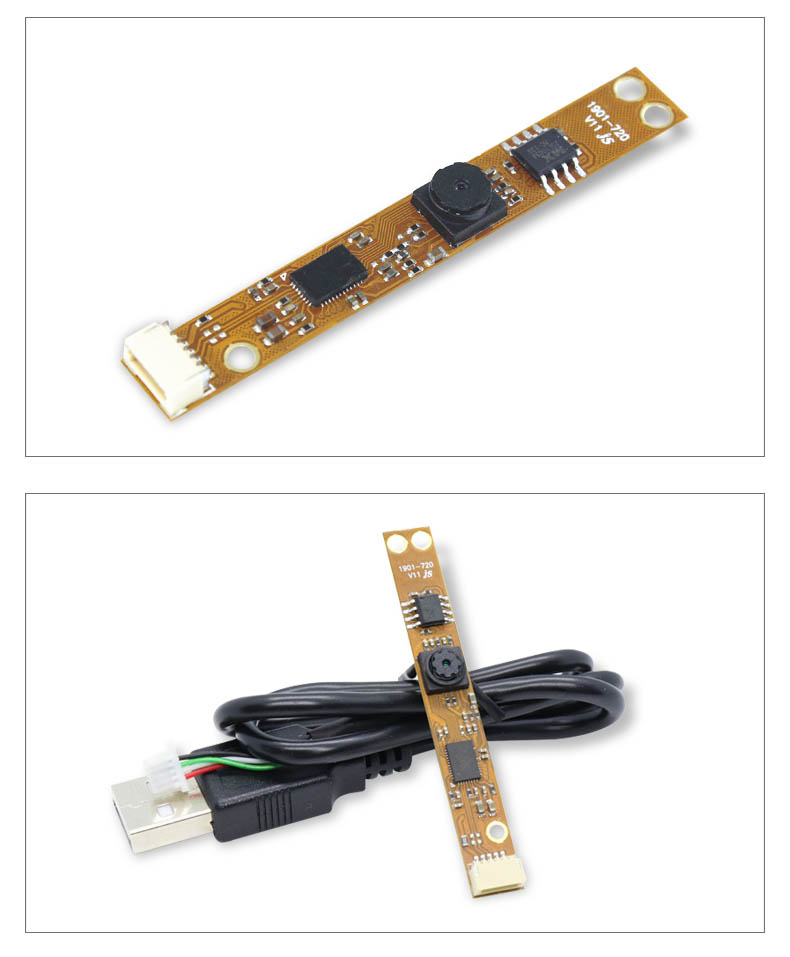

USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
