1/2.7" AR0230 + OV2710 dual sensor 2MP 1080P 30fps USB2.0 UVC Camera YUY2 MJPEG

Product category:

Camera Board

SKU:

U2DS2M01

Video Coding:

Resolution:

Price:

$71.90

Quantity	Price
1 - 9	$71.90
10 - Unlimited	$62.50

Description

Features

2MP 1080P HD USB camera with 1/2.7" AR0230 + OV2710 Sensor
Using MJPEG, YUY2 encoding, has a very good indoor and outdoor effects, vivid colors
Support UVC protocol, free driver, plug and play.
Support windows, linux, Android and other embedded systems.

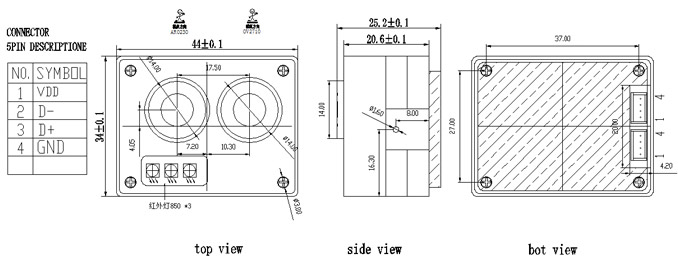

Module No.	U2DS2M01
Module Size	443426mm
Temperature （Operation）	-20 to 70°C
Temperature （Stable Image）	-10 to 60°C
Object distance	10cm - ∞
Resolution	1100LW/H (Center)
Interface	USB2.0 and 1.1
Operating system request	Win2000， Win XP, Win7， Win8， Win10， Linux, Android
Package	Anti-electrostatic tray
Vorking current	<450mA
Sleep model current	<50mA
Sensor Type	AR0230 + OV2710
Active Array Size	1920*1080
Dark current	896mv/s@60°C
Sensitivity	4.0v/(Lux·s)
Pixel size	3.0μm*3.0μm
Maximum Image Transter Rate	19201080 1280720 800600 640480: 30fps
S/N Ratio（maximum）	41db
Dynamic range	UP to 105 db @ 8X gain
Output Format	YUY2 MJPG
Fixed Pattern Noise	<0.03%
