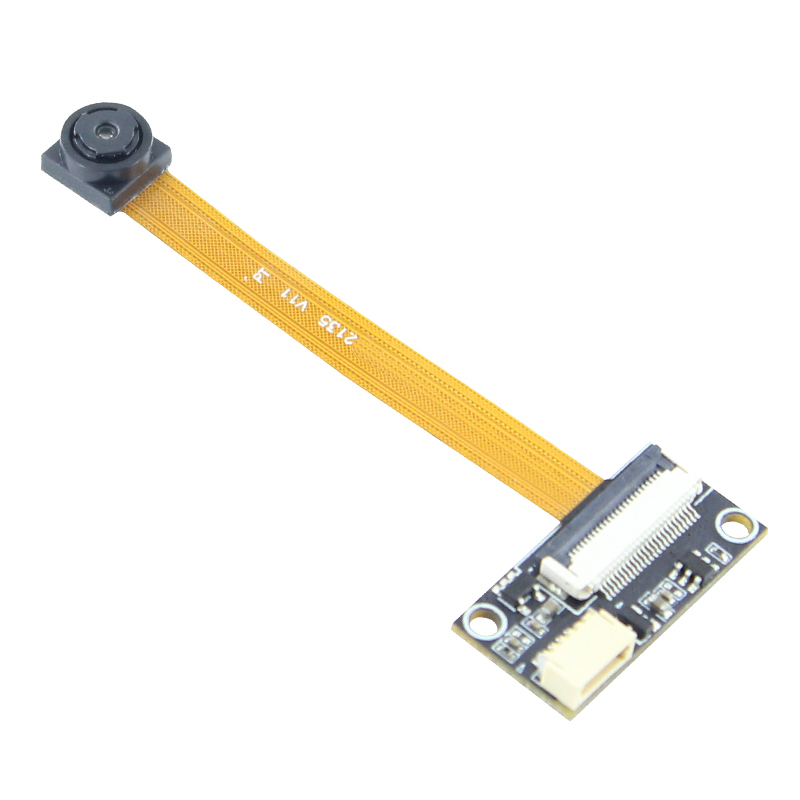

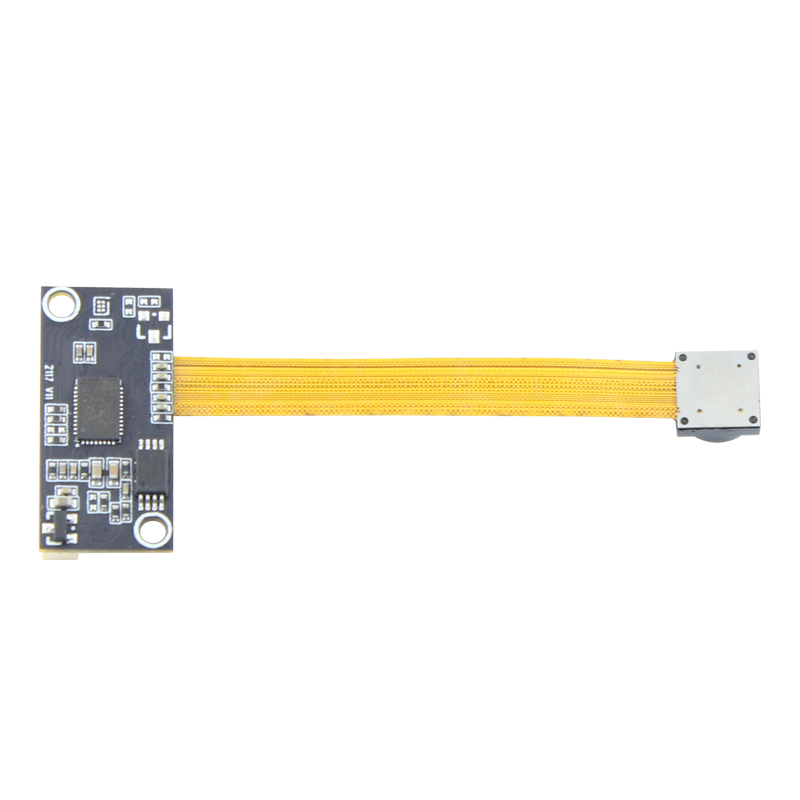

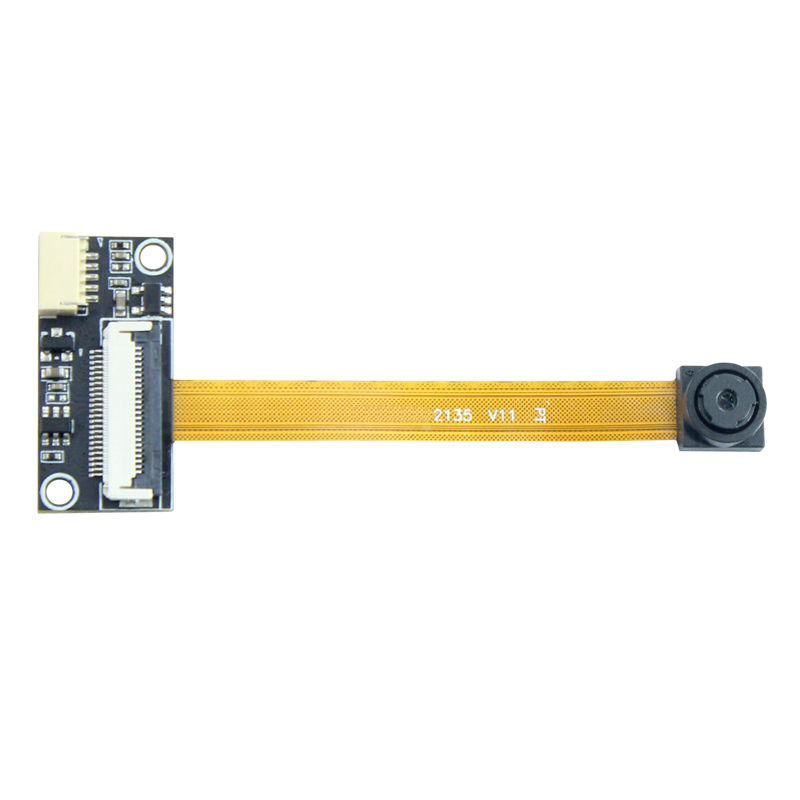

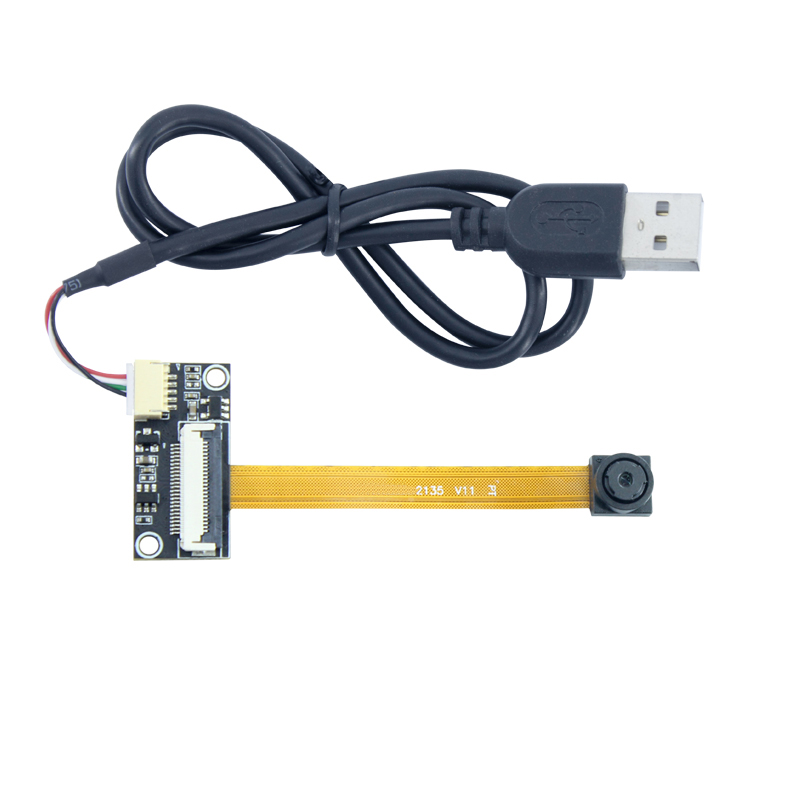

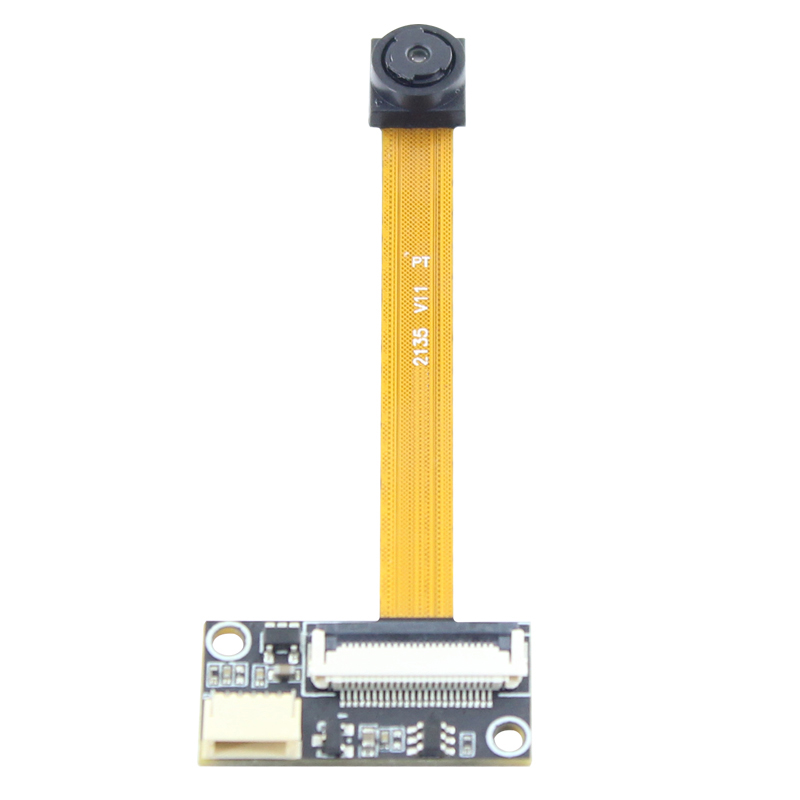

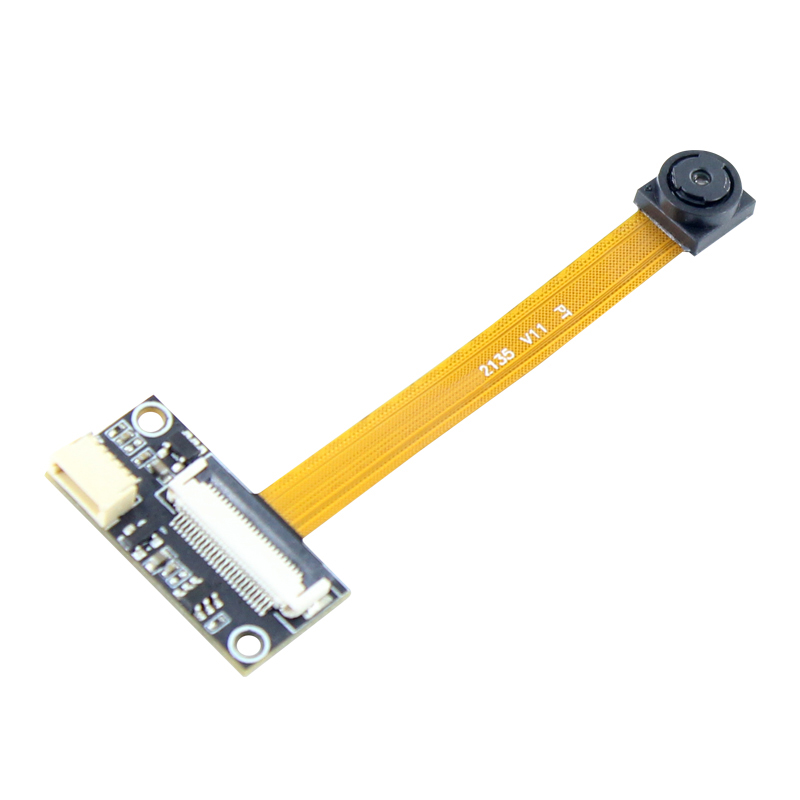

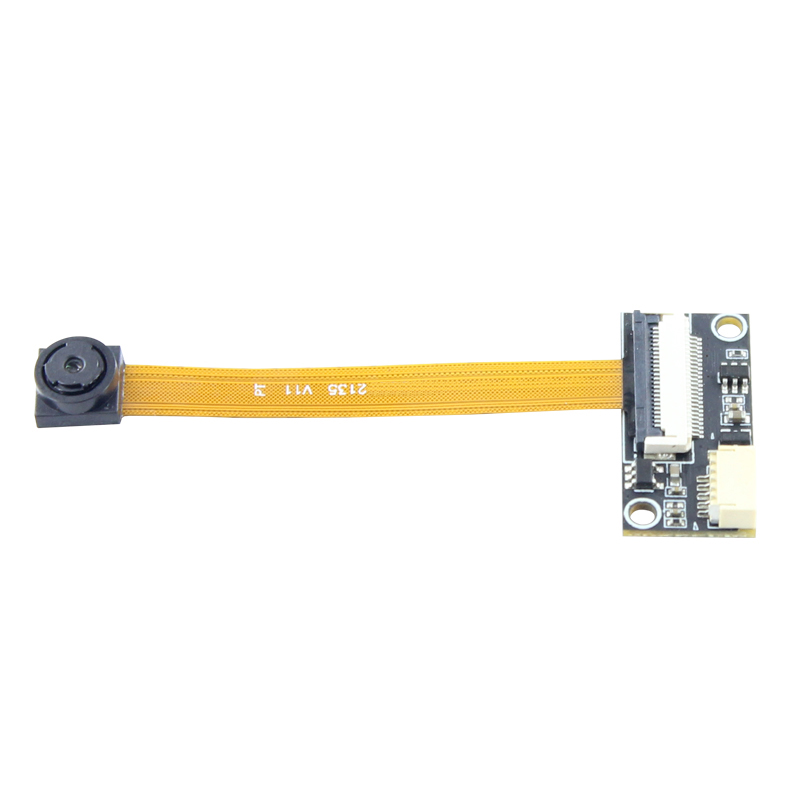

0.3MP global black and white high-speed scanning camera module built-in camera module

Product category:

USB Camera Board

SKU:

216752

Price:

$15.60

Description

Product Name	0.3MP global black and white Camera Module
Module No	BM2117+2135 V11-40
Module Size	67.7MM * 26MM * 5.0MM±0.2MM
Features	1. Flexible structure with split soft and hard boards, small volume - head 8x8mm 2. The FPC part can be customized in length and shape 3. Several specifications of lenses available 4. Can be used for night vision omnidirectional lenses 5. Same structure as 1466
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	380 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	2066mV /（lux-sec）
Pixel Size	2.0µm x 2.0µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
S/N Ratio	39db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.8
EFL	2.6 mm
FOV	40°
TV Distortion	<1.8%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
